RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GWWS4-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
734 | - |
|
Datasheet | 5GW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 4.3, 3.9, 4.7, 3.2, 3.2, 2.5, 3.6, 3.5. 3.3, 3 | -4.1dB, -4.6dB, -3.8dB, -5.6dB, -5.6dB, -7.4dB, -5dB, -5.1dB, -5.4dB, -6dB | 1.7dBi, 2.8dBi, 2.7dBi, 4.4dBi, 4.1dBi, 3.4dBi, 4.9dBi, 4.8dBi, 4.9dBi, 5.2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | 4G, 5G, Cat-M1, CBRS, C-Band, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|
APAM1568YE15V2.0RF ANT 1.575GHZ CER PATCH CAB |
894 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 1.5dBic | - | Cable - 36mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|
ANT-19036EB56RF ANT, ISM-868MHZ, OMNI-DIRECTI |
234 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | 1.17 | -22.05dB | 1.51dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 4.291" (109.00mm) | ISM |
|
APAMS-121RF ANT 2.45GHZ/5.5GHZ WHIP TILT |
1,489 | - |
|
Datasheet | APAMS | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Whip, Tilt | 2 | 2.5 | - | 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.386" (86.00mm) | - |
|
1005392F0-AA10L06005G/4G & DUAL-BAND WI-FI FPC EMBE |
5,845 | - |
|
Datasheet | - | Bulk | Active | WiFi | Wide Band | - | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 5GHz, 4.9GHz ~ 5.85GHz | Flat Patch | 2 | - | - | - | - | Cable - 600mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, Wi-Fi |
|
ANT-W63RPC1-MHF4-100RF ANT WIFI 6GHZ FLEX MHF4 100MM |
3,180 | - |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
FXP831.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
391 | - |
|
Datasheet | Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2.5 | - | 3dBi, 5.5dBi | 2 W | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
|
SRFL029-100RF ANT 748MHZ/892MHZ FLAT PATCH |
10,599 | - |
|
Datasheet | Moseni | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 1.7 | -8dB | 3.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
1000424ON GROUND STAMPED METAL DUAL BAN |
4,362 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.36GHz | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Module | 2 | 2.5 | - | 0.6dBi, 4.5dBi | 2 W | Cable - 100mm | - | - | - | - | Surface Mount | 0.278" (7.07mm) | 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
TG.31.81135G/4G TERMINAL MOUNT |
355 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | -1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 8.295" (210.70mm) | 2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
FXUB66.54.0150CMAXIMUS ULTRA WIDE BAND FLEX ANT |
213 | - |
|
Datasheet | Maximus | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz | Flat Patch | 9 | 1.1, 2, 2.2, 3, 3.5 | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
|
2042870100RF ANT 433MHZ FLAT PATCH U.FL |
158 | - |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | ISM |
|
|
ANT-W63-CW-RCS-RPSWIFI6/6E/7 COMPACT RIGHT ANGLE W |
568 | - |
|
Datasheet | CW-RCS | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2.2, 2.7 | - | 7.7dBi, 5.4dBi, 6dBi | 5 W | - | RP-SMA Female | - | - | - | Connector Mount | 2.126" (54.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W50292.4-2.5 / 5.15-5.925 GHZ STICK A |
798 | - |
|
Datasheet | External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Right Angle | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 3.071" (78.00mm) | DSRC, WLAN, Zigbee™ |
|
W3907BD0100ANTENNA 0.698-3.6GHZ I-PEXMHF4 |
220 | - |
|
Datasheet | GEMINI | Bag | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
W1902RF ANT 850MHZ/900MHZ WHIP RA |
2,701 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|
ANT-916-CW-RCS-SMA915MHZ CCOMPACT RIGHT ANGLE WHIP |
400 | - |
|
Datasheet | CW-RCS | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Right Angle | 1 | 2 | - | 4.8dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | ISM, LoRaWAN, LPWA |
|
|
W1698-MANT EXT ISM868/915/2.4 SMA |
443 | - |
|
Datasheet | Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|
W1076ANT EXT 430-435MHZ SMA MALE |
668 | - |
|
Datasheet | Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 1.5 | - | -4dBi | 5 W | - | SMA Male | IP40 | - | - | Connector Mount | 4.252" (108.00mm) | ISM |
|

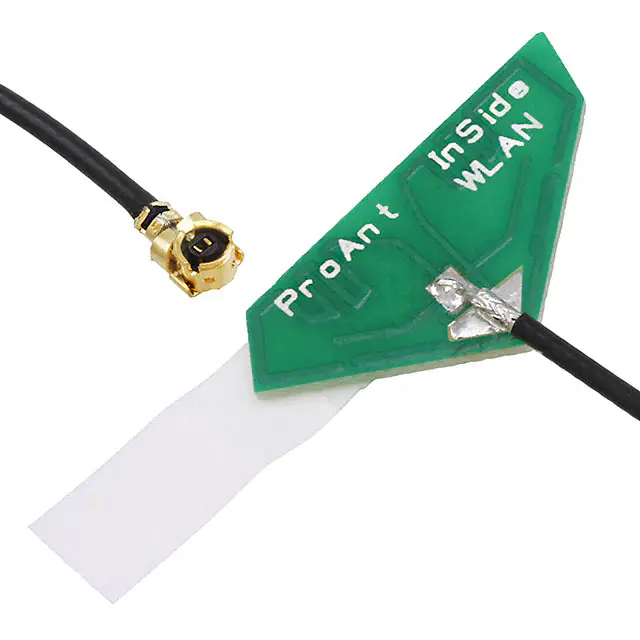

PRO-IS-299RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
260 | - |
|
Datasheet | Embedded Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
