RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB2471A3S-10MHF1ANT EMBD FLXPIFA 6E MHF1 |
344 | - |
|
Datasheet | FlexPIFA™ 6E | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | PCB Trace | 3 | 2.5, 3, 3 | - | 2.1dBi, 3.2dBi, 3.3dBi | 5 W | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | WLAN |
|
ANT-GNCP-TH258L15RF ANT GNSS PATCH L1 L5 25MM PIN |
250 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.5808GHz | 1.17GHz ~ 1.183GHz, 1.5531GHz ~ 1.6086GHz | Ceramic Patch | 2 | 5.9, 6.4 | - | 1dBi, 5.6dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
YE0037AAMAG MNT ANTENNA 5G 1M SMA M |
640 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 2.85GHz | 700MHz ~ 5GHz | Whip, Straight | 1 | 2.5 | - | 2dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Magnetic | 3.465" (88.00mm) | 2G, 3G, 4G, 5G |
|
|
YEWT004AATERMINAL ANT WIFI DUAL BAND SMAM |
305 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.125GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 7.15GHz | Whip, Right Angle | 2 | 3 | - | 6.6dBi, 6.6dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 4.291" (109.00mm) | Wi-Fi |
|
|
YE0012AALTE EXT ANTENNA SMA ADHESIVE |
264 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 892MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 824MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Module | 10 | 3 | - | 3dBi, 5.35dBi, 5.35dBi, 5.35dBi, 3.3dBi | - | Cable - 250mm | SMA Male | IP53 | - | - | Adhesive | 0.220" (5.60mm) | LTE |
|
W3525B039RF ANT 2.4GHZ PCB TRACE CAB SMD |
377 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|
FLEXI-SMA-433RF ANT 433MHZ WHIP STR SMA MALE |
341 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 6.496" (165.00mm) | - |
|
2367286-1LTE ANTENNA COTS FPC ASSY 200MM |
562 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | LTE, UMTS, WCDMA |
|
W1095KANT EXT 2.4-2.5GHZ RA SMA IP65 |
1,427 | - |
|
Datasheet | External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
9001815F0-AC10L01005G & NB-IOT FPC EMBEDDED ANTENNA |
923 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 789MHz, 2.052GHz, 3.6GHz, 5.5GHz | 617MHz ~ 960MHz, 1.415GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 4 | 2.2, 2.6, 3.8, 7.2 | - | 1.5dBi, 4.65dBi, 3.84dBi, 4.84dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | - | LoRa, LTE, Sigfox |
|
TI.08.C.0111868MHZ TERMINAL ANTENNA 0DBI SMA |
152 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | - | - | -1.7dBi, 2.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | ISM |
|
ANT-W63-FPC2-UFL-100RF ANT WIFI 6GHZ FLEX ADHES UFL |
1,667 | - |
|
Datasheet | FPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 1.4, 2.4 | -7.7dB, -15.6dB, -7.7dB | 3.2dBi, 7.7dBi, 8.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
APAMS-118RF ANT 900MHZ WHIP TILT SMA MALE |
353 | - |
|
Datasheet | APAMS | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 890MHz ~ 960MHz | Whip, Tilt | 1 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.256" (108.10mm) | - |
|
|
ANT-20090EB56RF ANT, LORA& WIFI 2.4, OMNI-DIR |
226 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 3 | 1.7, 2 | -11.4dB, -11.1dB, -10dB | 2.5dBi, 3.4dBi, 2dBi, 2.7dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 1.913" (48.60mm) | Bluetooth, Wi-Fi |
|
|
ANT-20284EB56RF ANT, 4G/3G/2G/NB-IOT, OMNI-DI |
108 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 5, 10 | -1.5dB, -3.5dB | -4dBi, 3dBi, -0.5dBi, 3.5dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 1.913" (48.60mm) | 2G, 3G, 4G |
|
ANT-4COIL20433MHZ COIL ANTENNA 20.5X5MM +2. |
333 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433.92MHz | 428.92MHz ~ 438.92MHz | Helical | 1 | 3 | - | 2.5dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | - |
|

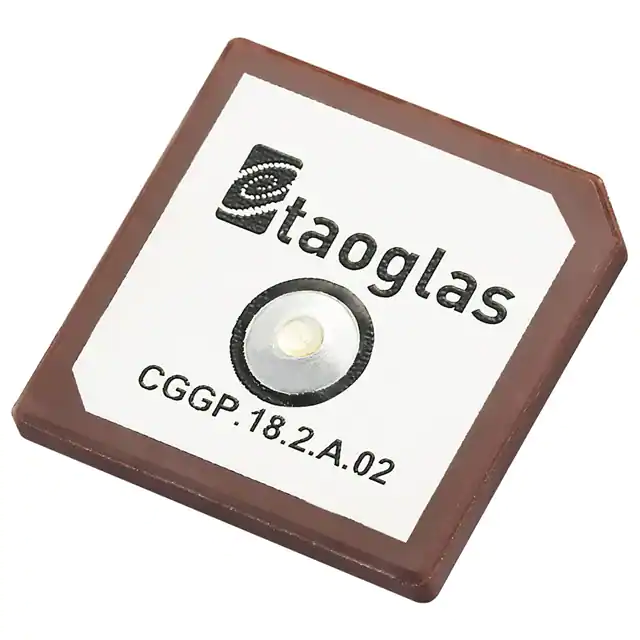

CGGP.18.2.A.02RF ANT 1.575/1.602GHZ CER PATCH |
894 | - |
|
Datasheet | - | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.61GHz | Ceramic Patch | 2 | - | -10dB | 3.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|

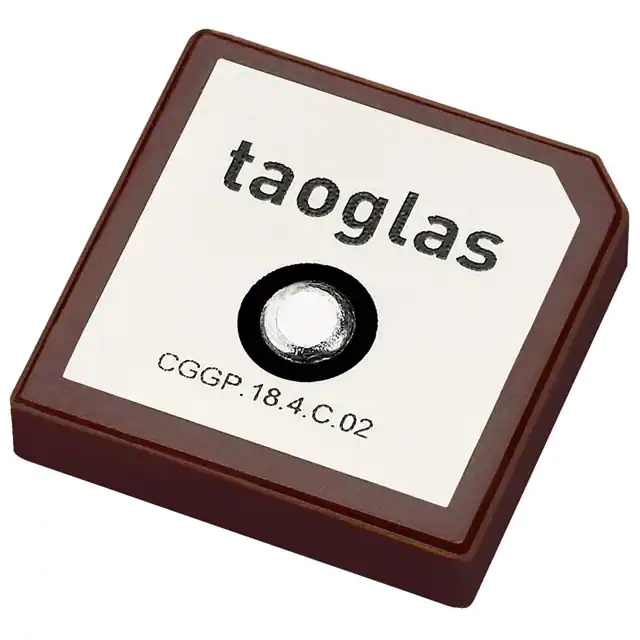

CGGP.18.4.C.02RF ANT 1.575/1.602GHZ CER PATCH |
853 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 2.4 | -7.6dB | 3dBi | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GLONASS, GPS |
|

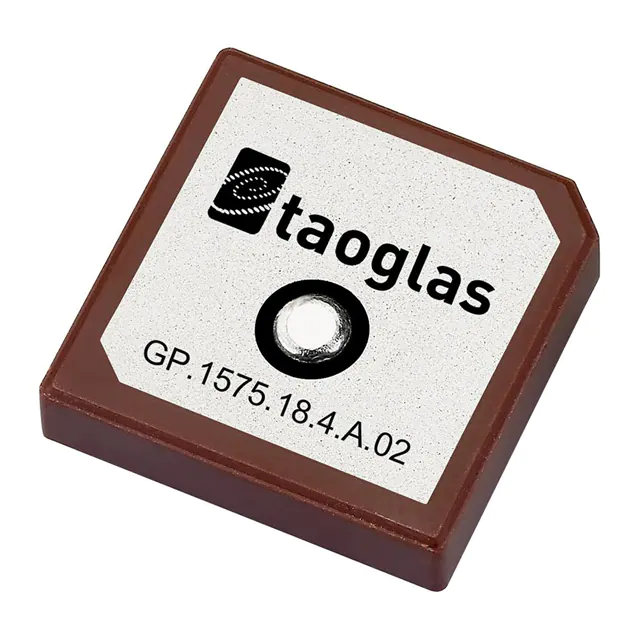

GP.1575.18.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
341 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | 2.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
X000016ANTENNA GSM |
114 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
