RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2U64U1H2B0200868MHZ ISM 863-870MHZ TELA CERAM |
9,440 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
.jpg "W3211")
|
W3211ANT CER 902-928MHZ 10X3.2X5MM |
1,297 | - |
|
Datasheet | Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | -3dB, -10dB | 1.35dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
H2UB6D1K1B0100PILLAR CHIP ANTENNA WIFI/BT 2400 |
16,895 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | -0.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM, Wi-Fi, Zigbee™ |
|
EBL2400A1-10MH4LRF ANT 2.45GHZ IPEX SMD 100MM |
1,758 | - |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 2.5 | - | 2dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.032" (0.81mm) | Bluetooth, 802.11a/b/g |
|
74889102450WE-MCA SMT-MULTILAYER CHIP ANTEN |
4,736 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
ANT5320LL04R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
15,668 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz | Chip | 2 | - | -6.5dB | 2.09dBi, 4.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.055" (1.40mm) | Wi-Fi |
|
ACR0301UUWB ANT 6.24GHZ- 8.5GHZ SMD CHIP |
317 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 7.37GHz | 6.24GHz ~ 8.5GHz | Chip | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|
W3000RF ANT 868MHZ/1.575GHZ CHIP SLD |
1,475 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 868MHz, 1.575GHz, 2.4GHz | 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz | Chip | 3 | - | -10dB, -12dB, -12dB | -1.4dBi, 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
2108792-6FPC ANT, MHF 4L, 50MM, WI-FI 6E |
4,004 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

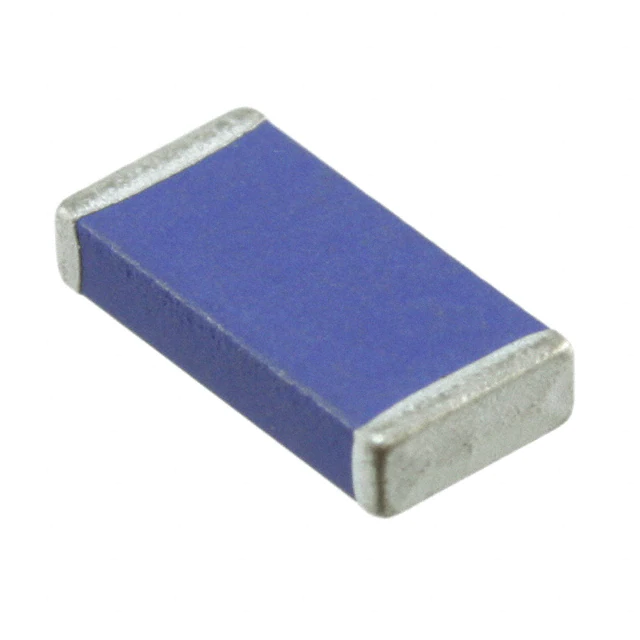

ANT6230LL01R1575ARF ANT 1.575GHZ CHIP SOLDER SMD |
1,750 | - |
|
Datasheet | 6230 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.548GHz ~ 1.602GHz | Chip | 1 | - | -10dB | 2.52dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | GPS |
|
|
YF0023AAFLEX PCB ANTENN WIFI 6 100MM UFL |
3,310 | - |
|
Datasheet | - | Bulk | Not For New Designs | Cellular, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -8.8dB | 5dBi, 5dBi, 5dBi | - | - | - | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
W3073RF ANT 850MHZ/900MHZ CHIP SLD |
1,259 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, General ISM | Wide Band | 859MHz, 1.8GHz, 1.9GHz, 2.05GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Chip | 4 | - | -4.7dB, -3.5dB, -5.9dB, -3.3dB | 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM, PCS, WCDMA |
|
21199601005.9GHZ FLEXIBLE ANTENNA WITH CAB |
12,015 | - |
|
Datasheet | 211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | PCB Trace | 1 | - | -10dB | 5.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ACAG0301-24505500-TRF ANT 2.4GHZ/5.5GHZ CHIP SLD |
14,052 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -7dB | 2.23dBi, 4.05dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi |
|
ANT-868-VHETHRF ANT 868MHZ MON HELICAL SLD TH |
520 | - |
|
Datasheet | VHETH | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.7 | -6.8dB | -0.7dBi | 15 W | - | Solder | - | - | - | Through Hole | 0.280" (7.00mm) | ISM, LoRaWAN |
|
|
W3961B0050ANT CBRS FPC 3550-3980MHZ 50MM |
949 | - |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
|
W3961B0100ANT CBRS FPC 3550-3980MHZ 100MM |
947 | - |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
2108851-1CHIP ANT., SMD, UWB 5900-8300MHZ |
3,283 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | UWB | SHF (f > 4GHz) | 7.1GHz | 5.9GHz ~ 8.3GHz | Chip | 2 | 2.1 | - | 4.1dB | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
|
H2UJ6V1A2A0100GNSS 1560-1606 MHZ WIDE BAND TEL |
6,004 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Chip | 1 | 2 | - | 2.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GLONASS, GNSS, GPS |
|
2195852-1PCB ANT, 5G-2G CAT-M, WORLD BAND |
4,643 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 6 | 3 | - | 4.5dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
