RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108792-2FPC ANT, MHF, 50MM, WI-FI 6E TRI |
3,414 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-403-USP-TRF ANT 403MHZ CHIP SOLDER SMD |
12,654 | - |
|
Datasheet | microSplatch™ | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 406MHz | Chip | 1 | 2 | - | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | MICS |
|
2195851-1PCB ANT, TAB MOUNT, 698-71250MHZ |
4,225 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 3 | - | 4.6dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
|
YCGA002AAPATCH, GNSS L1, PIN MNT, 1212 |
4,652 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS, GPS |
|
|
YG0038AAPATCH, GNSS L1, PIN MNT, 13X13 |
3,751 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS, GPS |
|
|
YG0046AAPATCH, GNSS L1, PIN MNT, 18X18 |
1,150 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz | Ceramic Patch | 2 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | BeiDou, Galileo, GNSS, GPS |
|
SR4C033-LRF ANT CHIP SOLDER SMD |
2,927 | - |
|
Datasheet | Latona | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | - | 791MHz ~ 960MHz | Chip | 1 | 2.6 | -9dB | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|

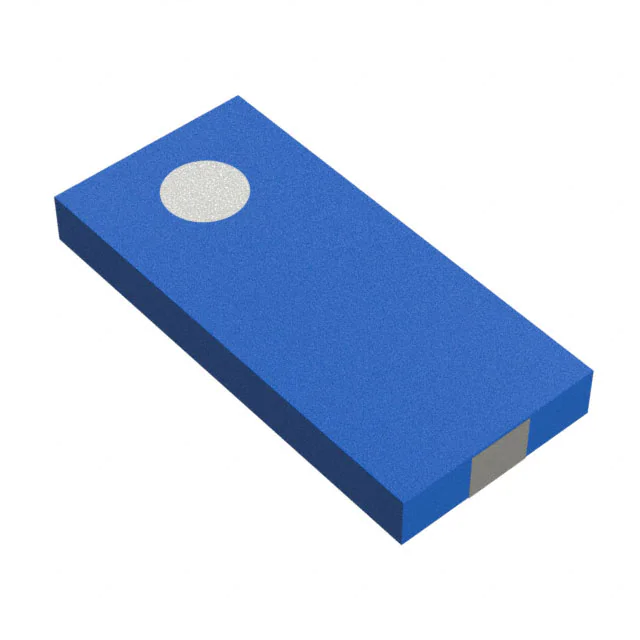

ANT7836LL15R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
7,174 | - |
|
Datasheet | 7836 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 4.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2108965-2FPC ANT, MHF, 100MM, UWB 6~8.5 G |
2,447 | - |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2.1 | - | 4dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
2344657-6WLAN DUAL BAND ANTENNA FPC H 100 |
3,448 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2108792-5FPC ANT, MHF, 200MM, WI-FI 6E TR |
1,816 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3108RF ANT 2.4GHZ HELICAL SOLDER SMD |
1,510 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Helical | 1 | - | -8dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.217" (5.50mm) | - |
.jpg "W3214")
|
W3214ANT CER 863-873MHZ 10X3.2X5MM |
1,065 | - |
|
Datasheet | Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | - | -5dB, -20dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
7488920245RF ANT 2.4GHZ CHIP SOLDER SMD |
402 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.3dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, GSM, WLAN |
|
|
W3043RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
992 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.483GHz | Chip | 2 | - | -15dB, -12dB | 0.35dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
AN012400C00R3200METAL SMD ANT 2.4GHZ |
871 | - |
|
Datasheet | AN012400C00 | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|
2108792-9FPC ANT, MHF 4L, 200MM, WI-FI 6E |
2,089 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SR4L054LEPIDA LTE ANTENNA |
2,759 | - |
|
Datasheet | Lepida | Tape & Reel (TR) | Active | Cellular | Wide Band | 657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Chip | 7 | 1.8, 2.1, 2.2, 2.5, 3.8 | -5dB, -6dB, -10dB | 0.5dBi, 1dBi, 2.5dBi, 1.6dBi, 0.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 4G, 5G, GSM, LTE, WCDMA |
|
W3329ANT EMBD 868MHZ FR4 |
714 | - |
|
Datasheet | Domino | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Chip | 1 | 2 | -10dB | 0.17dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | ISM |
|
ANT-GNL1-NSPGNSS L1 LINEAR PCB CHIP ANTENNA, |
2,850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Chip | 3 | 1.3, 1.4 | -15.6dB, -18.7dB | 4.4dBi, 4.4dBi, 3.6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Beidou, Galileo, GLONASS, GPS |
