RF Directional Coupler
Browse available RF Directional Coupler components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCW-11-722+RF DIR CPLR 2.4GHZ-7.2GHZ 0603 |
3,428 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 7.2GHz | 13dB | Cellular, PCS | - | 1W | - | 17dB | 0603 |
|
X3C09P2-03SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
9,443 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | AMPS, CDMA, WCDMA | 0.2dB | 187W | 23dB | 24.9dB | 4-SMD |
|
BDCN-10-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
9,152 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 11.7 ± 0.5dB | CDMA, PCS, DCS | - | 15W | - | 38.44dB | - |
|
|
BDCN-17-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
5,468 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 18.3 ± 0.6dB | CDMA, PCS, DCS | - | 16W | - | 30.6dB | - |
|
|
BDCN-7-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
4,339 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 10 ± 0.4dB | CDMA, PCS, DCS | - | 15W | - | 38.65dB | - |
|
|
BDCN-14-342+RF DIR CPLR 1.7GHZ-3.4GHZ 6SMD |
3,657 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 3.4GHz | 15.5dB | CDMA, PCS, DCS | - | 1W | - | 47.7dB | - |
|
|
BDCN-20-13+RF DIR COUPLER 360MHZ-1GHZ 6SMD |
2,104 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 360MHz ~ 1GHz | 24dB | General Purpose | - | 16W | - | 35dB | - |
|

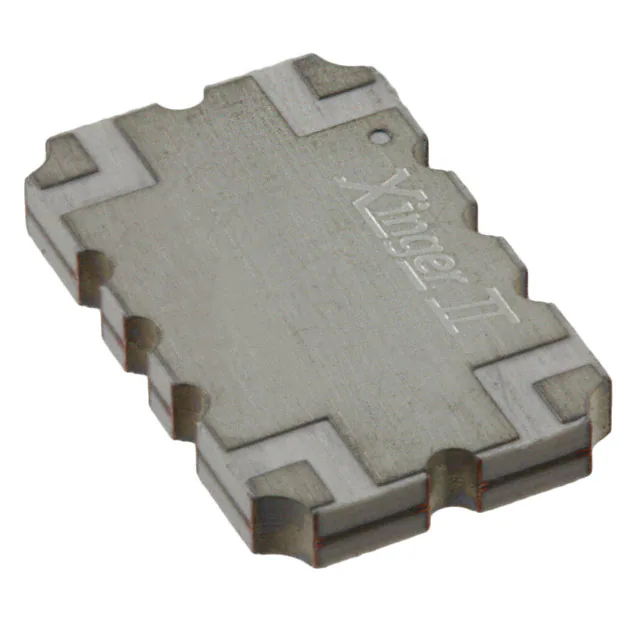

XC0900A-03SRF DIR COUPLER 811MHZ-1GHZ SMD |
925 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 811MHz ~ 1GHz | 3dB | AMPS | 0.15dB | 175W | 23dB | 24.9dB | SMD |
|

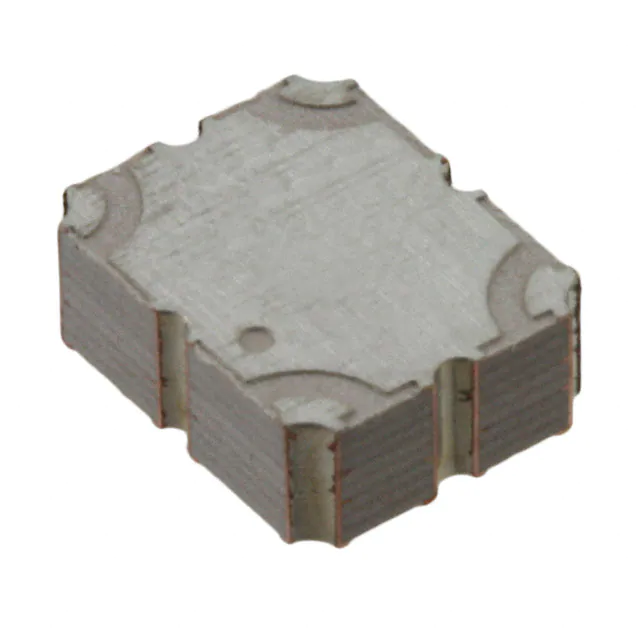

X3C19P2-30SRF DIR COUPLER 1.4GHZ-2.7GHZ SMD |
3,110 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2.7GHz | 30.4dB | DCS, LTE, PCS, WCDMA | 0.1dB | 200W | - | 24.9dB | SMD |
|
11305-3SRF DIR COUPLER 1GHZ-2GHZ SMD |
595 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | - | General Purpose | 0.45dB | 60W | 20dB | - | - |
|

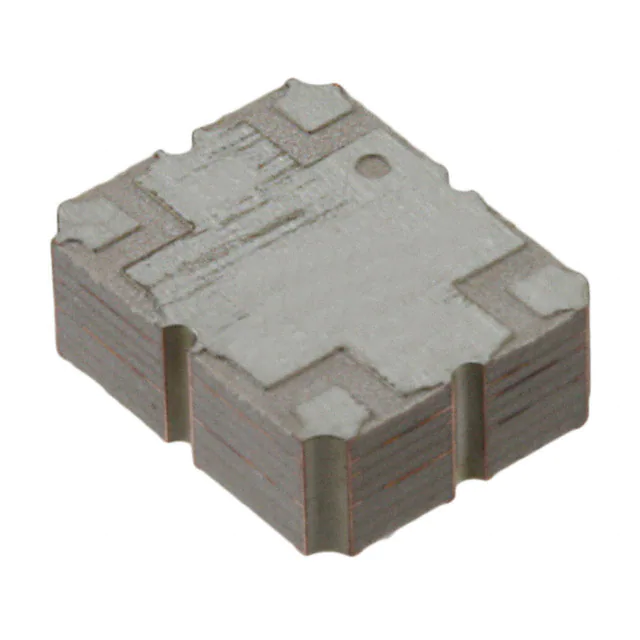

X3C09P2-30SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
3,533 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 30.2dB | AMPS, CDMA, WCDMA | 0.1dB | 225W | - | 24.9dB | 4-SMD |
|
X3C19E2-20SRF DIR COUPLER 1.4GHZ-2.7GHZ SMD |
819 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2.7GHz | 20.3dB | DCS, PCS, WCDMA | 0.1dB | 225W | - | 24.9dB | SMD |
|
|
XC0900A-10SRF DIR COUPLER 800MHZ-1GHZ SMD |
7,660 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 10dB | General Purpose | 0.16dB | 250W | - | - | - |
|
X3C22E1-03SRF DIR COUPLER 1.7-2.7GHZ 4SMD |
3,162 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2.7GHz | - | General Purpose | 0.15dB | 160W | 23dB | - | 4-SMD |
|
|
11303-3RF DIR COUPLER 380MHZ-520MHZ SMD |
2,025 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 380MHz ~ 520MHz | - | General Purpose | 0.35dB | 125W | 20dB | - | - |
|
|
XC0450L-03SRF DIR COUPLER 410MHZ-480MHZ SMD |
3,857 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 410MHz ~ 480MHz | - | General Purpose | 0.2dB | 200W | 23dB | - | - |
|
|
11305-10RF DIR COUPLER 1GHZ-2GHZ SMD |
2,134 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | 10dB | General Purpose | 0.35dB | 60W | - | 20.8dB | SMD |
|
XC1500A-20SRF DIR COUPLER 1GHZ-2GHZ SMD |
347 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | 20dB | General Purpose | 0.19dB | 160W | - | - | SMD |
|
MACP-010571-TR1000RMS POWER DETECTOR 2-6 GHZ |
2,732 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2GHz ~ 6GHz | - | General Purpose | 0.26dB | 30dBm | - | 30dB | 6-TDFN (1.5x1.2) |
|
RBDC-20-63+20 DB SMT RF TAP COUPLER, DC |
427 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 0Hz ~ 6GHz | 20dB | LTE, PCS, WiMAX | 1.1dB | - | - | 20dB | - |
RF Directional Coupler FAQ
What RF Directional Coupler components can I source from EGOO?
You can browse available RF Directional Coupler product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Directional Coupler parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
