RF Directional Coupler
Browse available RF Directional Coupler components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "C0810J5003AHF")
|
C0810J5003AHFRF DIR COUPLER 800MHZ-1GHZ 0805 |
30,247 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | CDMA, WCDMA | 0.5dB | 4W | 23dB | 31dB | 0805 (2012 Metric) |
|
|
C5060J5003AHFRF DIR CPLR 5-6GHZ HY 90DEG 0805 |
20,692 |
1+：$0.94000 10+：$0.80500 25+：$0.75920 100+：$0.69550 250+：$0.65740 500+：$0.63040 1000+：$0.60493 |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 4.5GHz ~ 6GHz | 3dB | General Purpose | 0.2dB | 4W | 27dB | 26dB | 0805 |
|
|
C1517J5003AHFRF DIR COUPLER 1.5-1.7GHZ 0805 |
14,742 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1.5GHz ~ 1.7GHz | 3dB | General Purpose | 0.2dB | 4W | 28dB | 25dB | 0805 |
|
|
DC0710J5010AHFRF DIR COUPLER 700MHZ-1GHZ 0805 |
32,240 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 700MHz ~ 1GHz | 10.9dB | General Purpose | 0.21dB | 2W | - | 17.5dB | 0805 |
|
|
DC2337J5020AHFRF DIR COUPLER 2.3-3.7GHZ 0805 |
10,282 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 3.7GHz | 21.3dB | General Purpose | 0.14dB | 2W | - | 21.2dB | 0805 (2012 Metric) |
|
|
C0727J5003AHFHYBRID COUPLR 700MHZ-2.7GHZ 0805 |
3,887 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 700MHz ~ 2.7GHz | 3dB | General Purpose | 0.7dB | 2W | 28.8dB | 31dB | 0805 |
|
|
DC2337J5010AHFRF DIR COUPLER 2.3-3.7GHZ 0805 |
1,589 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 3.7GHz | 10dB | General Purpose | 0.29dB | 2W | - | 20dB | 0805 (2012 Metric) |
|
0910CF15B0100001ERF DIR COUPLER 860-960MHZ 0805 |
33,019 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Coupler, With Filter | 860 ~ 960MHz | 10 ± 1dB | General Purpose | 1.2dB | - | 30dB | 20dB | 0805 |
|
|
X3C14F1-03SHYBRID COUPLER 3DB 90DEG |
5,258 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1.2GHz ~ 1.7GHz | 3dB | General Purpose | 0.25dB | 25W | 23dB | - | SMD |
|
|
X4C40K1-20SRDIRECTIONAL COUPLER 5G 20DB ATTO |
3,052 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 3.3GHz ~ 5.1GHz | - | General Purpose | - | 25W | - | - | 1210 |
|
|
X3C09F1-03SRF DIR COUPLER 800MHZ-1GHZ SMD |
10,505 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | - | General Purpose | 0.16dB | 25W | 26dB | - | - |
.JPG "X3C19F1-03S")
|
X3C19F1-03SRF DIR COUPLER 1.7GHZ-2.3GHZ SMD |
6,817 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2.3GHz | - | General Purpose | 0.25dB | 25W | 26dB | - | - |
|
|
X3C25F1-03SRF DIR COUPLER 2.3GHZ-2.7GHZ SMD |
3,948 |
1+：$3.89000 10+：$3.36300 25+：$3.17880 100+：$2.92530 250+：$2.77324 500+：$2.66582 1000+：$2.56461 |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.7GHz | - | General Purpose | 0.2dB | 25W | 26dB | - | - |
|
|
X3C35F1-03SRF DIR COUPLER 3.3GHZ-3.7GHZ SMD |
3,077 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 3.3GHz ~ 3.7GHz | - | General Purpose | 0.2dB | 25W | 23dB | - | - |
|
XC1400P-03SRF DIR COUPLER 1.2GHZ-1.6GHZ SMD |
22,858 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 1.2GHz ~ 1.6GHz | - | General Purpose | 0.32dB | 40W | 23dB | - | SMD |
|
DBTC-17-5L+RF DIR COUPLER 50MHZ-2GHZ 5SMD |
2,724 |
1+：$3.98000 50+：$3.91000 100+：$3.88620 |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 2GHz | 17.5 ± 1dB | Cellular | - | 2W | - | 28.07dB | - |
|
DCW-9-432+9 DB SMT DIRECTIONAL COUPLER, 23 |
1,066 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 4.3GHz | 9dB | General Purpose | - | - | - | - | - |
|
X3C09P1-03SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
4,506 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | AMPS, CDMA, WCDMA | 0.22dB | 90W | 23dB | 24.9dB | 4-SMD |
|
|
X3C09F1-20SRF DIR COUPLER 700MHZ-1GHZ SMD |
2,588 |
1+：$4.90000 10+：$4.24000 25+：$4.01000 100+：$3.69290 250+：$3.50292 500+：$3.36872 1000+：$3.24230 |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 700MHz ~ 1GHz | 20dB | General Purpose | 0.075dB | 25W | - | - | - |
|

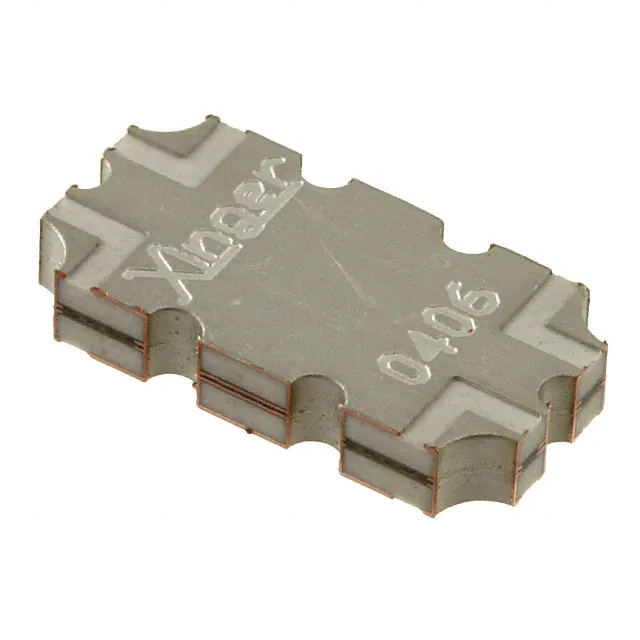

1M803SRF DIR COUPLER 4.8GHZ-6GHZ SMD |
1,422 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 4.8GHz ~ 6GHz | - | General Purpose | 0.25dB | 20W | 20dB | - | - |
RF Directional Coupler FAQ
What RF Directional Coupler components can I source from EGOO?
You can browse available RF Directional Coupler product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Directional Coupler parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
