RF Directional Coupler
Browse available RF Directional Coupler components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM0R75-75DC8630.75-75 MHz Directional Coupler |
4,327 | - |
|
Datasheet | - | Box | Active | Standard | 750kHz ~ 75MHz | 10 ± 0.3dB | General Purpose | 0.35dB | 5W | - | - | Module |
|
PE2CP1107CPLR 10DBSMA 7.5-16GHZ 50W |
4,666 | - |
|
Datasheet | - | Bag | Active | Standard | 7.5GHz ~ 16GHz | 10dB | CDMA, GSM, LTE | 0.6dB | 50W | - | - | Module |
|
PE2CP1105CPLR 10DBSMA 7-12.4GHZ 50W |
3,246 | - |
|
Datasheet | - | Bag | Active | Standard | 7GHz ~ 12.4GHz | 10dB | CDMA, GSM, LTE | 0.2dB | 50W | - | - | Module |
|
CP20008A-200.5 GHz - 8 GHz, 20 dB Coupling |
2,660 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 20dB | General Purpose | 0.6dB | 20W | 48dB | 26dB | Module |
|
CP10008A-200.5 GHz - 8 GHz, 20 dB Coupling |
3 |
1+：$507.00000 4+：$493.00000 10+：$483.00000 |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 20dB | General Purpose | 0.6dB | 20W | 45dB | 26dB | Module |
|
CP10008A-60.5 GHz - 8 GHz, 6 dB Coupling |
3,417 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 6dB | General Purpose | 2dB | 50W | 29dB | 21dB | Module |
|
CP20218A-202 GHz - 18 GHz, 20 dB Coupling |
4,432 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 18GHz | 20dB | General Purpose | 0.5dB | 20W | 43dB | 26dB | Module |
|
CP20220A-102 GHz - 20 GHz, 10 dB Coupling |
3,678 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 20GHz | 10dB | General Purpose | 1.5dB | 20W | 32dB | 21dB | Module |
|
PE2CP1009Dual Directional 40 dB SMA Coupl |
1,954 | - |
|
Datasheet | - | Retail Package | Active | Standard | 100MHz ~ 500MHz | 40dB | General Purpose | 0.25dB | 200W | - | - | Module |
|
CP10012A-100.5 GHz -12.4 GHz,10 dB Coupling |
1,510 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 12.4GHz | 10dB | General Purpose | 1.6dB | 30W | 31dB | 21dB | Module |
|
CP10220A-102 GHz - 20 GHz, 10 dB Coupling |
2,911 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 20GHz | 10dB | General Purpose | 1.5dB | 20W | 32dB | 21dB | Module |
|
|
WMPT-8-30dB-SPickoff Tee, 30dB Tap, 0-8GHz, S |
4,701 | - |
|
Datasheet | - | Retail Package | Active | Standard | 0Hz ~ 8GHz | 30 ± 2dB | General Purpose | 0.8dB | - | - | 22dB | - |
|
PE2CP000-30CPLR 30DBSMA 2-18GHZ 50W |
1,679 | - |
|
Datasheet | - | Bag | Active | Standard | 2GHz ~ 18GHz | 30 ± 1dB | General Purpose | 0.9dB | 50W | - | - | Module |
|
CP10120A-101 GHz - 20 GHz, 10 dB Coupling |
1,410 | - |
|
Datasheet | - | Box | Active | Standard | 1GHz ~ 20GHz | 10dB | General Purpose | 1.6dB | 20W | 33dB | 21dB | Module |
|
CP10118A-101 GHz - 18 GHz, 10 dB Coupling |
3,017 | - |
|
Datasheet | - | Box | Active | Standard | 1GHz ~ 18GHz | 10dB | General Purpose | 1.9dB | 20W | 33dB | 23dB | Module |
|
PE2CP1100CPLR 6DBSMA 4-18GHZ 50W |
3,222 | - |
|
Datasheet | - | Bag | Active | Standard | 4GHz ~ 18GHz | 6dB | CDMA, GSM, LTE | 0.5dB | 50W | - | - | Module |
|
CP20018A-100.5 GHz - 18 GHz, 10 dB Coupling |
1,571 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 18GHz | 10dB | General Purpose | 2dB | 20W | 32dB | 21dB | Module |
|
CP20018A-200.5 GHz - 18 GHz, 20 dB Coupling |
1,854 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 18GHz | 20dB | General Purpose | 1.7dB | 20W | 42dB | 21dB | Module |
|
|
PE205290 Degree SMA Hybrid Coupler Fro |
2,509 | - |
|
Datasheet | - | Retail Package | Active | Standard | 2GHz ~ 4GHz | 3.1 ± 0.8dB | General Purpose | - | 50W | 22dB | - | Module |
|

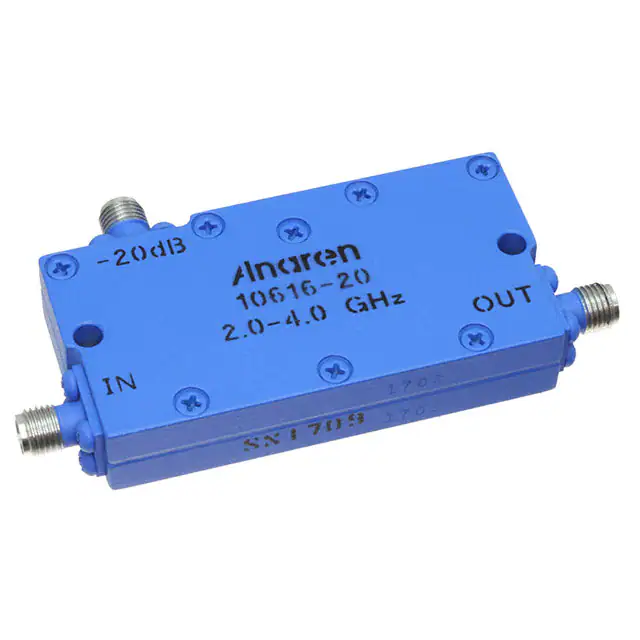

10616-20RF DIR COUPLER 2GHZ-4GHZ |
3,218 | - |
|
Datasheet | - | Tray | Active | Standard | 2GHz ~ 4GHz | 20dB | Military | 0.45dB | 100W | - | 19dB | - |
RF Directional Coupler FAQ
What RF Directional Coupler components can I source from EGOO?
You can browse available RF Directional Coupler product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Directional Coupler parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
