RF Directional Coupler
Browse available RF Directional Coupler components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X4C40K1-30SRDIRECTIONAL COUPLER 5G 30DB ATTO |
15,337 | - |
|
Datasheet | Xinger® IV | Tape & Reel (TR) | Active | Standard | 3.2GHz ~ 4GHz | 30 ± 1.5dB | LTE | 0.075dB | 25W | - | - | 1210 |
|
DBTC-20-4L+RF DIR COUPLER 20MHZ-1GHZ 5SMD |
1,898 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 20MHz ~ 1GHz | 20.4 ± 0.5dB | Cellular | - | 1W | - | 31.8dB | - |
|
DBTC-17-5LX+RF DIR COUPLER 50MHZ-2GHZ 5SMD |
1,172 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 2GHz | 17.2 ± 0.9dB | Cellular, PCS | - | 2W | - | 28.07dB | - |
|
DCW-14-472+14 DB SMT DIRECTIONAL COUPLER, 3 |
213 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 3.6GHz ~ 4.7GHz | 14dB | General Purpose | - | - | - | - | - |
|
X3C21P1-05SRF DIR COUPLER 2GHZ-2.3GHZ SMD |
901 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2GHz ~ 2.3GHz | 5dB | General Purpose | 0.15dB | 60W | - | - | SMD |
|
|
X3C35P1-03SIC HYBRID COUPLER |
351 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 3.1GHz ~ 4.2GHz | - | DCS, LTE, PCS, WCDMA | 0.25dB | 85W | 23dB | - | 5-SMD |
|
X3C25P1-05SRF DIR COUPLER 2.3GHZ-2.7GHZ SMD |
660 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.7GHz | 5dB | General Purpose | 0.18dB | 60W | - | - | SMD |
|

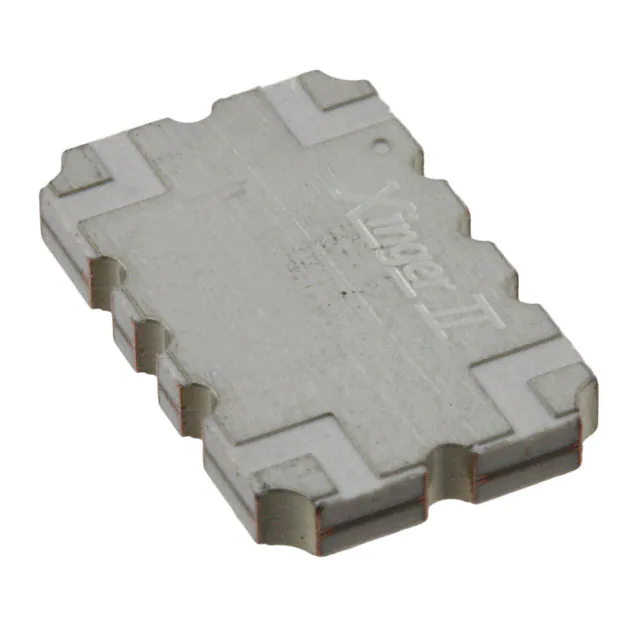

XC1900A-03SRF DIR COUPLER 1.4GHZ-2GHZ SMD |
3,004 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2GHz | 3dB | AMPS | 0.15dB | 150W | 25dB | 24.9dB | SMD |
|
|
JHS-139-PINHYBRID,QUADRATURE |
3,244 | - |
|
Datasheet | - | Tray | Active | Standard | 250MHz ~ 500MHz | - | General Purpose | 0.5dB | 4W | 15dB | - | SF-1 |
|
SEDC-10-63+RF DIR COUPLER 50MHZ-6GHZ 24SMD |
3,799 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 6GHz | 10dB | General Purpose | - | 1W | - | 18dB | - |
|
JHS-115-PINRF DIR COUPLER 40MHZ-80MHZ SF1 |
4,112 | - |
|
Datasheet | - | Bulk | Active | Standard | 40MHz ~ 80MHz | - | - | 0.5dB | 1W | 20dB | - | SF-1 |
|
CH-140-PINCOUPLER,BROAD-BAND S/D |
2,527 | - |
|
Datasheet | - | Tray | Active | Standard | 5MHz ~ 1GHz | 19.75dB | General Purpose | 0.75dB | 3W | - | - | FP-2 |
|
|
CPL1608LL12RWHEXACOUPLER SMD LTE 5G 4G |
10,639 | - |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | Standard | 689MHz ~ 960MHz, 1.425GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 25.5 ± 2.5dB, 24 ± 2.5dB, 25 ± 2.5dB | General Purpose | 0.15dB, 0.25dB, 0.3dB | - | 42dB, 38dB, 35dB | - | 0603 |
|
|
CPL0605AT13R2455ACOUPLER SMD 2.4G/5G |
10,000 | - |
|
Datasheet | 605 | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | 19 ± 2dB, 12.5 ± 2dB | General Purpose | 0.55dB | - | - | - | 0202 |
|
SLCP18-2R700G-01TDIRECTIONAL COUPLER 2700MHZ 0603 |
7,900 | - |
|
Datasheet | SLCP | Tape & Reel (TR) | Active | Standard | 698MHz ~ 2.69GHz | 25.5 ± 2dB, 22.5 ± 2dB, 23.5 ± 2dB | LTE | 0.23dB, 0.25dB, 0.28dB | - | - | - | 0603 |
|
TFSC06053925-2111B2XTHIN-FILM DIRECTIONAL COUPLER |
7,206 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | 21.8dB | General Purpose | 0.22dB | 35dBm | - | 50dB | 0202 |
.jpg "CP0603A0836ANTR")
|
CP0603A0836ANTRRF DIR COUPLER 824-849MHZ 0603 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 849MHz | 20dB | AMPS | 0.25dB | 3W | -45dB | 28dB | 0603 |
|
|
CP0603A2442BNTRRF DIR COUPLER 2.4-2.484GHZ 0603 |
1,972 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.484GHz | 14.2dB | Wireless LAN | 0.35dB | 3W | -32dB | 23dB | 0603 |
|
|
X4C25L1-04GIC 5G DIRECTIONAL COUPLER 0805 |
3,870 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Dual Band, Dual Path | 2.2GHz ~ 2.8GHz | 4dB | Cellular | - | - | - | - | 0603 |
|
|
X4C25L1-02GIC 5G DIRECTIONAL COUPLER 0805 |
3,706 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Dual Band, Dual Path | 2.2GHz ~ 2.8GHz | 2dB | Cellular | - | - | - | - | 0603 |
RF Directional Coupler FAQ
What RF Directional Coupler components can I source from EGOO?
You can browse available RF Directional Coupler product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Directional Coupler parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
