Solid State Relays (SSR)
Compare the current Solid State Relays (SSR) Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

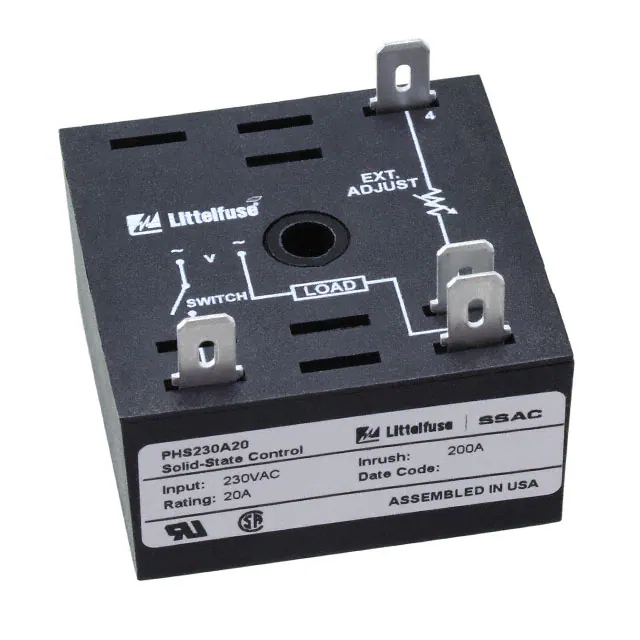

PHS230A20SSR RELAY SPST-NO 20A |
4,224 | - |
|
Datasheet | PHS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 230VAC | - | 20 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | UR | - | - |
|
CPC1964BX6SSR RELAY SPST-NO 1.5A 0-600V |
100 | - |
|
Datasheet | CPC | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC | 1.2VDC | 0 V ~ 600 V | 1.5 A | - | Gull Wing | -40°C ~ 85°C | 8-SOIC | CSA, UL | - | - |
|
PAA193SSR RELAY SPST-NO 100MA 0-600V |
100 | - |
|
Datasheet | PAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 600 V | 100 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
LAA125SSR RELAY SPST-NO 170MA 0-350V |
3,190 | - |
|
Datasheet | LAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 350 V | 170 mA | 16 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
LCC110PSSR RELAY SPDT 120MA 0-350V |
2,211 | - |
|
Datasheet | LCC, OptoMOS® | Tube | Active | Surface Mount | SPDT (1 Form C) | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, EN, UL | - | - |
|
|
LBA120RELAY SPST-NO/NC 170MA 0-250V |
100 | - |
|
Datasheet | LBA, OptoMOS® | Tube | Active | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 250 V | 170 mA | 20 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, TUV, UL | - | - |
|
|
LAA110PSSR RELAY SPST-NO 120MA 0-350V |
1,442 | - |
|
Datasheet | LAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, EN, TUV, UL | - | - |
|
|
LBA120SRELAY SPST-NO/NC 170MA 0-250V |
1,679 | - |
|
Datasheet | LBA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 250 V | 170 mA | 20 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, TUV, UL | - | - |
|
|
LAA127PSSR RELAY SPST-NO 200MA 0-250V |
2,541 | - |
|
Datasheet | LAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 200 mA | 10 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, TUV, UL | - | - |
|
LCB717SSR RELAY SPST-NC 1.5A 0-30V |
4,654 | - |
|
Datasheet | LCB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.2VDC | 0 V ~ 30 V | 1.5 A | 300 mOhms | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, EN, TUV, UL | - | - |
Solid State Relays (SSR) FAQ
How can I narrow the current Solid State Relays (SSR) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Solid State Relays (SSR) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
