Solid State Relays (SSR)
Compare the current Solid State Relays (SSR) Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAA110SSSR RELAY SPST-NO 150MA 0-400V |
4,319 | - |
|
Datasheet | PAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 150 mA | 22 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
|

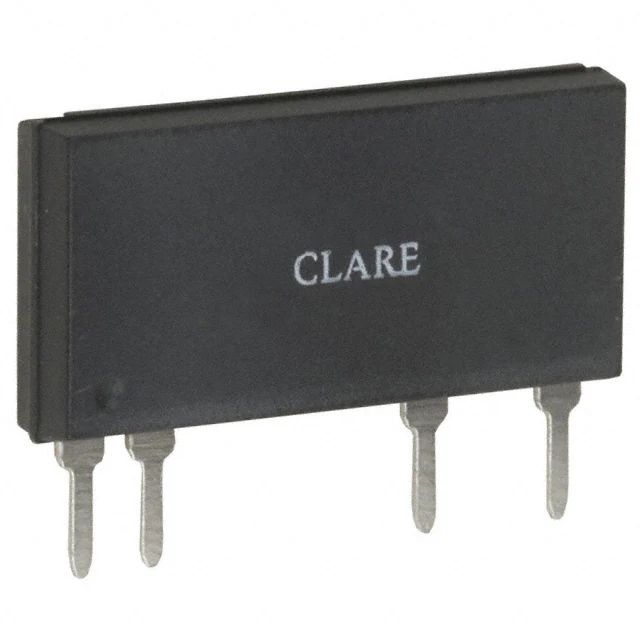

PS2601SSR RELAY SPST-NO 1A 0-600V |
3,500 | - |
|
Datasheet | PS | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 600 V | 1 A | - | PC Pin | -40°C ~ 85°C | 4-SIP | CSA, UL | - | - |
|
PBA150RELAY SPST-NO/NC 250MA 0-250V |
2,116 | - |
|
Datasheet | PBA, OptoMOS® | Tube | Active | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 250 V | 250 mA | 7 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
PAA132SSR RELAY SPST-NO 600MA 0-60V |
1,351 | - |
|
Datasheet | PAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 600 mA | 1 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, IEC, TUV, UL | - | - |
|
CPC1988JSSR RELAY SPST-NO 900MA 0-1000V |
100 | - |
|
Datasheet | CPC, OptoMOS® | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 1000 V | 900 mA | 2.5 Ohms | PC Pin | -40°C ~ 85°C | ISOPLUS264™ | CSA, TUV, UL | - | - |
|

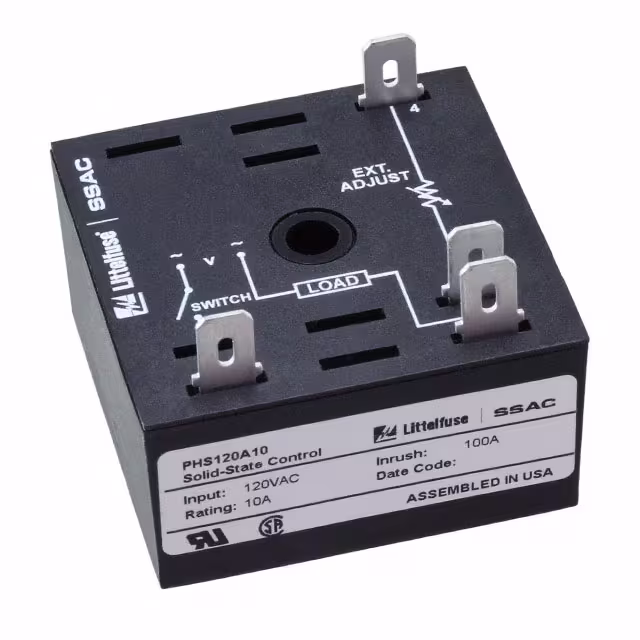

PHS120A10SSR RELAY SPST-NO 10A |
4,282 | - |
|
Datasheet | PHS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 120VAC | - | 10 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | UR | - | - |
|

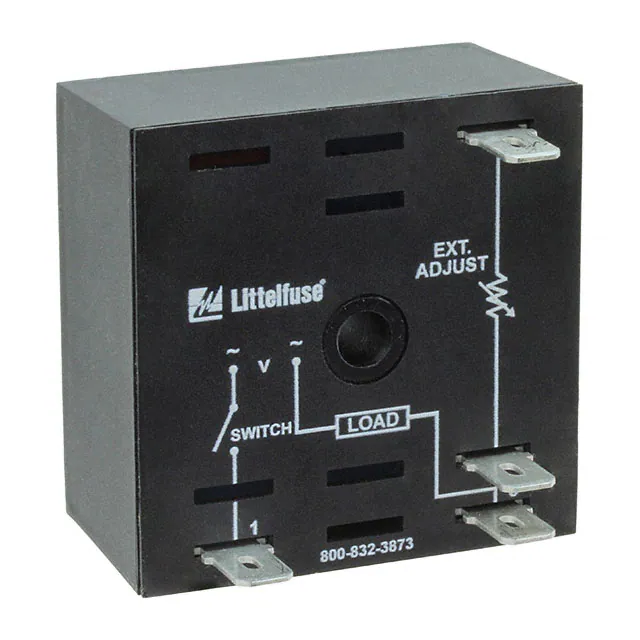

PHS230A6SSR RELAY SPST-NO 6A |
2,580 | - |
|
Datasheet | PHS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 230VAC | - | 6 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | UR | - | - |
|

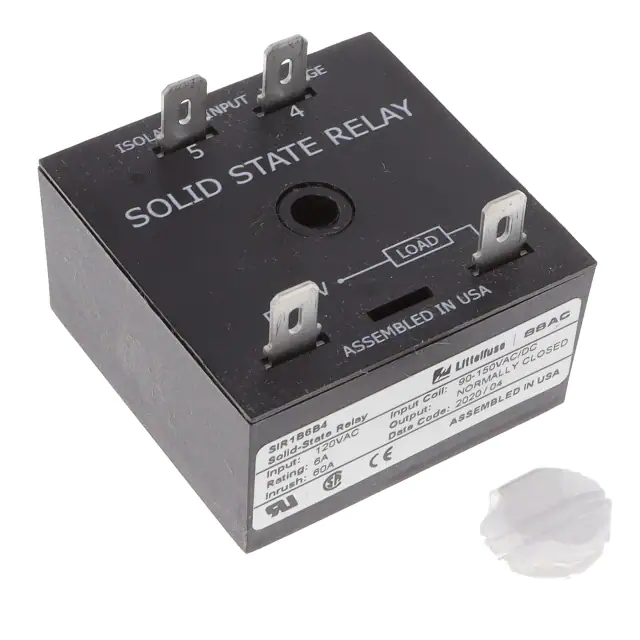

SIR1B6B4SSR RELAY SPST-NC 6A 0-120V |
3,639 | - |
|
Datasheet | SIR | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | AC | 90 ~ 150VAC/DC | 0 V ~ 120 V | 6 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | UR | - | - |
|

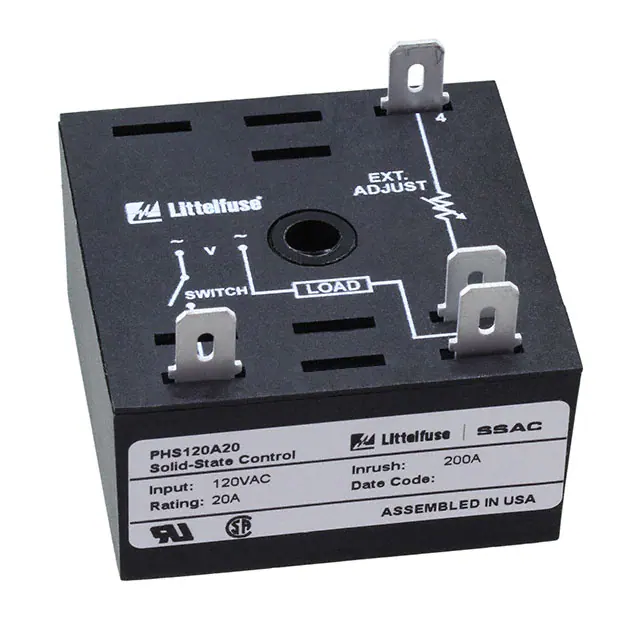

PHS120A20SSR RELAY SPST-NO 20A |
4,313 | - |
|
Datasheet | PHS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 120VAC | - | 20 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | UR | - | - |
|
LCA120LSSR RELAY SPST-NO 150MA 0-250V |
3,473 | - |
|
Datasheet | LCA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 250 V | 150 mA | 20 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, EN, UL | - | - |
Solid State Relays (SSR) FAQ
How can I narrow the current Solid State Relays (SSR) selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Solid State Relays (SSR) parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
