Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OWS-1636LA-8BSPEAKER 8OHM 500MW TOP PT 96.2DB |
199 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 900Hz | 8 Ohms | 96.20 | 500mW/10cm | Sensitivity | 500 mW | 800 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Leaf Spring | 0.630" Dia (16.00mm) |
|
OWS-2879W50A-4SPEAKER 4OHM 2W TOP PORT 103DB |
320 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 570Hz | 4 Ohms | 103.00 | 2W/10cm | Sensitivity | 2 W | 3 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 1.102" Dia (28.00mm) |
|
OWR-5088TA-32SPEAKER 34OHM 30MW TOP PORT 97DB |
418 | - |
|
Datasheet | - | Bulk | Active | Magnetic | Headphone Driver | 20 Hz ~ 20 kHz | 70Hz | 34 Ohms | 97.00 | 10mW/10mm | Sensitivity | 30 mW | 50 mW | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
|
OWS-1936W-8BSPEAKER 8OHM 500MW TOP PORT 93DB |
200 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 93.00 | 500mW/10cm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.748" Dia (19.00mm) |
|
|
OWS-1840TA-4SPEAKER 4 OHM 2W 99DB TOP PORT |
633 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 4 Ohms | 99.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.728" Dia (18.50mm) |
|
|
OWR-0504T-16SPEAKER 16OHM 1MW TOP PORT 66DB |
162 | - |
|
Datasheet | - | Bulk | Active | Magnetic | Receiver | 20 Hz ~ 20 kHz | 1.2kHz | 16 Ohms | 66.2 | 1mW/10mm | Sound Pressure Level (SPL) | 5 mW | - | Top | Round | Plastic | Nd-Fe-B | IP64 - Dust Tight, Water Resistant | - | Solder Pads | 0.193" Dia (4.90mm) |
|
|
OWS-203657TA-8BSPEAKER 8 OHM 2W 105DB TOP PORT |
488 | - |
|
Datasheet | - | Tray | Active | Magnetic | Microspeaker | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 105.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Oval | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.425" L x 0.807" W (36.20mm x 20.50mm) |
|
|
OWS-151540S-8SPEAKER 8OHM 800MW TOP PORT 92DB |
562 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 800Hz | 8 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Plastic | Nd-Fe-B | - | - | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|

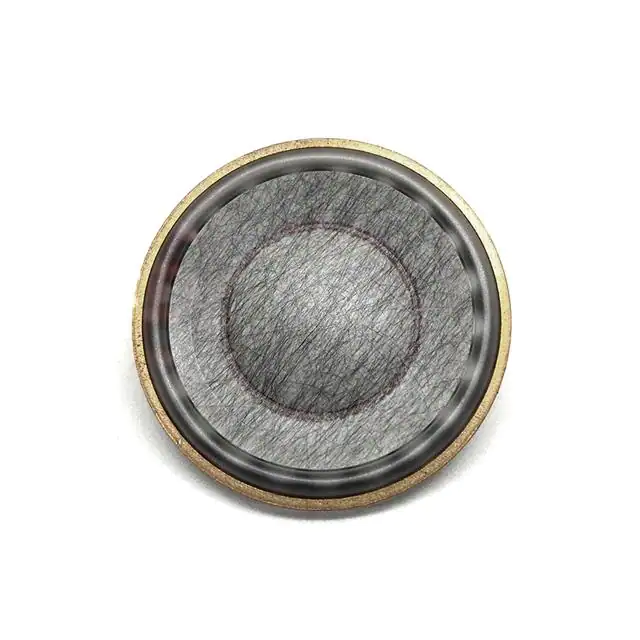

OWR-3507T-36ASPEAKER 36OHM 10MW TOP PT 97.4DB |
672 | - |
|
Datasheet | - | Bulk | Active | Magnetic | Headphone Driver | 20 Hz ~ 20 kHz | 72Hz | 36 Ohms | 97.40 | 10mW/10mm | Sensitivity | 10 mW | 20 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.378" Dia (35.00mm) |
|
|
OWS-4021TA-4SPEAKER 4OHM 3W TOP PORT 104DB |
131 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 180Hz | 4 Ohms | 104.00 | 3W/10cm | Sensitivity | 3 W | 5 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
