Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR-28N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
3,127 |
1+：$2.58000 10+：$1.96300 25+：$1.76840 50+：$1.63680 100+：$1.51710 250+：$1.37508 500+：$1.27844 1000+：$1.19010 5000+：$1.06424 |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 700 Hz ~ 8 kHz | 700Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SP-1504SPEAKER 8OHM 800MW TOP PORT 93DB |
2,065 |
1+：$4.07000 10+：$3.10700 25+：$2.80320 50+：$2.59780 100+：$2.41060 300+：$2.14693 500+：$2.03658 1000+：$1.89788 5000+：$1.80318 |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
CDM-20008SPEAKER 8OHM 300MW TOP PORT 92DB |
3,898 | - |
|
Datasheet | CDM | Tray | Active | Magnetic | General Purpose | 448 Hz ~ 7 kHz | 560Hz | 8 Ohms | 92.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
CMS-15113-076S-67SPEAKER 6OHM 700MW TOP PORT 92DB |
2,506 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1609SSPEAKER 8OHM 700MW TOP PORT 92DB |
3,101 |
1+：$3.76000 10+：$2.86700 25+：$2.58640 50+：$2.39620 100+：$2.22330 300+：$1.97957 500+：$1.87758 1000+：$1.74941 5000+：$1.64668 |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 850Hz | 8 Ohms | 92.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS02008MR-RSPEAKER 8OHM 500MW TOP PORT 86DB |
3,458 |
1+：$3.13000 10+：$2.38200 25+：$2.14720 50+：$1.98840 100+：$1.84380 300+：$1.64030 500+：$1.55520 1000+：$1.44832 5000+：$1.32500 |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
E-12041808SPEAKER 8OHM 2W TOP PORT 87DB |
1,913 |
1+：$5.84000 10+：$4.47100 48+：$3.76229 96+：$3.49385 144+：$3.34771 288+：$3.11510 528+：$2.92797 1008+：$2.74356 |
|
Datasheet | - | Tray | Active | Magnetic | Exciter | 400 Hz ~ 20 kHz | 400Hz | 8 Ohms | 87.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 0.728" Dia (18.50mm) |
|
AS02008MR-5-RSPEAKER 8OHM 500MW TOP PORT 86DB |
971 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
AR027150MR-2-RSPEAKER 150OHM 15MW TOP PT 118DB |
2,176 |
1+：$3.41000 10+：$2.60100 25+：$2.34560 60+：$2.13000 120+：$1.97658 300+：$1.79403 540+：$1.68793 1020+：$1.58175 5040+：$1.47500 |
|
Datasheet | - | Tray | Active | Magnetic | Receiver | 20 Hz ~ 10 kHz | 150Hz | 150 Ohms | 118.00 | 1mW | Sound Pressure Level (SPL) | 15 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.055" Dia (26.80mm) |
|
AS01808AO-3-RSPEAKER 8OHM 1W TOP PORT 94DB |
9,847 | - |
|
Datasheet | Slim Line Micro | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 14 kHz | 420Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS03008MR-RSPEAKER 8OHM 500MW TOP PORT 82DB |
9,489 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 15 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
AST-03208MR-RSPEAKER 8OHM 100MW TOP PORT 82DB |
9,009 |
1+：$4.19000 10+：$3.19900 25+：$2.88680 50+：$2.67500 100+：$2.48210 250+：$2.25284 500+：$2.09668 1000+：$1.95377 5000+：$1.85007 |
|
Datasheet | AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 82.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.256" Dia (31.90mm) |
|
AS01508MR-6-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
22,937 |
1+：$3.89000 10+：$2.96800 25+：$2.67760 50+：$2.48120 100+：$2.30230 300+：$2.05017 500+：$1.94464 1000+：$1.81203 5000+：$1.71250 |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
CVS-1508SPEAKER 8OHM 300MW TOP PORT 73DB |
2,534 |
1+：$3.95000 10+：$3.01400 25+：$2.71920 50+：$2.51980 100+：$2.33820 400+：$2.02103 800+：$1.88254 1200+：$1.80698 5200+：$1.74250 |
|
Datasheet | CVS | Tray | Active | Magnetic | General Purpose | 1.36 kHz ~ 20 kHz | 1700Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.591" Dia (15.00mm) |
|
AST-02308MR-RSPEAKER 8OHM 100MW TOP PORT 75DB |
6,816 |
1+：$5.22000 10+：$3.99000 25+：$3.60240 50+：$3.33980 100+：$3.10050 250+：$2.81592 500+：$2.62192 1000+：$2.44432 |
|
Datasheet | AST | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 75.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
CVS-1708SPEAKER 8OHM 200MW TOP PORT 74DB |
1,521 |
1+：$4.02000 10+：$3.06700 25+：$2.76760 50+：$2.56480 100+：$2.38000 250+：$2.16024 650+：$1.95732 1300+：$1.82482 5200+：$1.77750 |
|
Datasheet | CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.669" Dia (17.00mm) |
|
AS02708CO-WR-RSPEAKER 8OHM 1W TOP PORT 80DB |
49,859 |
1+：$7.33000 10+：$5.62400 25+：$5.08280 50+：$4.71580 100+：$4.38120 250+：$3.98284 500+：$3.71110 1000+：$3.49832 |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 750Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|

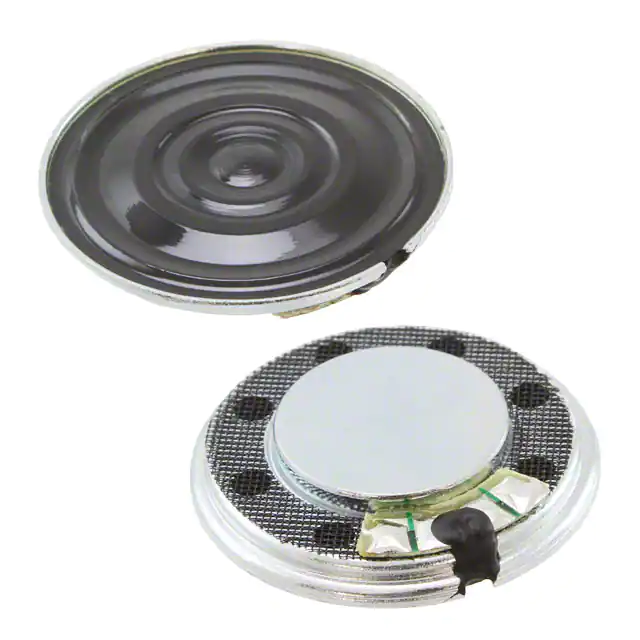

AS02808MR-2-RSPEAKER 8OHM 500MW TOP PORT 85DB |
1,839 |
1+：$4.26000 10+：$3.24700 25+：$2.93000 50+：$2.71520 100+：$2.51960 300+：$2.24393 500+：$2.12856 1000+：$1.98353 5000+：$1.88150 |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

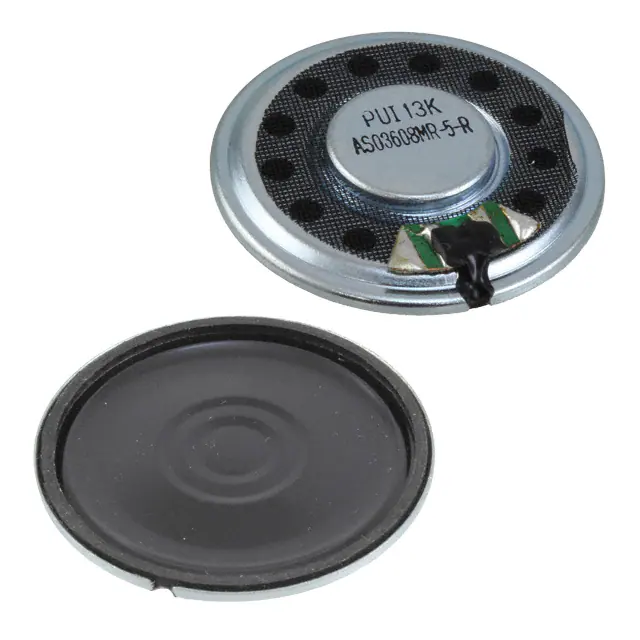

AS03608MR-5-RSPEAKER 8OHM 500MW TOP PORT 91DB |
2,196 |
1+：$5.10000 10+：$3.90200 25+：$3.52240 50+：$3.26560 100+：$3.03160 250+：$2.75312 500+：$2.56332 1000+：$2.38959 |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
AST-03008MR-RSPEAKER 8OHM 150MW TOP PORT 72DB |
3,636 |
1+：$5.47000 10+：$4.18300 25+：$3.77720 50+：$3.50220 100+：$3.25160 250+：$2.95348 500+：$2.75028 1000+：$2.56423 |
|
Datasheet | AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1400Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 150 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.175" Dia (29.85mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
