Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS01506MS-SP15-WP-RSPEAKER 6OHM 1W TOP PORT 93DB |
239 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS05004MR-3-RSPEAKER 4OHM 1.5W TOP PORT 100DB |
2,245 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 20 kHz | 350Hz | 4 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
AS01808MS-SP18-WP-RSPEAKER 8OHM 500MW TOP PORT 88DB |
109 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | - | Sensitivity | 500 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS02016MR-2-RSPEAKR 16OHM 300MW TOP PORT 91DB |
896 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 7 kHz | 600Hz | 16 Ohms | 91.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
AS01508AO-SC-WP-RSPEAKER 8OHM 700MW TOP PORT 94DB |
11,457 | - |
|
Datasheet | Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

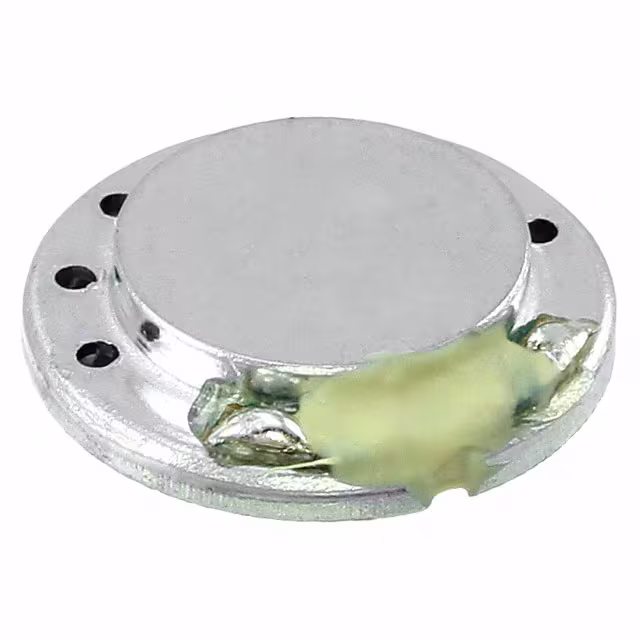

AS01308MR-2-RSPEAKER 8OHM 200MW TOP PORT 85DB |
3,874 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1100Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
AS04004CO-2-RSPEAKER 4OHM 1.5W TOP PORT 84DB |
347 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
AR01232MS-SC12-WP-2-RSPEAKR 32OHM 20MW TOP PORT 117DB |
442 | - |
|
Datasheet | AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 117.00 | 10mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
AR01532MS-SC15-WP-RSPEAKR 32OHM 20MW TOP PORT 108DB |
155 | - |
|
Datasheet | AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 400Hz | 32 Ohms | 108.00 | - | Sensitivity | 20 mW | 30 mW | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | - | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
AS01606MS-SP16-WP-RSPEAKER 6OHM 940MW TOP PORT 91DB |
212 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 6 Ohms | 91.00 | - | Sensitivity | 940 mW | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
