Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS08308CR-RSPEAKER 8OHM 7W TOP PORT 82DB |
2,549 | - |
|
Datasheet | AS | Box | Active | Magnetic | General Purpose | 70 Hz ~ 20 kHz | - | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 7 W | 15 W | Top | Round, Square Frame | Cloth (Water Resistant) | Ferrite | Water Resistant | - | Solder Eyelet(s) | - |
|
AS06008PS-RSPEAKER 8OHM 10W TOP PORT 99DB |
2,627 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 160 Hz ~ 18 kHz | 160Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | IEC 60601-1-8 | Solder Eyelet(s) | 2.630" L x 2.630" W (66.80mm x 66.80mm) |
|
AS11508AR-RSPEAKER 8OHM 20W TOP PORT 84DB |
2,368 | - |
|
Datasheet | AS | Box | Active | Magnetic | Woofer | 80 Hz ~ 15 kHz | 80Hz | 8 Ohms | 84.00 | 1M | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round | Aluminum (AI) | Ferrite | - | - | Quick Connect | 4.528" Dia (115.00mm) |
|
AS01504MR-RSPEAKER 4OHM 500MW TOP PORT 85DB |
1,867 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 920 Hz ~ 5 kHz | 920Hz | 4 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
AS01525MR-RSPEAKR 25OHM 300MW TOP PORT 86DB |
100 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 850Hz | 25 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
AS01550MR-2-RSPEAKR 50OHM 300MW TOP PORT 86DB |
3,923 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 850Hz | 50 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|

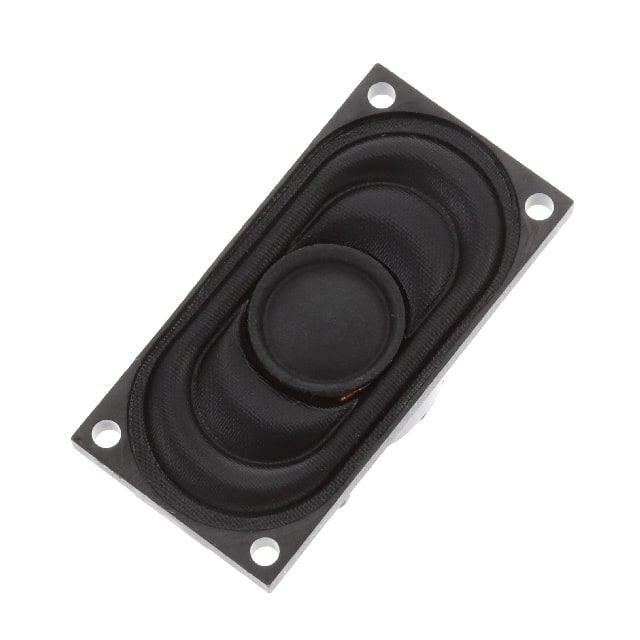

AS04016CO-RSPEAKER 16OHM 1.5W TOP PORT 90DB |
2,001 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 20 kHz | 550Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|

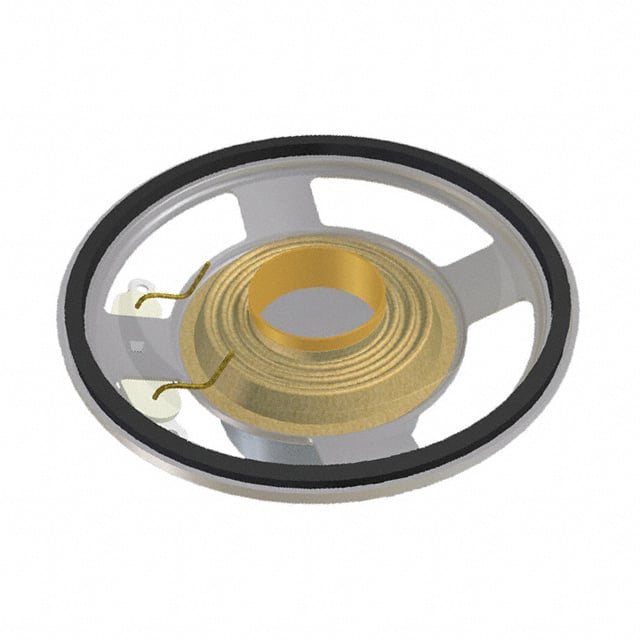

AS05008MR-RSPEAKER 8OHM 200MW TOP PORT 80DB |
4,374 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 4.5 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

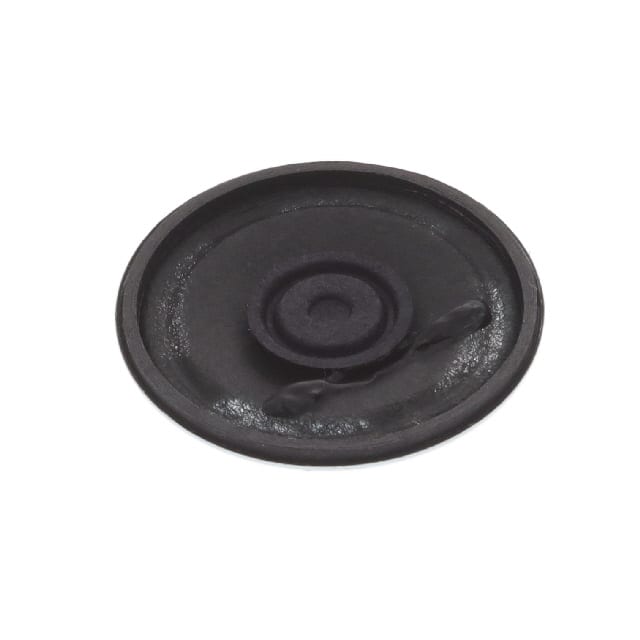

AS04032PR-RSPEAKER 32OHM 1W TOP PORT 78DB |
2,374 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 32 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|

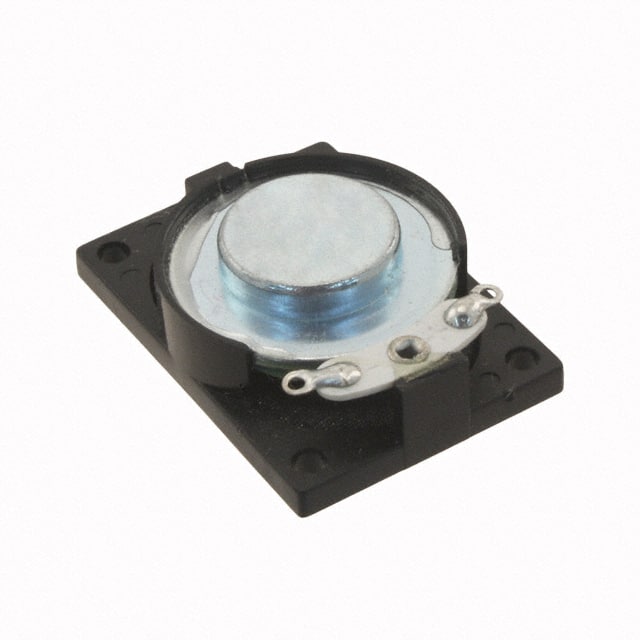

AS04008PO-2-WR-RSPEAKER 8OHM 1W TOP PORT 84DB |
2,579 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
