Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

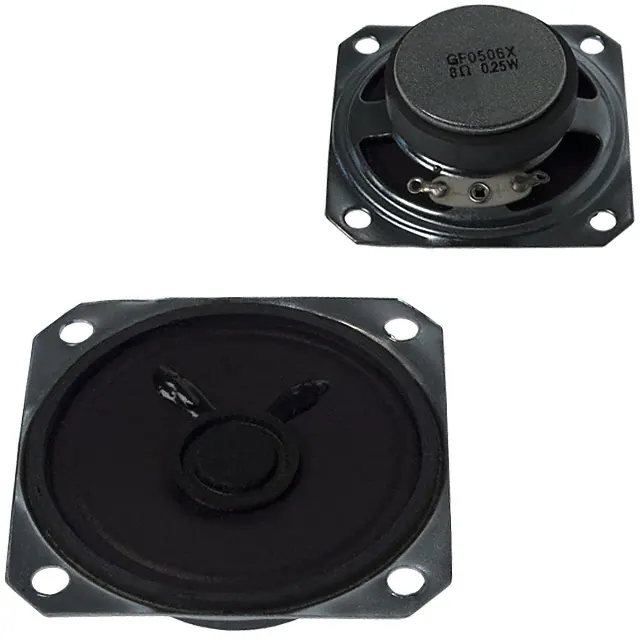

GF0506SPEAKER 8OHM 250MW TOP PORT 82DB |
905 | - |
|
Datasheet | GF | Tray | Active | Magnetic | General Purpose | 344 Hz ~ 7.2 kHz | 430Hz | 8 Ohms | 82.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|
CLS0261MAE-L152SPEAKER 8OHM 500MW TOP PORT 88DB |
5,342 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 540 Hz ~ 6 kHz | 660Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.024" Dia (26.00mm) |
|
CDS-20144-L100SPEAKER 4OHM 1W TOP PORT 92DB |
853 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
GF0668SPEAKER 8OHM 3W TOP PORT 90DB |
7,814 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 240 Hz ~ 20 kHz | 300Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
CLS0281MAE-L152SPEAKER 8OHM 2W TOP PORT 87DB |
2,045 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 780 Hz ~ 7.5 kHz | 780Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CLS0402MA-1-L152SPEAKER 8OHM 500MW TOP PORT 90DB |
2,552 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
CLS0401MAE-L152SPEAKER 4OHM 1W TOP PORT 91DB |
1,789 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 7 kHz | 500Hz | 4 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
CSS-1021028NSPEAKER 8OHM 10W TOP PORT 107DB |
12,852 | - |
|
Datasheet | CSS | Box | Active | Magnetic | General Purpose | 92 Hz ~ 7.8 kHz | 115Hz | 8 Ohms | 107.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper/Foam | Nd-Fe-B | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
GF0666MSPEAKER 8OHM 500MW TOP PORT 88DB |
8,524 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 420 Hz ~ 12 kHz | 420Hz | 8 Ohms | 88.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
GC0351NSPEAKER 8OHM 1W TOP PORT 82DB |
2,673 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
