Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-181325-078SPSPEAKER 8OHM 700MW TOP PORT 93DB |
3,739 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CLS0281MPSPEAKER 8OHM 200MW TOP PORT 82DB |
2,945 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 850 Hz ~ 6 kHz | 850Hz | 8 Ohms | 82.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.102" Dia (28.00mm) |
|

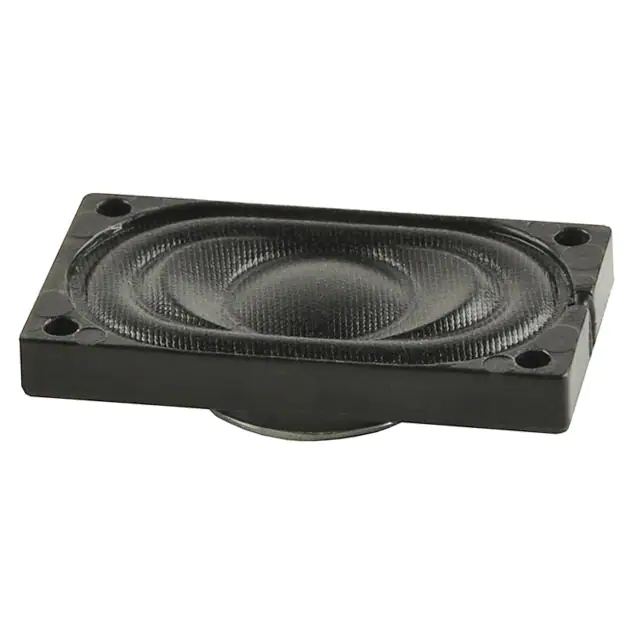

CMS-25148NSPEAKER 8OHM 1W TOP PORT 92DB |
2,836 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1050Hz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMS-16098A-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
2,179 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 10 kHz | 550Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-28528N-L152SPEAKER 8OHM 2W TOP PORT 99DB |
2,014 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-23558N-L152SPEAKER 8OHM 1W TOP PORT 80DB |
1,668 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CLS0201MA-L152SPEAKER 8OHM 500MW TOP PORT 86DB |
4,514 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 86.00 | 1W/50mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
|
CDS-40304SPEAKER 4OHM 2W TOP PORT 79DB |
4,293 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-231210-18PMSPEAKER 8OHM 1W TOP PORT 88DB |
2,765 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181" L x 0.512" W (30.00mm x 13.00mm) |
|
CMS-131304-SMT-TRSPEAKER, 13 MM SQUARE, 4 MM DEEP |
1,216 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 87.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
