Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS07108PO-RSPEAKER 8OHM 3W TOP PORT 86DB |
765 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|

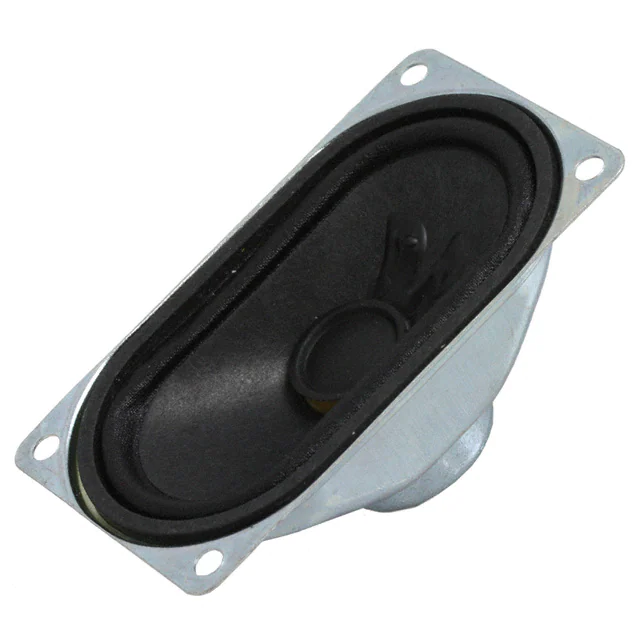

AS07104PO-RSPEAKER 4OHM 3W TOP PORT 86DB |
683 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
AS04008PO-2-RSPEAKER 8OHM 1W TOP PORT 84DB |
707 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|

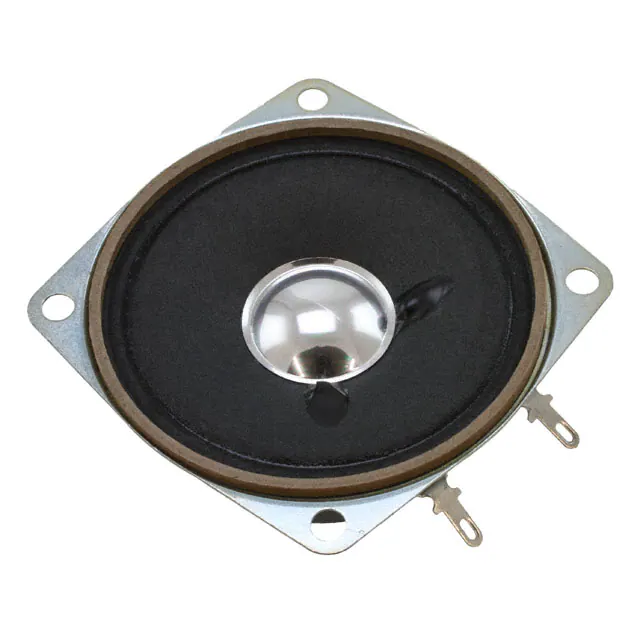

GF0668SPEAKER 8OHM 3W TOP PORT 90DB |
7,814 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 240 Hz ~ 20 kHz | 300Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
CLS0281MAE-L152SPEAKER 8OHM 2W TOP PORT 87DB |
2,045 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 780 Hz ~ 7.5 kHz | 780Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
ASE03008MR-LW150-RSPEAKER 8OHM 1W TOP PORT 83DB |
3,158 | - |
|
Datasheet | ASE | Tray | Active | Magnetic | General Purpose, Enclosure Included | 550 Hz ~ 18 kHz | 800Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Wire Leads | 1.181" L x 0.984" W (30.00mm x 25.00mm) |
|

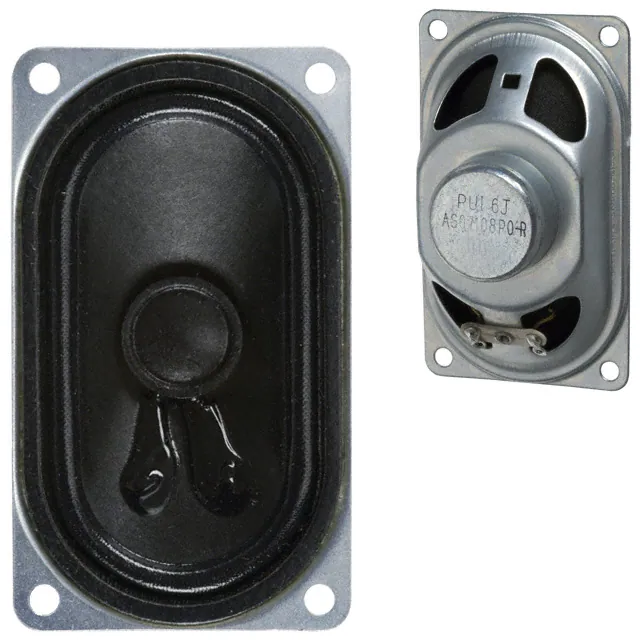

AS07108PO-WR-RSPEAKER 8OHM 3W TOP PORT 86DB |
3,232 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
CLS0402MA-1-L152SPEAKER 8OHM 500MW TOP PORT 90DB |
2,552 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
CLS0401MAE-L152SPEAKER 4OHM 1W TOP PORT 91DB |
1,789 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 7 kHz | 500Hz | 4 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|

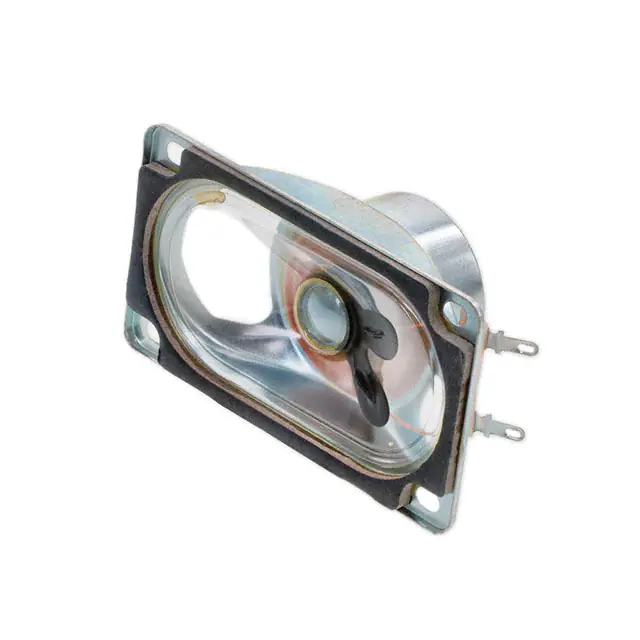

WSP-5090-4SPEAKER 4OHM 10W TOP PORT 96DB |
2,096 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | - | 4 Ohms | 96.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | - |
|

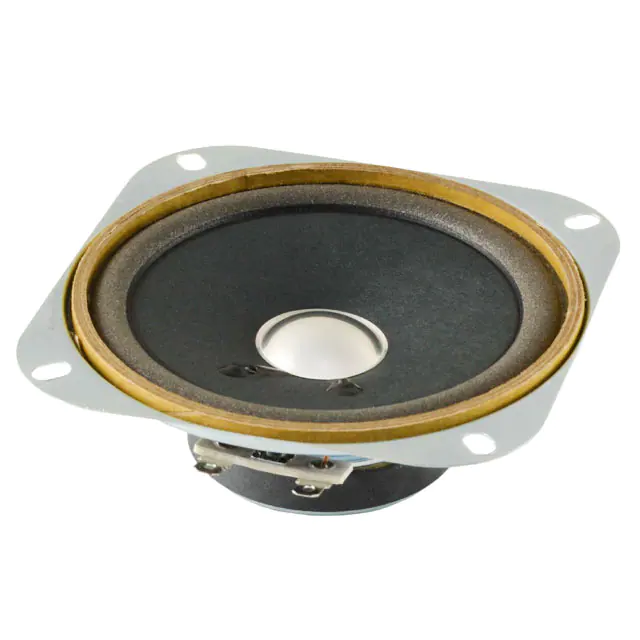

CSS-1021028NSPEAKER 8OHM 10W TOP PORT 107DB |
12,852 | - |
|
Datasheet | CSS | Box | Active | Magnetic | General Purpose | 92 Hz ~ 7.8 kHz | 115Hz | 8 Ohms | 107.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper/Foam | Nd-Fe-B | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
AS04004PO-2-RSPEAKER 4OHM 3W TOP PORT 82DB |
2,286 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 420Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Oval, Rectangular Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
AS04008CO-2-RSPEAKER 8OHM 1.5W TOP PORT 84DB |
650 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
GF0666MSPEAKER 8OHM 500MW TOP PORT 88DB |
8,524 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 420 Hz ~ 12 kHz | 420Hz | 8 Ohms | 88.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
AS07104PO-WR-RSPEAKER 4OHM 3W TOP PORT 86DB |
1,272 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
GC0351NSPEAKER 8OHM 1W TOP PORT 82DB |
2,673 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

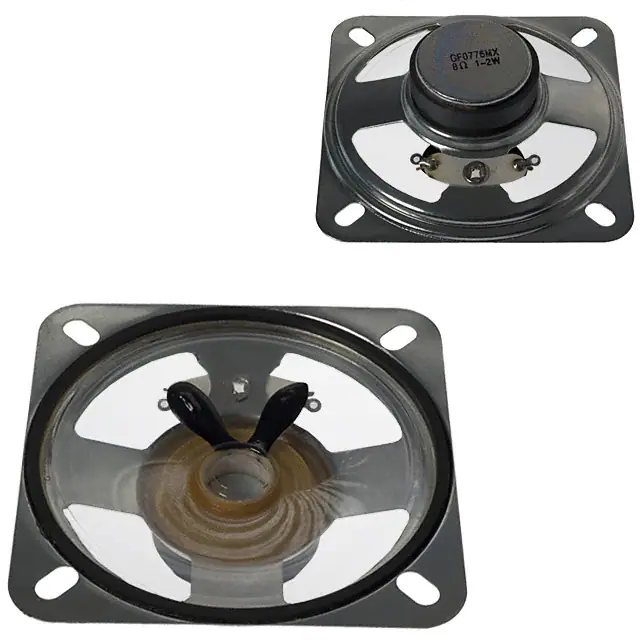

GF0776MSPEAKER 8OHM 1W TOP PORT 91DB |
13,003 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 360 Hz ~ 11 kHz | 360Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
|
GF0573SPEAKER 8OHM 3W TOP PORT 92DB |
2,595 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 450 Hz ~ 21 kHz | 450Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
CDS-40304-L100SPEAKER 4OHM 2W TOP PORT 79DB |
5,110 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-603318-24PMSPEAKER 4OHM 2W TOP PORT 104DB |
943 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 200 Hz ~ 20 kHz | 800Hz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 2.835" L x 1.299" W (72.00mm x 33.00mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
