Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S100RMSSSPEAKER 8OHM 100MW TOP PORT 78DB |
792 | - |
|
Datasheet | - | Tray | Active | Magnetic | Low Profile | 350 Hz ~ 5 kHz | 540Hz | 8 Ohms | 78.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SR900R-PCSPEAKER 8OHM 100MW TOP PORT 72DB |
1,600 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 3.5 kHz | 850Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | PC Pins | 0.906" Dia (23.00mm) |
|

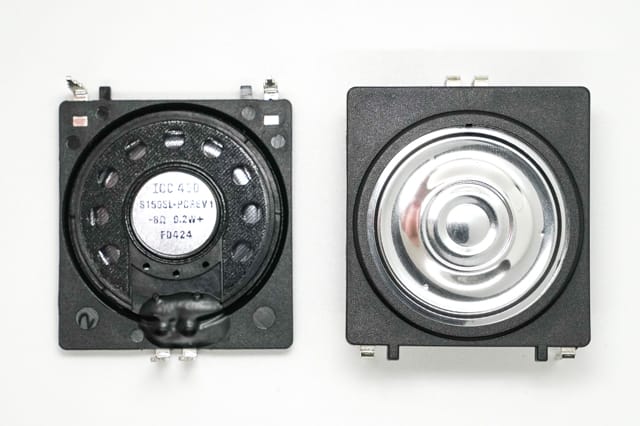

S150SL-PC REV.1SPEAKER 8OHM 250MW TOP PORT 79DB |
1,700 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 280 Hz ~ 7 kHz | 550Hz | 8 Ohms | 79.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | PC Pins | 1.693" L x 1.575" W (43.00mm x 40.00mm) |
|

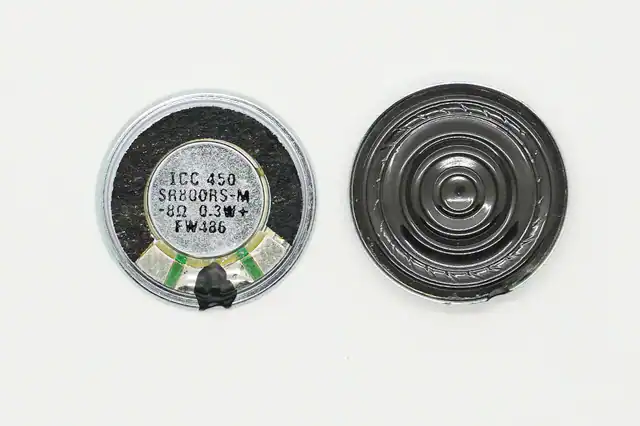

SR800RS-MSPEAKER 8OHM 300MW TOP PORT 76DB |
1,800 | - |
|
Datasheet | - | Tray | Active | Magnetic | Low Profile | 400 Hz ~ 6 kHz | 490Hz | 8 Ohms | 76.00 | 300mW/500mm | Sound Pressure Level (SPL) | 300 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
SR80X14VNSSPEAKER 8OHM 1W TOP PORT 82DB |
1,274 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 4 kHz | 560Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|

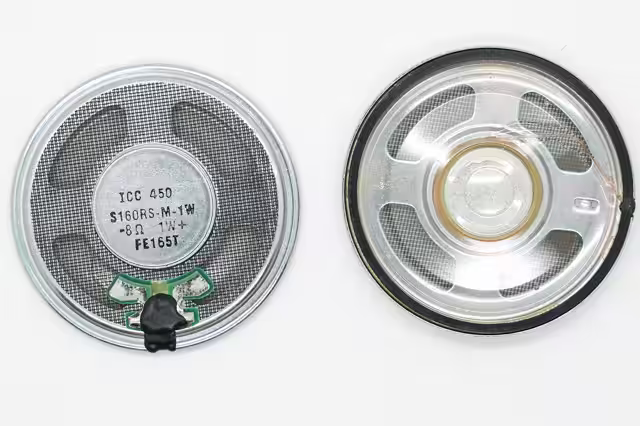

S160RS-M-1WSPEAKER 8OHM 1W TOP PORT 84DB |
600 | - |
|
Datasheet | - | Tray | Active | Magnetic | Low Profile | 200 Hz ~ 5 kHz | 430Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|

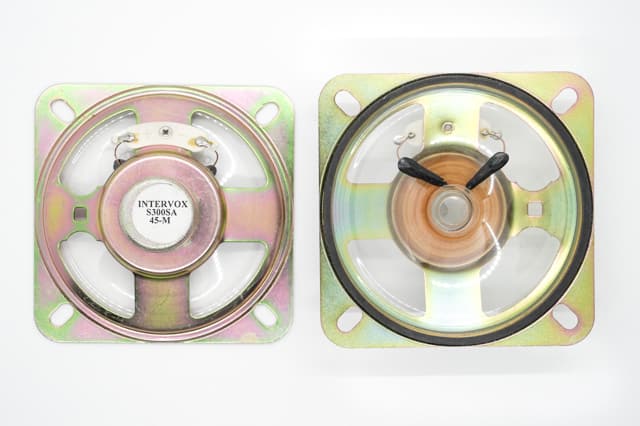

S300SASPEAKER 8OHM 250MW TOP PORT 90DB |
900 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 5 kHz | 250Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 3.031" L x 3.031" W (77.00mm x 77.00mm) |
|

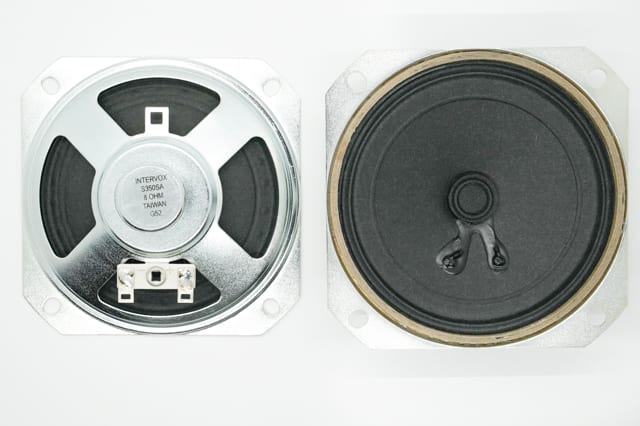

S350SASPEAKER 8OHM 1W TOP PORT 91DB |
120 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 210 Hz ~ 8.5 kHz | 210Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 3.622" L x 3.622" W (92.00mm x 92.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
