Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-16093-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
152 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-181325-078L100A-67SPEAKER 8OHM 700MW TOP PORT 93DB |
372 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
CMS-181325-078L100B-67SPEAKER 8OHM 700MW TOP PORT 93DB |
309 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS01506MS-SC11-WP-RSPEAKER 6OHM 700MW TOP PORT 92DB |
387 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP500408-2SPEAKER 8OHM 250MW TOP PORT 93DB |
955 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 4 kHz | 450Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SP-2506YSPEAKER 8OHM 1.5W TOP PORT 82DB |
562 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | - | - | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
SM180808-5SPEAKER 8OHM 1W TOP PORT |
384 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | - | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | - | - | - | - | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

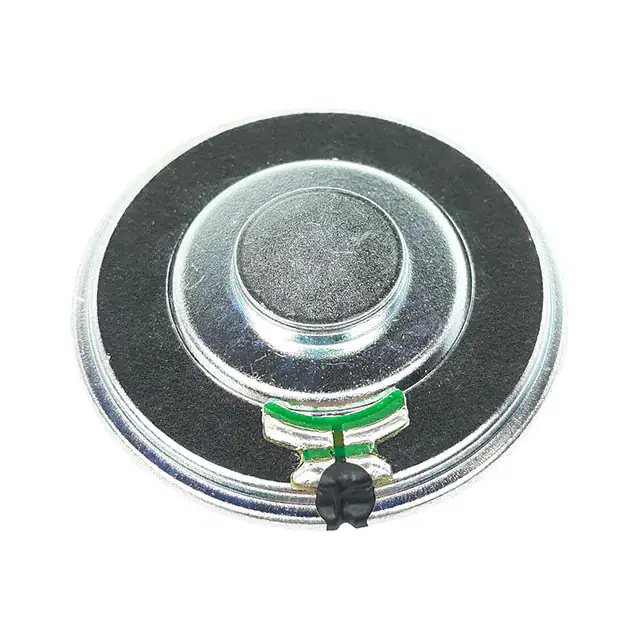

SP-5008SPEAKER 8OHM 1W TOP PORT 94DB |
130 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 94.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SM250508-2SPEAKER DYNAMIC |
430 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP400608-1SPEAKER 8OHM 500MW TOP PORT 92DB |
491 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
PSR40N08A01KSPEAKER 8OHM 1W TOP PORT |
104 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 500Hz | 8 Ohms | - | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SW250808-1SPEAKER 8OHM 500MW TOP PORT 92DB |
477 | - |
|
Datasheet | SW | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
WSP-3605-16YSPEAKR 16OHM 700MW TOP PORT 88DB |
161 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 16 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 700 mW | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
CMS-160916-30-3SPEAKER 6OHM 800MW TOP PORT 88DB |
983 | - |
|
Datasheet | CMS | Box | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 6 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SM170808-2SPEAKER 8OHM 700MW TOP PT 93.5DB |
296 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 93.50 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | - | - | - | - | 0.669" L x 0.472" W (17.00mm x 12.00mm) |
|
SW350608-1SPEAKER 8OHM 1.2W TOP PORT 90DB |
427 | - |
|
Datasheet | SW | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 10 kHz | 600Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.378" L x 0.984" W (35.00mm x 25.00mm) |
|
CES-20134-088PMBSPEAKER 8OHM 800MW TOP PORT 91DB |
389 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
|
SP-1813SSPEAKER 8OHM 500MW TOP PORT 85DB |
352 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 800Hz | 8 Ohms | 85.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
SM200808-1SPEAKER 8OHM 400MW TOP PORT 85DB |
552 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 400 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
CMS-3520-18NSPEAKER 8OHM 1W TOP PORT 85DB |
969 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
