Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

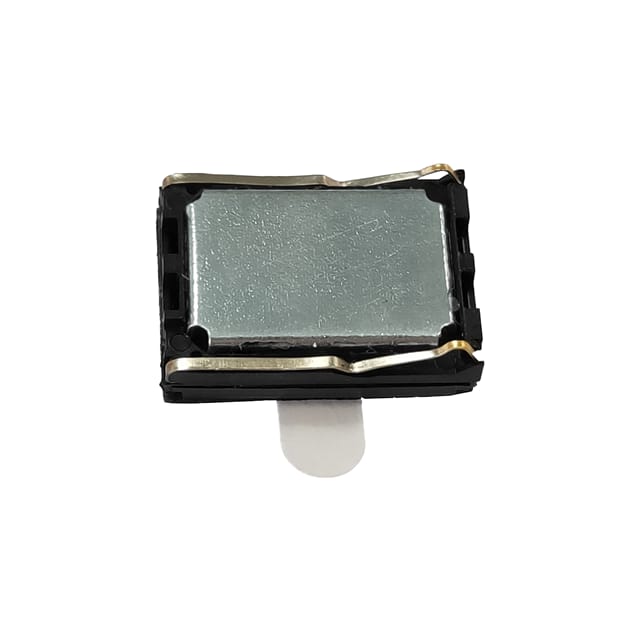

BMS1511F-11C-08H3.5RPSPEAKER 8OHM 700MW TOP PORT 89DB |
2,525 | - |
|
Datasheet | BMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SMS1515-08H04SPEAKER 8OHM 500MW TOP PORT 87DB |
160 | - |
|
Datasheet | SMS | Box | Active | Magnetic | General Purpose | 950 Hz ~ 950 Hz | 800Hz | 8 Ohms | 87.00 | 500mW/10cm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Square | - | Nd-Fe-B | - | - | - | 0.591" Dia (15.00mm) |
|

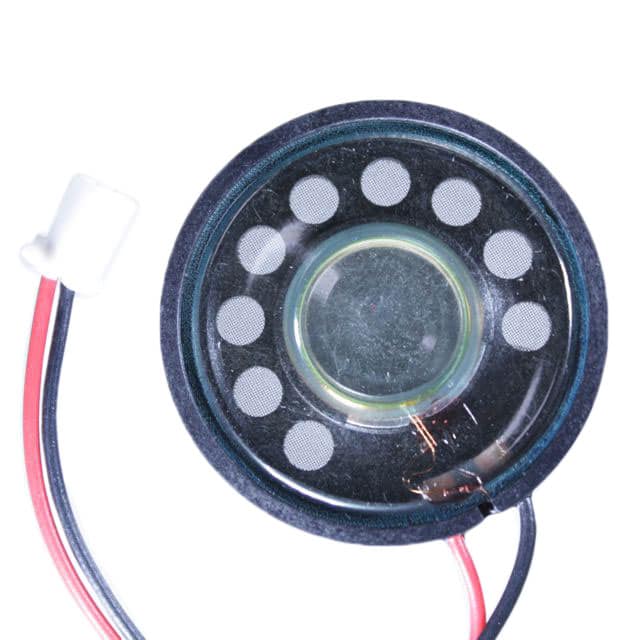

BMS36-11-50H5.0W80JSTSPEAKER 50OHM 500MW 87DB |
580 | - |
|
Datasheet | BMS | Box | Active | Magnetic | - | 600 Hz ~ 5 kHz | 600Hz | 50 Ohms | 87.00 | - | Sound Pressure Level (SPL) | 500 mW | 1 W | - | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.417" Dia (36.00mm) |
|
BMS3650LSPEAKER 50OHM 1W 79DB |
334 | - |
|
Datasheet | BMS | Box | Active | Magnetic | - | 350 Hz ~ 6 kHz | 540Hz | 50 Ohms | 79.00 | - | Sound Pressure Level (SPL) | 1 W | 1.5 W | - | Round | Polyethylenimine (PEI) | Nd-Fe-B | - | - | - | 1.417" Dia (36.00mm) |
|

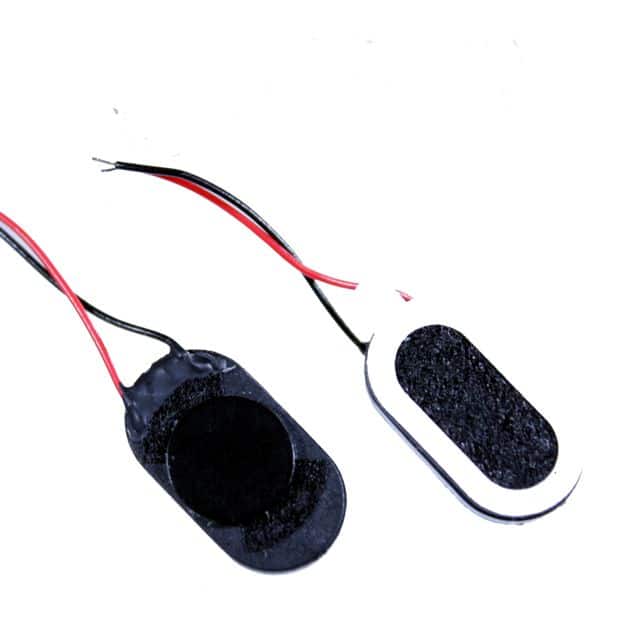

BMS1018-11C-08H05RW025SPEAKER 8OHM 800MW 86DB |
210 | - |
|
Datasheet | BMS | Box | Active | Magnetic | General Purpose | 1.4 kHz ~ 15 kHz | 1.4kHz | 8 Ohms | 86.00 | 100mW/100cm | Sound Pressure Level (SPL) | 800 mW | 1 W | - | Rectangle | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
|

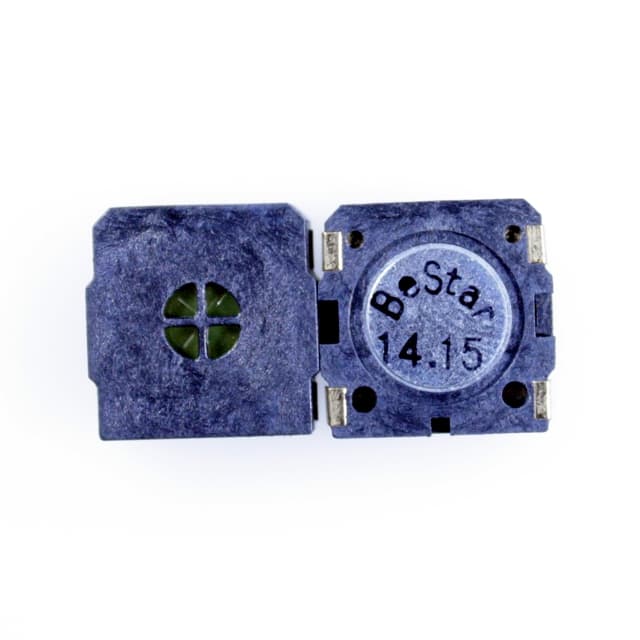

SMS1313-08H04SPEAKER 8OHM 700MW TOP PORT 88DB |
4,235 | - |
|
Datasheet | SMS | Box | Active | Magnetic | General Purpose | - | 1kHz | 8 Ohms | 88.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Square | - | - | - | - | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
|

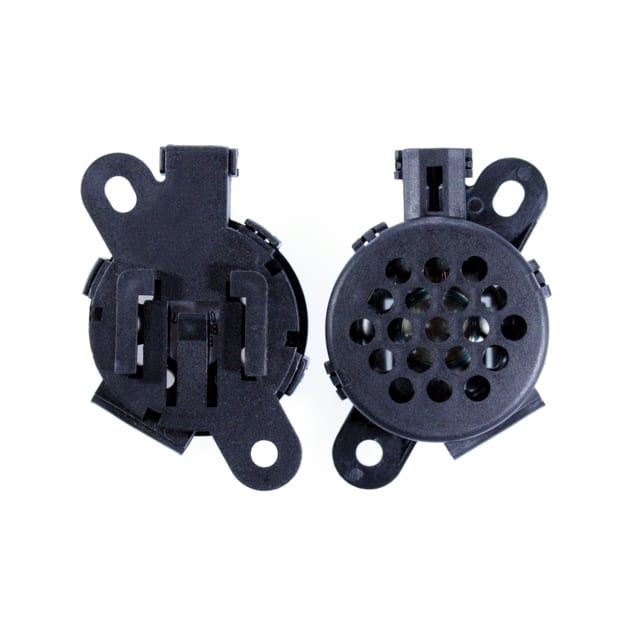

BMS3650CSPEAKER 50OHM 1W TOP PORT 79DB |
2,685 | - |
|
Datasheet | BMS | Box | Active | Magnetic | General Purpose | - | 540Hz | 50 Ohms | 79.00 | - | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Connector | 1.417" Dia (36.00mm) |
|

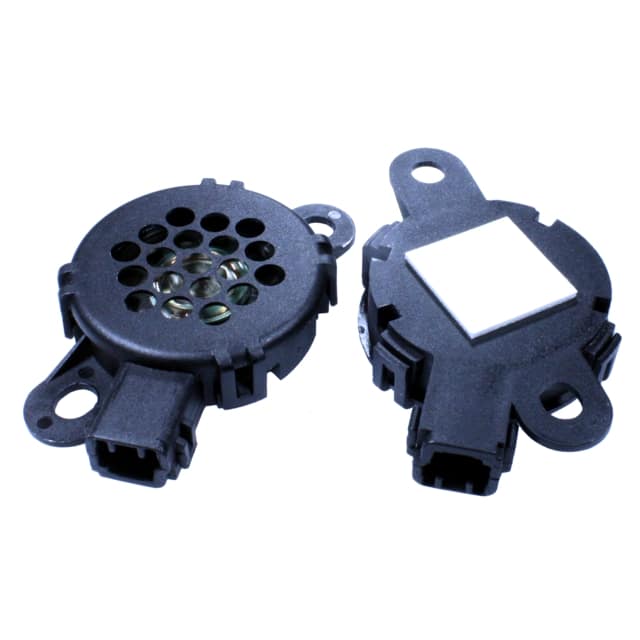

BDT4250LH13-02SPEAKER 50OHM 1W TOP PORT 79DB |
7,992 | - |
|
Datasheet | - | Tray | Active | Magnetic | - | 350 Hz ~ 6000 Hz | 540Hz | 50 Ohms | 79.00 | - | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | - | - | - | 1.614" Dia (41.00mm) |
|

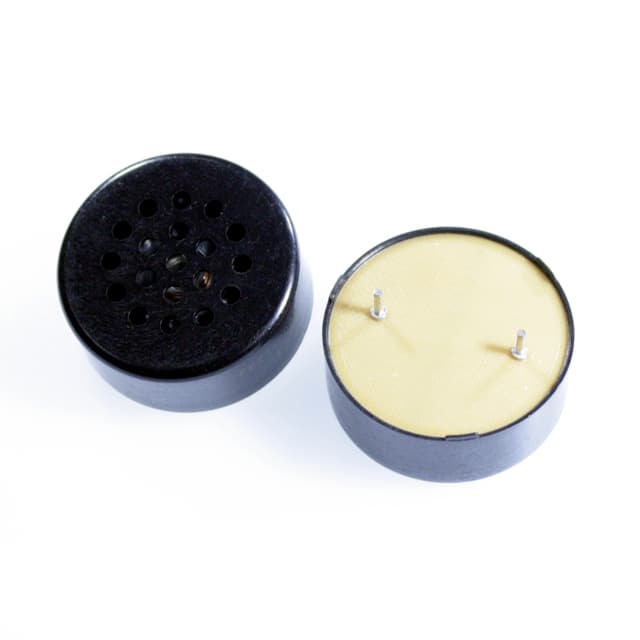

FE23100PCW-03SPEAKER 100OHM 150MW TOP PT 90DB |
788 | - |
|
Datasheet | FE | Box | Active | Magnetic | General Purpose | 1 kHz ~ 4 kHz | - | 100 Ohms | 90.00 | 250mW/100mm | Sound Pressure Level (SPL) | 150 mW | 300 mW | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B N35H | - | - | PC Pins | 1.181" Dia (30.00mm) |
|

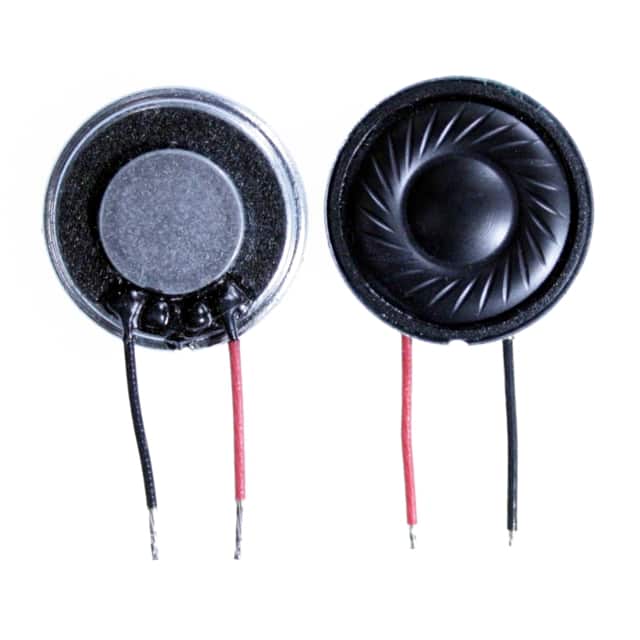

BMS20-12-08H3.2RW020-YLSPEAKER 8OHM 1W TOP PORT 87DB |
5,240 | - |
|
Datasheet | BMS | Box | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" Dia (20.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
