Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAC35-01W110-05-2CHAMBER ASSEMBLY |
799 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Side | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
|
CAC32-02W110-13-1XCHAMBER ASSEMBLY |
1,000 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 105.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round, Rectangular Frame | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.260" L x 0.787" W (32.00mm x 20.00mm) |
|
|
CS38-02P50-02-1SPEAKER 4OHM 2W 93DB |
988 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 500Hz | 4 Ohms | 93.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 1.496" L x 0.512" W (38.00mm x 13.00mm) |
|
|
CAC36-02W80-09-1CHAMBER ASSEMBLY |
995 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 111.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.417" L x 1.024" W (36.00mm x 26.00mm) |
|
CS25-02P95-05-1XSPEAKER 4OHM 2W TOP PORT 103DB |
998 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 4 Ohms | 103.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
|
CAC32-02W90-16-1XCHAMBER ASSEMBLY |
926 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX8 | - | Wire Leads with Connector | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|

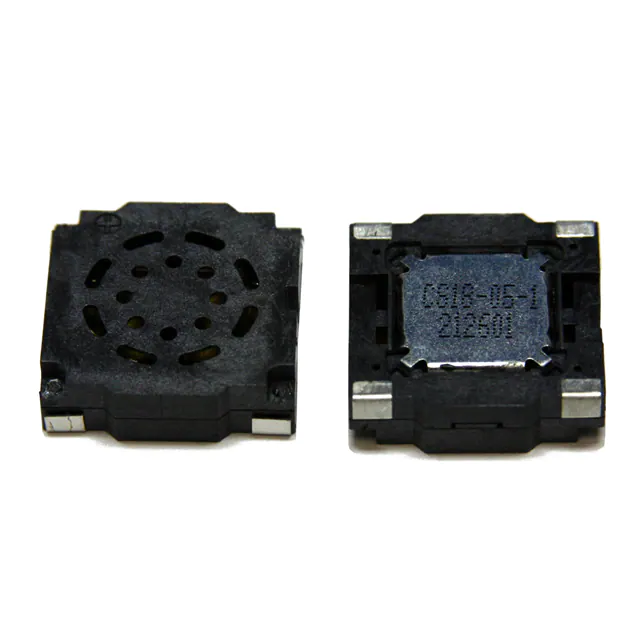

CS18-01S100-05-1SPEAKER 8OHM 1W TOP PORT 97DB |
1,906 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.709" L x 0.709" W (18.00mm x 18.00mm) |
|
|
CAC45-02W70-06-1CHAMBER ASSEMBLY |
769 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose, Enclosure Included | 560 Hz ~ 20 kHz | 700Hz | 4 Ohms | 92.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Side | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 1.783" L x 0.804" W (45.30mm x 20.41mm) |
|
|
CS32-03W23-16-1XSPEAKER 8OHM 3W 83DB |
1,000 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 20 kHz | 230Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | Foam | Nd-Fe-B | IP65 - Dust Tight, Waterproof Face | - | Wire Leads | 1.287" L x 1.248" W (32.70mm x 31.70mm) |
|
|
CAC44-01W85-15-1XCHAMBER ASSEMBLY |
737 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 10 kHz | 850Hz | 4 Ohms | 105.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.732" Dia (44.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
