Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS01008MR-3-LW100-RSPEAKER 8OHM 500MW TOP PORT 81DB |
2,065 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1.6kHz | 8 Ohms | 81.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.394" Dia (10.00mm) |
|
CMS-151135-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,270 | - |
|
Datasheet | CMS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1504-18SPEAKER 8OHM 1W TOP PORT 93DB |
1,313 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1kHz | 8 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B N42 | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
AS04008CO-2-LW100-RSPEAKER 8OHM 1.5W TOP PORT 84DB |
2,338 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
SP500508-1SPEAKER 8OHM 1W TOP PORT 104DB |
2,937 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 4.5 kHz | 550Hz | 8 Ohms | 104.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

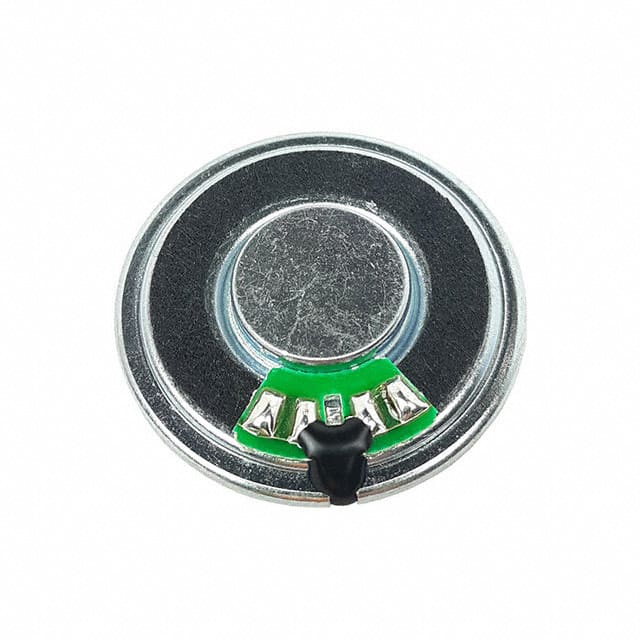

WSPH-3005SPEAKR 16OHM 250MW TOP PORT 90DB |
2,048 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181" Dia (30.00mm) |
|
PRT-20660SPEAKER 8OHM TOP PORT T/H |
2,553 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 1.36 kHz ~ 2.04 kHz | 20kHz | 8 Ohms | - | 300mW/100mm | - | - | 500 mW | Top | Round | - | Polybutylene Terephthalate (PBT) | - | Washable | PC Pins | 0.591" Dia (15.00mm) |
|
CES-2704-088L050ASPEAKER 8OHM 800MW TOP PORT 90DB |
3,619 | - |
|
Datasheet | CES | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.063" Dia (27.00mm) |
|
SP-2035SPEAKER 8OHM 1W TOP PORT 85DB |
4,889 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
3968SPEAKER 4OHM 3W TOP PORT |
2,696 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | 3 W | - | Top | Round | - | - | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
AS04004PO-2-LW152-WR-RSPEAKER 4OHM 3W TOP PORT 82DB |
2,397 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 420Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | Paper, Coated | Rare Earth | Water Resistant | IEC 60601-1-8 | Wire Leads | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
K 50 FL - 50 OHMSPEAKER 50OHM 1W TOP PORT 80DB |
1,633 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 50 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Plastic | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
SPM-2035NUSPEAKER 8OHM 2W TOP PORT 82DB |
2,656 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 10 kHz | 1.2kHz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.535" L x 0.787" W (39.00mm x 20.00mm) |
|
K 50 WP - 16 OHMSPEAKER 16OHM 2W TOP PORT 84DB |
2,331 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 180 Hz ~ 17 kHz | 300Hz | 16 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 1.969" Dia (50.00mm) |
|
1669SPEAKER 4OHM TOP PORT |
2,487 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | - | 3 W | Top | Oval, Rectangular Frame | - | - | - | - | Wire Leads | 2.756" L x 1.181" W (70.00mm x 30.00mm) |
|
AS03604MR-N50-RSPEAKER 4OHM 3W TOP PORT 85DB |
3,077 | - |
|
Datasheet | N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 200Hz | 4 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | - | IEC 60601-1-8 | Quick Connect | 1.417" Dia (36.00mm) |
|
SM870508-1SPEAKER 8OHM 10W TOP PORT 103DB |
3,878 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 7 kHz | 500Hz | 8 Ohms | 103.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 16 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
CSS-10237-54SPEAKER 4OHM 5W TOP PORT 90DB |
4,858 | - |
|
Datasheet | CSS | Box | Active | Magnetic | General Purpose | 160 Hz ~ 10 kHz | 200Hz | 4 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
AS04004MR-N50-WP-RSPEAKER 4OHM 5W TOP PORT 84DB |
2,577 | - |
|
Datasheet | N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 160Hz | 4 Ohms | 84.00 | 1W/500mm | Sensitivity | 5 W | 6 W | Top | Round | - | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | IEC 60601-1-8 | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
CES-403015-24130LSPEAKER 4OHM 2W TOP PORT 86DB |
2,174 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
