Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP570408-1SPEAKR 8OHM 500MW TOP PORT 101DB |
192 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 5 kHz | 420Hz | 8 Ohms | 101.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
SW151008-1SPEAKER 8OHM 500MW TOP PORT 87DB |
678 | - |
|
Datasheet | SW | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 10 kHz | 1kHz | 8 Ohms | 87.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|

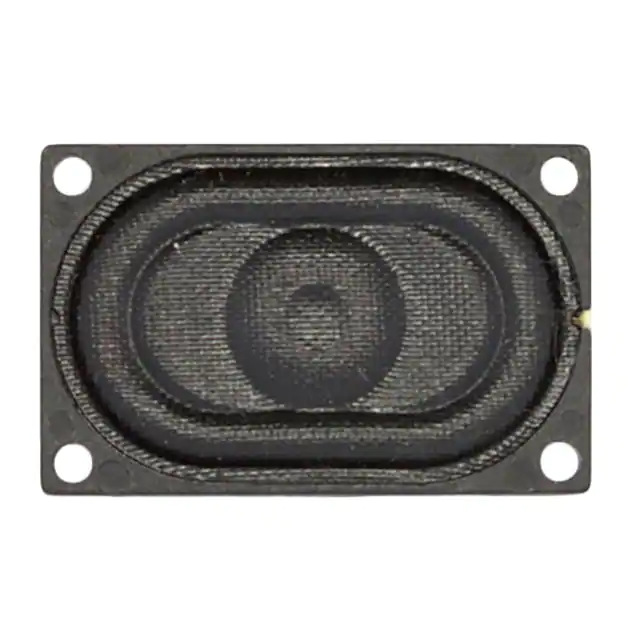

SC250708-1SPEAKER 8OHM 1W TOP PORT 96DB |
3,005 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 750Hz | 8 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Cloth | - | - | - | Wire Leads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
SW121308-3SPEAKER 8OHM 300MW TOP PORT 88DB |
129 | - |
|
Datasheet | SW | Bulk | Active | Magnetic | General Purpose | 1.3 kHz ~ 5 kHz | 1.3kHz | 8 Ohms | 88.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|

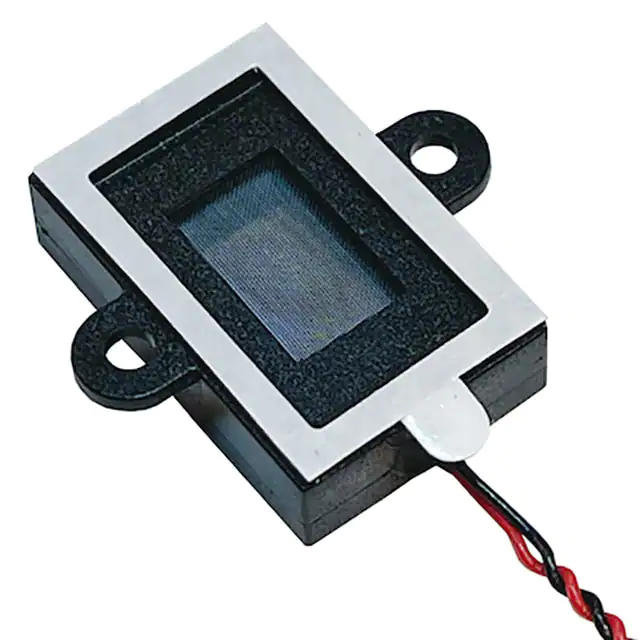

SW201308-1SPEAKER 8OHM 0.8W TOP PORT 93DB |
830 | - |
|
Datasheet | Agile 67 | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20000 Hz | 1.3kHz | 8 Ohms | 93.00 | 1W/10cm | Sound Pressure Level (SPL) | 0.8 W | 1 W | Top | Rectangular | Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.787" L x 0.512" W (20.00mm x 13.00mm) |
|
SW121308-2SPEAKER 8OHM 400MW TOP PORT 89DB |
251 | - |
|
Datasheet | SW | Bulk | Active | Magnetic | General Purpose | 1.3 kHz ~ 20 kHz | 1.3kHz | 8 Ohms | 89.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|

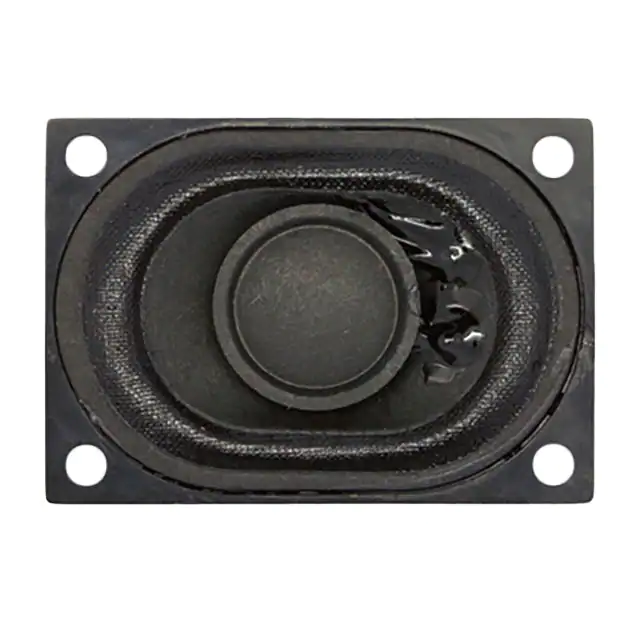

SC400308-1SPEAKER 8OHM 2W TOP PORT 97DB |
4,107 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 380Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|

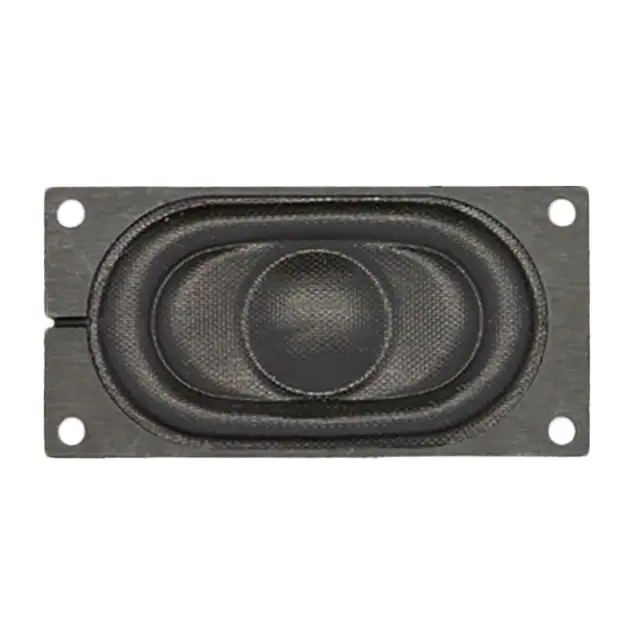

SC400608-1SPEAKER 8OHM 2W TOP PORT 90DB |
227 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
SW221408-1SPEAKER 8OHM 1W TOP PORT 92DB |
235 | - |
|
Datasheet | Agile 67 | Bulk | Active | Magnetic | General Purpose | 1.4 kHz ~ 10 kHz | 1.4kHz | 8 Ohms | 92.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.866" L x 0.512" W (22.00mm x 13.00mm) |
|
SC700208-1SPEAKER 8OHM 3W TOP PORT 91DB |
917 | - |
|
Datasheet | - | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 91.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
