Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBOM8TSPEAKER 3OHM 1000W TOP PORT |
2,969 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | - | 80 Hz ~ 18 kHz | - | 3 Ohms | - | - | - | 1000 W | - | Top | - | - | - | - | - | - | - |
|
BPH1204T138MW100 HFSPEAKER PIEZO HAPTIC ELEMENT |
1,943 | - |
|
Datasheet | - | Tray | Active | - | - | - | 38kHz | - | - | - | - | - | - | - | - | - | - | - | - | Wire Leads | - |
|
SOLARBOX8TSPEAKER TOP PORT SOLAR |
2,789 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | Top | - | - | - | - | - | - | - |
|
BPH2020T130MW200 HFSPEAKER SQUARE 20X20MM PIEZO |
4,755 | - |
|
Datasheet | - | Tray | Active | Piezo | - | - | 38kHz | - | - | - | - | - | - | - | Square | - | - | - | - | Wire Leads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
BPH2626T112MW200 HFSPEAKER SQUARE 26X26 PIEZO |
4,944 | - |
|
Datasheet | - | Tray | Active | Piezo | - | - | 38kHz | - | - | - | - | - | - | - | Square | - | - | - | - | Wire Leads | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
|
TBOM8T-2SPEAKER 3OHM 1000W TOP PORT QTY2 |
4,717 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | - | 80 Hz ~ 18 kHz | - | 3 Ohms | - | - | - | 1000 W | - | Top | - | - | - | - | - | - | - |
|
FLAG12DRTSPEAKER 4OHM 2000W TOP PORT |
3,180 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | - | 20 Hz ~ 18 kHz | - | 4 Ohms | - | - | - | 2000 W | - | Top | - | - | - | - | - | - | - |
|
SP-4005YSPEAKER 8OHM 1W TOP PORT 88DB |
3,821 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 5 kHz | 500Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SP-1511S-1SPEAKER 8OHM 700MW TOP PORT 83DB |
3,728 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 5 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | N42 | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-16098A-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
2,179 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 10 kHz | 550Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS01808AO-SC18-WP-RSPEAKER 8OHM 1W TOP PORT 94DB |
2,710 | - |
|
Datasheet | Slim Line Micro | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 14 kHz | 420Hz | 8 Ohms | - | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

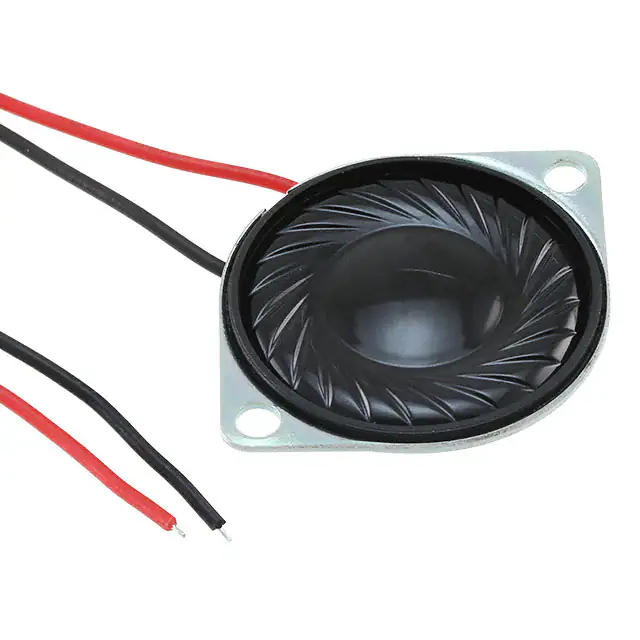

CMS-28528N-L152SPEAKER 8OHM 2W TOP PORT 99DB |
2,014 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
WSPH-1805WSPEAKER 8OHM 1W TOP PORT 86DB |
4,942 | - |
|
Datasheet | WSP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 950Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.709" Dia (18.00mm) |
|
CMS-23558N-L152SPEAKER 8OHM 1W TOP PORT 80DB |
1,668 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CLS0201MA-L152SPEAKER 8OHM 500MW TOP PORT 86DB |
4,514 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 86.00 | 1W/50mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
|
|
AS03608MR-10-RSPEAKER 8OHM 1W TOP PORT 91DB |
4,567 | - |
|
Datasheet | - | Box | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.417" Dia (36.00mm) |
|

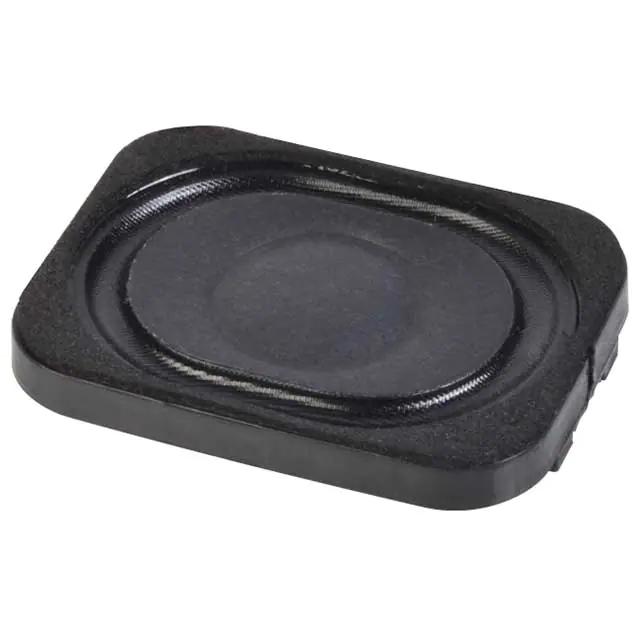

CDS-40304SPEAKER 4OHM 2W TOP PORT 79DB |
4,293 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-231210-18PMSPEAKER 8OHM 1W TOP PORT 88DB |
2,765 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181" L x 0.512" W (30.00mm x 13.00mm) |
|

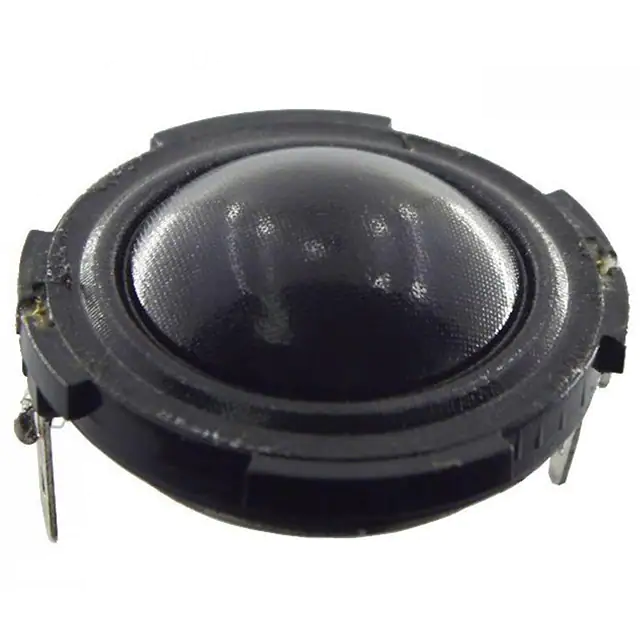

OC25SC65-04SPEAKER 3.2OHM 25W TOP PT 89.2DB |
3,948 | - |
|
Datasheet | OC | Bulk | Active | Magnetic | Tweeter | 1.3 kHz ~ 20 kHz | 1382.22Hz | 3.2 Ohms | 89.20 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 1.280" Dia (32.50mm) |
|
FRS 7 - 4 OHMSPEAKER 4OHM 8W TOP PORT 88DB |
4,355 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | - |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
