SCRs - Modules
Compare the current SCRs - Modules Thyristors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TZ600N16KOFHPSA1THYRISTOR MODULE 1600V 600A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 1 SCR | 1.6 kV | 669 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
T1190N14TOFVTXPSA1SCR MODULE 1800V 2800A DO200AC |
4 | - |
|
Datasheet | - | TO-200AC | Tray | Active | Single | 1 SCR | 1.8 kV | 1190 A | 2800 A | 2 V | 250 mA | 22500A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
TT425N18KOFHPSA2SCR MODULE 1.8KV 800A MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 471 A | 800 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD240N36KOFHPSA1SCR MODULE 3800V 700A MODULE |
6 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 3.8 kV | 446 A | 700 A | 1.5 V | 250 mA | 6100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD190N18SOFHPSA1SCR MODULE 1800V 275A MODULE |
8 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 190 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT280N16SOFHPSA1SCR MODULE 1.6KV 520A MODULE |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TD280N18SOFHPSA1SCR MODULE 1800V 520A MODULE |
6 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TD320N16SOFHPSA1THYRISTOR MODULE 1600V 320A |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | - | 150 mA | 130°C (TJ) | - | - | Chassis Mount |
|

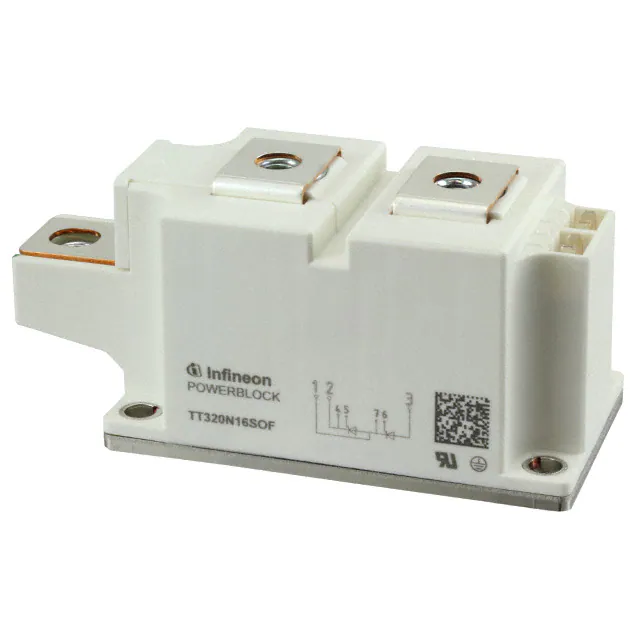

TT320N16SOFHPSA1THYRISTOR MODULE 1600V 320A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 320 A | 520 A | 2 V | 150 mA | - | 150 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
TT390N18SOFHPSA1SCR MODULE 1.8KV 520A MODULE |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
