SCRs - Modules
Compare the current SCRs - Modules Thyristors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT370N18KOFHPSA1THYR / DIODE MODULE DK |
6 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TD570N18KOFHPSA1THYR / DIODE MODULE DK |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

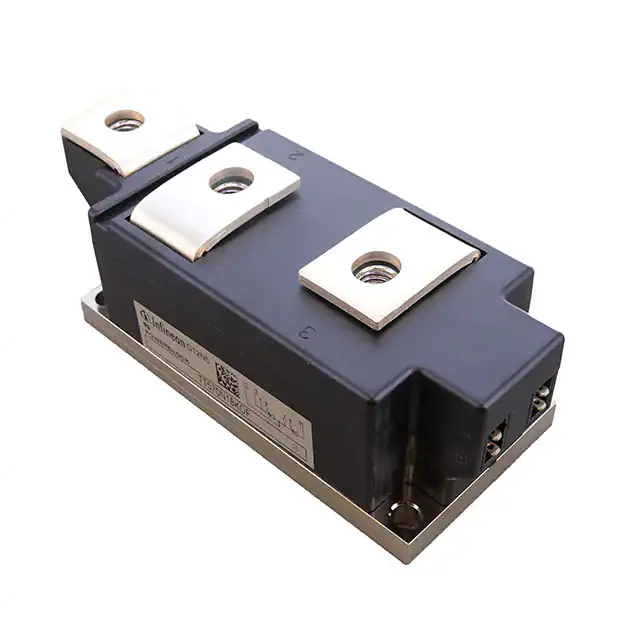

TT570N18KOFHPSA1THYR / DIODE MODULE DK |
2 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
.jpg "T3800N16TOFVTXPSA1")
|
T3800N16TOFVTXPSA1STD THYR/DIODEN DISC BG-T11126K- |
5,055 | - |
|
Datasheet | - | TO-200AE | Bulk | Active | Single | 1 SCR | 1.8 kV | 3800 A | 5970 A | 2.5 V | 250 mA | 63000A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT60N16SOFB01HPSA1SCR MODULE 1600V 90A MODULE |
15 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 2 SCRs | 1.6 kV | 55 A | 90 A | 2.5 V | 100 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT160N16SOFHPSA1SCR MODULE 1.6KV 275A MODULE |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
DD220N22SHPSA1LA-T-BOND MODULE |
8 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 273 A | 275 A | - | - | 5750A @ 50Hz | - | 130°C (TC) | - | - | Chassis Mount |
|
TD240N16SOFHPSA1LA-T-BOND MODULE |
8 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
TT240N16SOFHPSA1LA-T-BOND MODULE |
2 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
|
TT240N18SOFHPSA1LA-T-BOND MODULE |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
SCRs - Modules FAQ
How can I narrow the current SCRs - Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete SCRs - Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
