TVS Diodes
Browse available TVS Diodes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0V1BLZPESD5V0V1BL/SOD882/SOD2 |
6,666 | - |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 4.8A (8/20µs) | 45W | No | Ethernet, Telecom | 11pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESDSB2V5LB-TPESD,2.5V,DFN1006-2 |
4,653 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 2.5V | 2.9V | 10V | 10A (8/20µs) | 100W | No | General Purpose | 25pF @ 1MHz (Max) | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
DD2S06200LTVS DIODE 5.5VWM SSMINI2-F5-B |
9,266 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5.5V | 5.9V | - | - | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
ESDHD12BFXESDHD12BF/DFN1006/REEL 7" Q1/T1 |
6,373 | - |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 25V | 6A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD24BFXESDHD24BF/DFN1006/REEL 7" Q1/T1 |
2,069 | - |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | 48V | 5A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD15BFXESDHD15BF/DFN1006/REEL 7" Q1/T1 |
5,224 | - |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.5V | 35V | 7A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
SED8C05L01TVS ESD SOD-882 5V 18V |
9,916 | - |
|
Datasheet | SOD-882 | SED8C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.2V | 18V | 25A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
ESDHSLC5V0AE2-TPESD PROTECTION DEVICES,0201-A |
7,905 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDZV201-1BF4DFD PROTECTION |
7,781 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESDSB7V0AE2-TPTVS DIODES |
5,191 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 7.2V | 14V | 6A (8/20µs) | 84W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
LAQ02C05L01TVS ESD 0201 5V 10V |
8,610 | - |
|
Datasheet | 0201 (0603 Metric) | LAQ02C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 10V (Typ) | 3A (8/20µs) | - | No | General Purpose | 8pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02A12L01TVS ESD 0201 12V 25V |
9,478 | - |
|
Datasheet | 0201 (0603 Metric) | LAQ02AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13V | 25V | 2.5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02C03L01TVS ESD 0201 3.3V 10V |
3,561 | - |
|
Datasheet | 0201 (0603 Metric) | LAQ02C03L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 7A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
CPDZD3V3HE-HFDIODE ESD 3.3VWM 80W DFN0603-2L |
3,370 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 10V | 8A (8/20µs) | 80W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
CPDZ5V0HE-HFDIODE ESD 5VWM 70W 0201/DFN0603- |
4,168 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.6V | 11V | 7A (8/20µs) | 70W | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN0603-2L |
|
|
DZ2S22000LTVS DIODE 17VWM SSMINI2-F5-B |
8,730 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 17V | 20.9V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
D5V0HE1U2LP-7BGENERAL PROTECTION PP X1-DFN1006 |
5,147 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D6V3HE1U2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
5,546 | - |
|
Datasheet | - | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

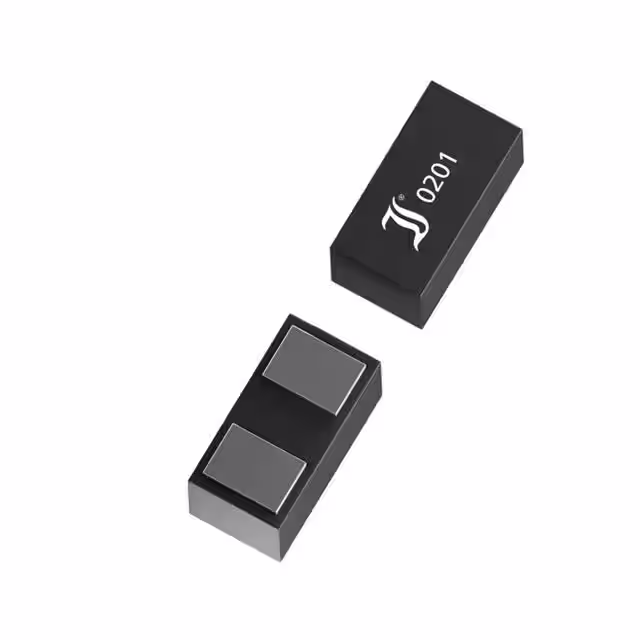

ESD03B3ZTVS DIODE 3.3VWM 9.5VC 0201 |
2,291 | - |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V | 3.7V | 9.5V | 21A (8/20µs) | 170W | No | - | - | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
ESD0541ZTVS DIODE 5VWM 15VC 0201 |
8,814 | - |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 15V | 2A (8/20µs) | 25W | No | General Purpose | 6.5pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
TVS Diodes FAQ
What TVS Diodes components can I source from EGOO?
You can browse available TVS Diodes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete TVS Diodes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
