Wireless Charging Coils
Compare the current Wireless Charging Coils Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

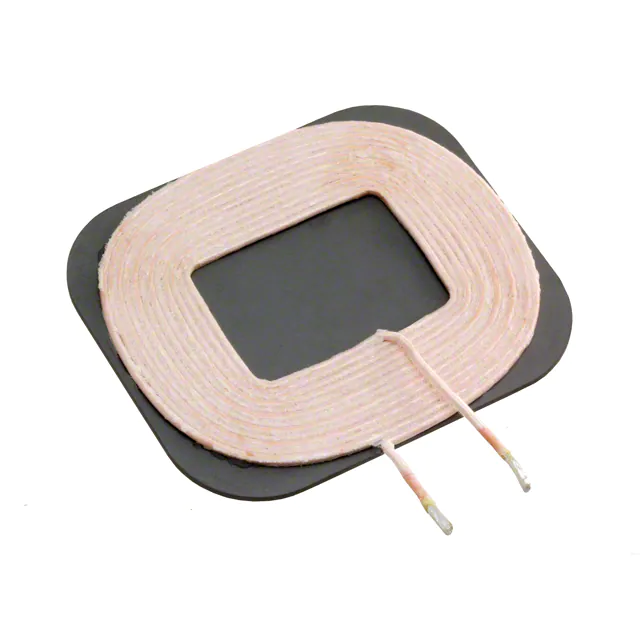

SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 | - |
|
Datasheet | SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|
RWC5050AK060-500TX 1 COIL 1 LAYER 6.5UH |
1,399 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 50mOhm Max | 70 @ 100kHz | - | - | - | -40°C ~ 125°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
RWC5353EJ240-501TX 1 COIL 2 LAYER 24UH 5.5A |
4,076 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

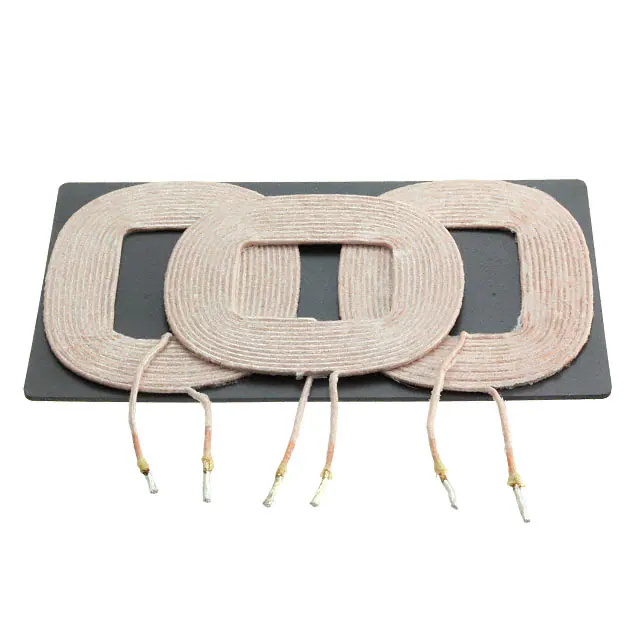

SWC10056AA120-500TRANSMITTER 3 COIL 1 LAYER |
4,650 | - |
|
Datasheet | SWC | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) |
|
RWC5353EJ240-500TX 1 COIL 2 LAYER 24UH 5.5A |
3,971 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

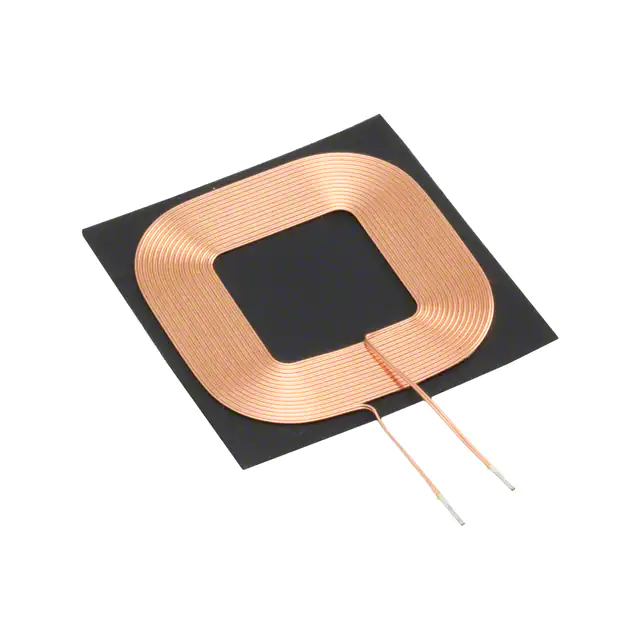

SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
2,536 | - |
|
Datasheet | SWC | Box | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
Wireless Charging Coils FAQ
How can I narrow the current Wireless Charging Coils selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Wireless Charging Coils parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
