Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
WT202012-15F2-ID TX 1 COIL 2 LYR 6.2UH TDK Corporation	10,954	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	6.2µH	±5%	80mOhm	-	-	-	-	-	0.80" Dia x 0.10" H (20.3mm x 2.7mm)
WR202010-18M8-ID RX 1 COIL 2 LYR 11UH TDK	0	1+：$3.58000 10+：$2.94700 45+：$2.59378 90+：$2.44567 135+：$2.36304 270+：$2.22833 540+：$2.10144 1035+：$1.98911 2520+：$1.89500	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	11µH	±5%	350mOhm	-	-	-	-	-	0.79" Dia x 0.03" H (20.0mm x 0.8mm)

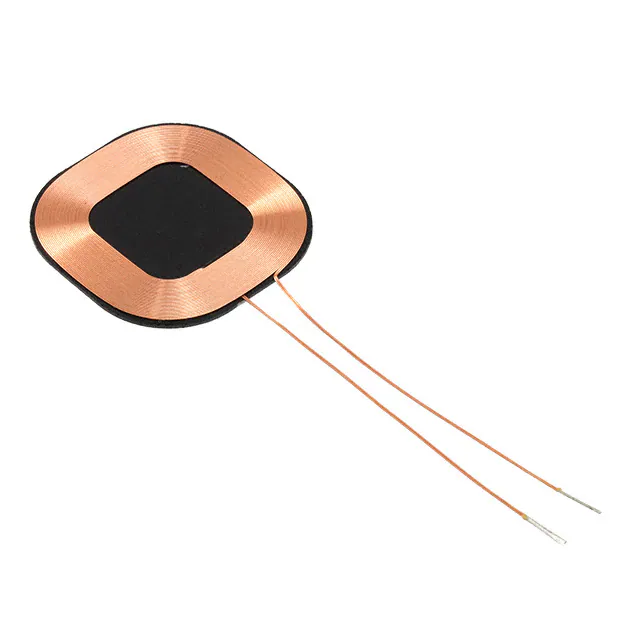

WR303050-15F5-G RX 1 COIL 2 LYR 12.3UH TDK	9,586	1+：$3.35000 24+：$2.55917 48+：$2.41271 72+：$2.33111 120+：$2.23233 264+：$2.08807 504+：$1.97692 1008+：$1.86449 2520+：$1.75927	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	12.3µH	-	410mOhm	-	-	-	-	-	1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm)
WT303012-12F2-ID TX 1 COIL 2 LYR 6.3UH TDK Corporation	2,281	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	6.3µH	±5%	90mOhm	-	-	-	-	-	1.18" Dia x 0.08" H (30.0mm x 2.0mm)

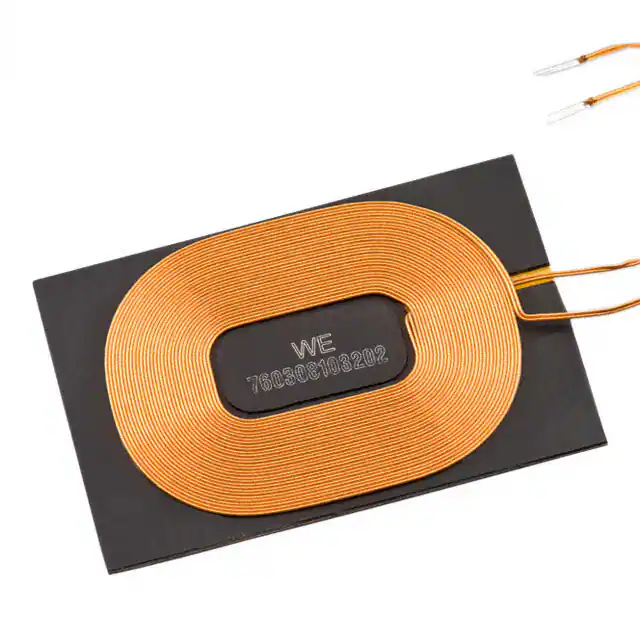

760308103202 RX 1 COIL 1 LYR BIFILAR 12UH Würth Elektronik	1,322	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer, Bifilar	12µH	±10%	160mOhm	33 @ 125kHz	2.9A	6A	25MHz	-20°C ~ 105°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
760308101214 RX 1 COIL 3 LAYER 26UH 1.1A Würth Elektronik	570	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 3 Layer	26µH	±10%	520mOhm Max	25 @ 125kHz	1.1A	2A	11MHz	-20°C ~ 105°C	0.75" Dia x 0.03" H (19.0mm x 0.8mm)
760308101220 RX 1 COIL 3 LAYER BIFILAR 12.6UH Würth Elektronik	0	1+：$8.08000 10+：$7.68600 32+：$7.12500 64+：$6.46000	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer, Bifilar	12.6µH	±10%	340mOhm Max	20 @ 125kHz	1.1A	2.5A	19MHz	-20°C ~ 105°C	0.67" Dia x 0.03" H (17.0mm x 0.8mm)

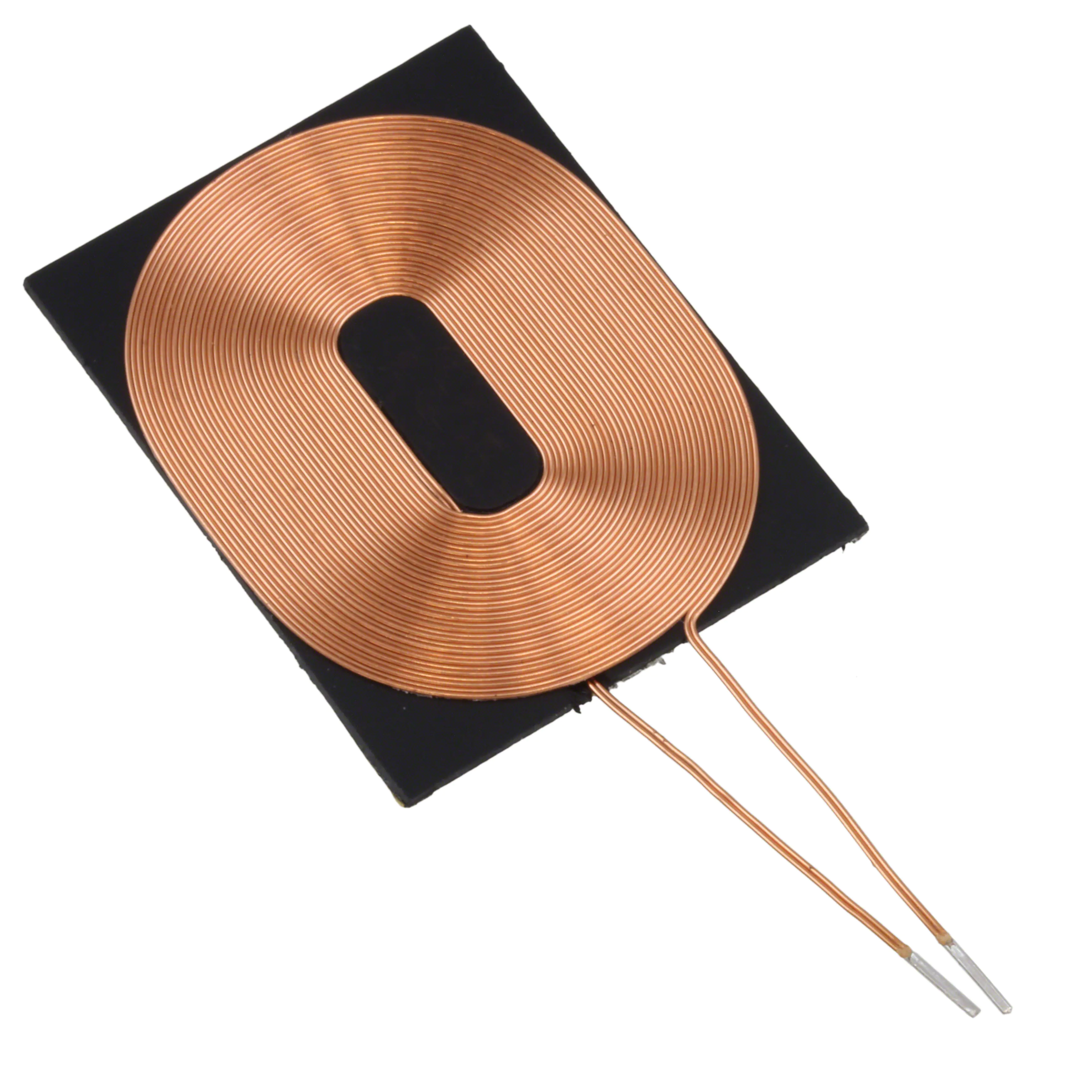

760308103205 RX 1 COIL 1 LYR BIFILAR 11UH Würth Elektronik	754	-	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer, Bifilar	11µH	±10%	180mOhm	30 @ 125kHz	2.5A	4A	16MHz	-20°C ~ 105°C	1.34" L x 1.04" W x 0.04" H (34.0mm x 26.5mm x 0.9mm)
760308101104 TX 1 COIL 2 LAYER 6.3UH 2.5A Würth Elektronik	573	-	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±10%	125mOhm Max	42 @ 125kHz	2.5A	6A	20MHz	-20°C ~ 105°C	0.81" Dia x 0.10" H (20.5mm x 2.6mm)
IWAS3010AZEB130KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	2,115	1+：$1.73000 10+：$1.42200 25+：$1.31600 50+：$1.24060 100+：$1.16970 250+：$1.08220 500+：$1.02046 1080+：$0.95607 3240+：$0.87137	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	12.9µH	±10%	780mOhm Max	11 @ 100kHz	800mA	-	-	-40°C ~ 85°C	1.18" L x 0.39" W x 0.03" H (30.0mm x 10.0mm x 0.7mm)
WR301025-19M8-G RX 1 COIL 2 LYR 12.8UH TDK Corporation	8,188	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	12.8µH	-	1.27Ohm Max	-	-	-	-	-	-
IWTX50R0DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,874	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C	1.97" Dia x 0.16" H (50.0mm x 4.0mm)
WR221230-36M8-G RX 1 COIL 2 LYR 27.9UH TDK Corporation	939	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	27.9µH	-	1.21Ohm Max	-	-	-	-	-	-
IWTX50R0CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,440	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
WR151580-48F2-G RX 1 COIL 4 LYR 27.1UH TDK Corporation	636	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 4 Layer	27.1µH	-	500mOhm	-	-	-	-	-	0.59" Dia x 0.10" H (15.0mm x 2.6mm)
IWAS3827ABEB110JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	1,737	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	185mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C	1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm)
WT151512-22F2-ID TX 1 COIL 2 LYR 6.8UH TDK Corporation	2,474	-	RFQ	Datasheet	WT	Box	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±5%	170mOhm	-	-	-	-	-	0.60" Dia x 0.09" H (15.3mm x 2.2mm)

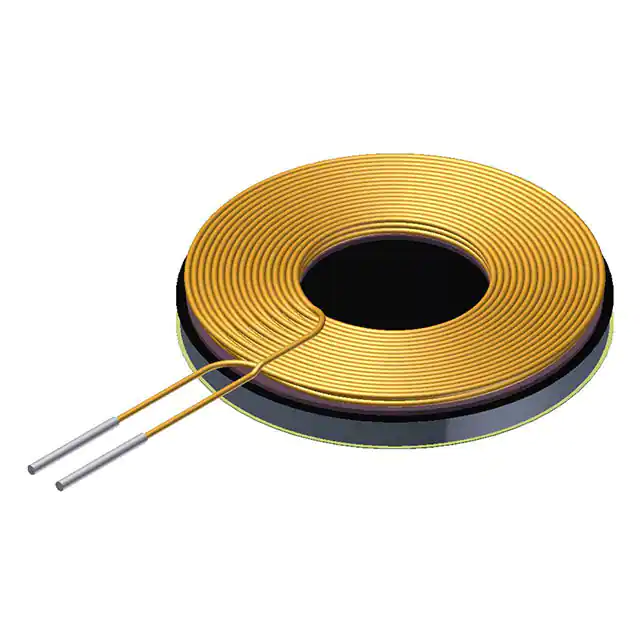

WR111180-49F5-G RX 1 COIL 3 LYR 31.8UH TDK Corporation	151	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 3 Layer	31.8µH	±5%	1.34Ohm	-	-	-	-	-	0.43" Dia x 0.07" H (11.0mm x 1.7mm)
WR202010-18M8-SM RX 1 COIL 2 LYR 10.68UH TDK Corporation	290	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	10.68µH	±5%	350mOhm	-	-	-	-	-	0.79" Dia x 0.03" H (20.0mm x 0.8mm)
WT202080-28F2-G TX 1 COIL 4 LYR 20.9UH TDK Corporation	463	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 4 Layer	20.9µH	-	300mOhm	-	-	-	-	-	0.79" Dia x 0.11" H (20.0mm x 2.7mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
