Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF1260-150MINDUCT ARRAY 2 COIL 15UH SMD |
3,002 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 4.27 A | 2.13 A | 5.69 A | 2.85 A | 32.9mOhm Max | 125mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-100MINDUCT ARRAY 2 COIL 10UH SMD |
2,454 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 5.35 A | 2.67 A | 7.17 A | 3.59 A | 24.6mOhm Max | 93.4mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ74-220-RINDUCT ARRAY 2 COIL 21.73UH SMD |
4,107 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 21.73 µH | 86.92 µH | ±20% | 1.75 A | 874 mA | 2.13 A | 1.07 A | 92.5mOhm | 371mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
DRQ125-330-RINDUCT ARRAY 2 COIL 33.74UH SMD |
3,839 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.74 µH | 135 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 50.5mOhm | 203mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1260A-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
1,667 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 10.9 A | 5.46 A | 15 A | 7.5 A | 8.5mOhm Max | 33.3mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
DRQ74-150-RINDUCT ARRAY 2 COIL 16.09UH SMD |
3,545 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.09 µH | 64.36 µH | ±20% | 2.11 A | 1.05 A | 2.48 A | 1.24 A | 63.7mOhm | 255mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
|
DRQ74-100-RINDUCT ARRAY 2 COIL 9.882UH SMD |
5,569 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.882 µH | 39.53 µH | ±20% | 2.41 A | 1.2 A | 3.17 A | 1.58 A | 48.9mOhm | 196mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|

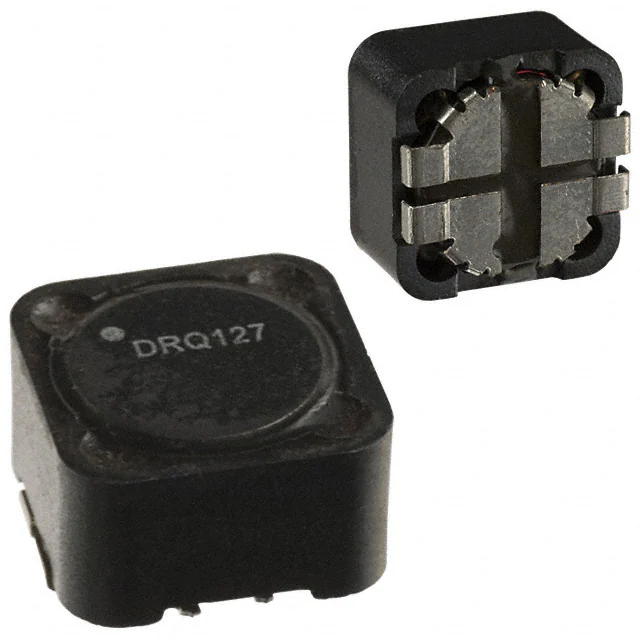

DRQ127-150-RINDUCT ARRAY 2 COIL 14.09UH SMD |
11,349 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.09 µH | 56.36 µH | ±20% | 5.03 A | 2.51 A | 9.66 A | 4.83 A | 24.7mOhm | 99mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DRQ127-6R8-RINDUCT ARRAY 2 COIL 7.387UH SMD |
203 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 7.387 µH | 29.55 µH | ±20% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 11.6mOhm | 46.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
B82472D6223M000FIXED IND 22UH 1.65A 193 MOHM |
5,535 | - |
|
Datasheet | B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | - | 1.65 A | 2.55 A | 1.275 A | 96.5mOhm Max | 386mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
B82472D6472M000FIXED IND 4.7UH 3.3A 53 MOHM SMD |
2,264 | - |
|
Datasheet | B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | - | 3.3 A | 5.45 A | 2.725 A | 26.5mOhm Max | 106mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
SRF1280-220MINDUCT ARRAY 2 COIL 22UH SMD |
217 |
1+：$1.85000 10+：$1.67200 25+：$1.60600 50+：$1.55740 100+：$1.51020 |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 4 A | 2 A | 7.57 A | 3.78 A | 50.3mOhm Max | 192mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-470MINDUCT ARRAY 2 COIL 47UH SMD |
3,671 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.95 A | 1.47 A | 5.28 A | 2.64 A | 89.8mOhm Max | 353mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-680MINDUCT ARRAY 2 COIL 68UH SMD |
1,105 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.44 A | 1.22 A | 4.44 A | 2.22 A | 123mOhm Max | 469mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-4R7YINDUCT ARRAY 2 COIL 4.7UH SMD |
2,380 |
1+：$1.85000 10+：$1.67200 25+：$1.60600 50+：$1.55740 100+：$1.51020 |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 8.25 A | 4.13 A | 16.5 A | 8.24 A | 13.5mOhm Max | 50mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

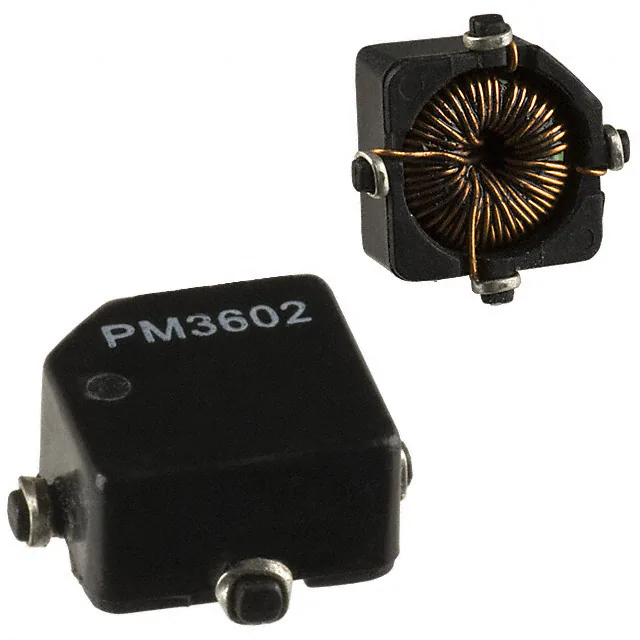

PM3602-300-RCINDUCT ARRAY 2 COIL 300UH SMD |
4,799 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±20% | 320 mA | 160 mA | - | - | 1.31Ohm Max | 5.24Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
DRQ127-100-RINDUCT ARRAY 2 COIL 10.47UH SMD |
2,126 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 10.47 µH | 41.88 µH | ±20% | 6.04 A | 3.02 A | 11.2 A | 5.6 A | 17.2mOhm | 68.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ73-470-RINDUCT ARRAY 2 COIL 48.62UH SMD |
1,280 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 48.62 µH | 194.5 µH | ±20% | 1.08 A | 542 mA | 1.14 A | 570 mA | 241mOhm | 965mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
PM3604-20-RCINDUCT ARRAY 2 COIL 20UH SMD |
681 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 20 µH | 80 µH | ±20% | 2.02 A | 1.01 A | - | - | 49mOhm Max | 200mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
74489440100INDUCT ARRAY 2 COIL 10UH SMD |
1,245 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 1.35 A | 675 mA | 2.6 A | 1.3 A | 128mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
