Arrays, Signal Transformers
Compare the current Arrays, Signal Transformers Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744877220INDUCT ARRAY 2 COIL 22UH SMD |
4,039 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 800 mA | 400 mA | 1.8 A | 900 mA | 260mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
74489440100INDUCT ARRAY 2 COIL 10UH SMD |
1,245 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 1.35 A | 675 mA | 2.6 A | 1.3 A | 128mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|

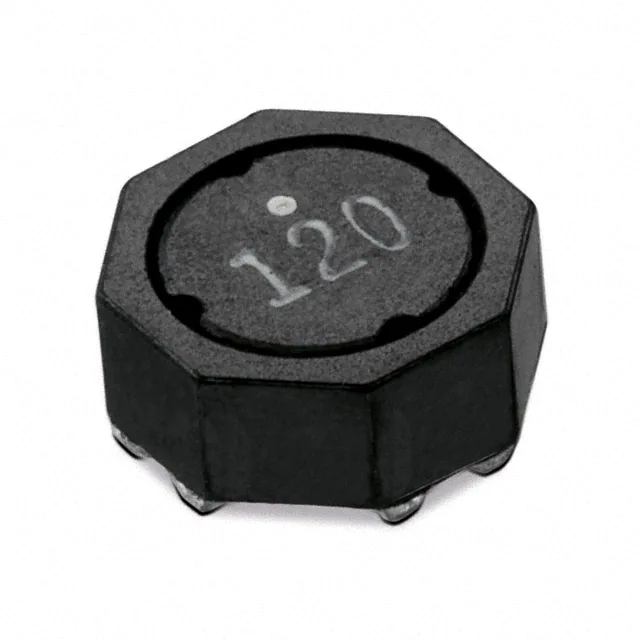

74489440047INDUCT ARRAY 2 COIL 4.7UH SMD |
600 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 1.85 A | 925 mA | 4.2 A | 2.1 A | 64mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
74489440068INDUCT ARRAY 2 COIL 6.8UH SMD |
471 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 1.45 A | 725 mA | 3.2 A | 1.6 A | 100mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
744878100INDUCT ARRAY 2 COIL 10UH SMD |
7,740 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 1 A | 500 mA | 2 A | 1 A | 150mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.157" (4.00mm) |
|
|
744878004INDUCT ARRAY 2 COIL 4.7UH SMD |
2,579 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.35 µH | 9.4 µH | ±20% | 1.3 A | 650 mA | 3 A | 1.5 A | 75mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.157" (4.00mm) |
|
744877008INDUCT ARRAY 2 COIL 8.2UH SMD |
517 |
1+：$2.53000 10+：$2.41000 50+：$2.24000 100+：$2.06000 500+：$1.89000 |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.1 µH | 16.4 µH | ±20% | 1.7 A | 850 mA | 2.9 A | 1.45 A | 110mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
744878006INDUCT ARRAY 2 COIL 6.8UH SMD |
416 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.4 µH | 13.6 µH | ±20% | 1.4 A | 700 mA | 2.8 A | 1.4 A | 135mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.157" (4.00mm) |
|
744870471WE-DD SMT SHIELDED COUPLED INDUC |
126 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 235 µH | 940 µH | ±20% | 700 mA | 350 mA | 900 mA | 450 mA | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
744871100INDUCT ARRAY 2 COIL 10UH SMD |
838 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 2 A | 1 A | 5 A | 2.5 A | 50mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
Arrays, Signal Transformers FAQ
How can I narrow the current Arrays, Signal Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Arrays, Signal Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
