Arrays, Signal Transformers
Compare the current Arrays, Signal Transformers Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448841100INDUCT ARRAY 2 COIL 10UH SMD |
7,768 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.2 A | - | 1.5 A | - | 300mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841470INDUCT ARRAY 2 COIL 47UH SMD |
1,584 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 600 mA | - | 700 mA | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
744870680INDUCT ARRAY 2 COIL 68UH SMD |
1,782 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 136 µH | ±20% | 1.35 A | 675 mA | 3 A | 1.5 A | 215mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
7448709220INDUCT ARRAY 2 COIL 22UH SMD |
423 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.5 A | 1.25 A | 5 A | 2.5 A | 80mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
74488540250INDUCT ARRAY 2 COIL 25UH SMD |
1,558 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|

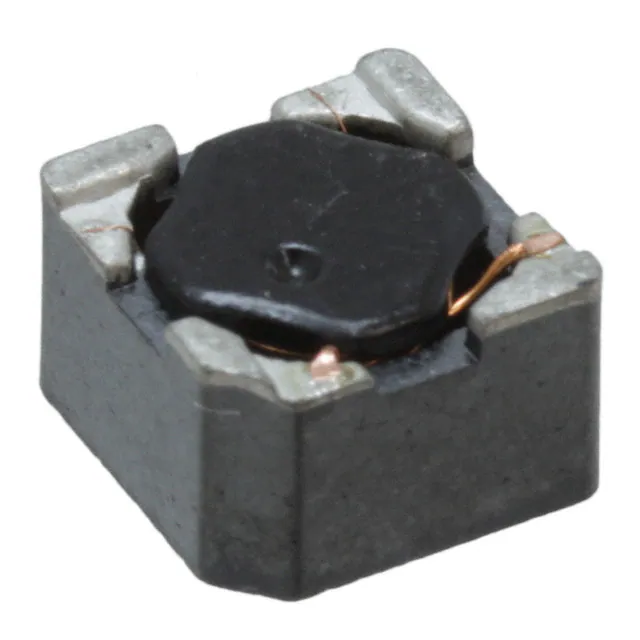

74488540070INDUCT ARRAY 2 COIL 7.5UH SMD |
364 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | 1.9 A | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540120INDUCT ARRAY 2 COIL 13UH SMD |
287 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
74485540101INDUCT ARRAY 2 COIL 10UH SMD |
782 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 13 A | - | 13.5 A | - | 13.9mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
74485540220INDUCT ARRAY 2 COIL 2.2UH SMD |
3,499 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 18 A | 9 A | 35 A | 17.5 A | 6.72mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540170INDUCT ARRAY 2 COIL 1.7UH SMD |
303 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 1.7 µH | 6.8 µH | ±20% | 21 A | 10.5 A | 39 A | 19.5 A | 5.28mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
Arrays, Signal Transformers FAQ
How can I narrow the current Arrays, Signal Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Arrays, Signal Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
