Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3602-15-B-RCINDUCT ARRAY 2 COIL 15UH SMD |
3,688 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 15 µH | 60 µH | ±20% | 1.45 A | 730 mA | - | - | 63mOhm Max | 250mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-20-B-RCINDUCT ARRAY 2 COIL 20UH SMD |
4,506 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 20 µH | 80 µH | ±20% | 1.25 A | 630 mA | - | - | 86mOhm Max | 340mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-33-B-RCINDUCT ARRAY 2 COIL 33UH SMD |
2,469 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 33 µH | 132 µH | ±20% | 980 mA | 490 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-68-B-RCINDUCT ARRAY 2 COIL 68UH SMD |
1,825 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 720 mA | 360 mA | - | - | 260mOhm Max | 1.04Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-100-B-RCINDUCT ARRAY 2 COIL 100UH SMD |
4,719 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 100 µH | 400 µH | ±20% | 580 mA | 290 mA | - | - | 400mOhm Max | 1.6Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-250-B-RCINDUCT ARRAY 2 COIL 250UH SMD |
1,119 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 250 µH | 1 mH | ±20% | 330 mA | 170 mA | - | - | 1.19Ohm Max | 4.76Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-200-B-RCINDUCT ARRAY 2 COIL 200UH SMD |
2,440 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 200 µH | 800 µH | ±20% | 400 mA | 200 mA | - | - | 840mOhm Max | 3.36Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
PM3604-25-B-RCINDUCT ARRAY 2 COIL 25UH SMD |
3,845 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 25 µH | 100 µH | ±20% | 1.91 A | 960 mA | - | - | 54mOhm Max | 220mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-68-B-RCINDUCT ARRAY 2 COIL 68UH SMD |
2,905 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 1.19 A | 600 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-100-B-RCINDUCT ARRAY 2 COIL 100UH SMD |
1,989 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 100 µH | 400 µH | ±20% | 980 mA | 490 mA | - | - | 210mOhm Max | 840mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-150-B-RCINDUCT ARRAY 2 COIL 150UH SMD |
4,232 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 150 µH | 600 µH | ±20% | 780 mA | 390 mA | - | - | 320mOhm Max | 1.28Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
DRQ73-1R5-RINDUCT ARRAY 2 COIL 1.482UH SMD |
2,192 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.482 µH | 5.928 µH | ±20% | 4.64 A | 2.32 A | 6.52 A | 3.26 A | 13.2mOhm | 52.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

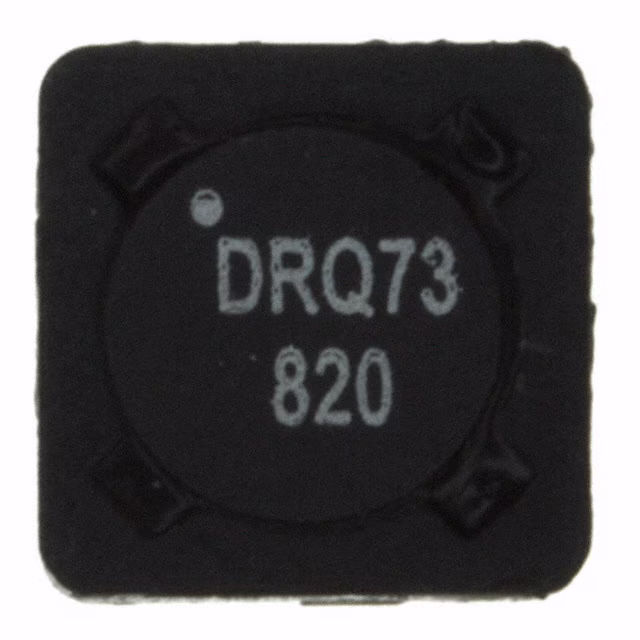

DRQ73-820-RINDUCT ARRAY 2 COIL 80.37UH SMD |
1,265 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 80.37 µH | 321.5 µH | ±20% | 860 mA | 430 mA | 890 mA | 440 mA | 384mOhm | 1.54Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-821-RINDUCT ARRAY 2 COIL 821.7UH SMD |
2,749 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 821.7 µH | 3.287 mH | ±20% | 270 mA | 134 mA | 280 mA | 140 mA | 3.93Ohm | 15.72Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-8R2-RINDUCT ARRAY 2 COIL 8.93UH SMD |
4,951 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.93 µH | 35.72 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 59.2mOhm | 236.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
SRF1280A-652YINDUCT ARRAY 2 COIL SMD |
3,507 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM3604-8-BINDUCT ARRAY 2 COIL 8UH SMD |
1,684 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 8 µH | 32 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-10-BINDUCT ARRAY 2 COIL 10UH SMD |
4,899 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-33-BINDUCT ARRAY 2 COIL 33UH SMD |
2,444 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 33 µH | 132 µH | ±20% | 1.6 A | 800 mA | - | - | 78mOhm Max | 310mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-68-BINDUCT ARRAY 2 COIL 68UH SMD |
4,523 | - |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 1.19 A | 600 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
