Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX150-1P-RINDUCT ARRAY 2 COIL 150.72UH SMD |
2,990 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 150.72 µH | 602.87 µH | ±20% | 440 mA | 220 mA | - | - | 844mOhm Max | 3.376Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX10-2PINDUCT ARRAY 2 COIL 9.83UH SMD |
1,357 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.83 µH | 39.3 µH | ±20% | 2.1 A | 1.05 A | - | - | 45mOhm Max | 179mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX10-4PINDUCT ARRAY 2 COIL 9.88UH SMD |
4,817 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.88 µH | 39.53 µH | ±20% | 2.5 A | 1.25 A | - | - | 47mOhm Max | 187mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX20-4PINDUCT ARRAY 2 COIL 20.62UH SMD |
3,013 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 20.62 µH | 82.47 µH | ±20% | 1.9 A | 950 mA | - | - | 84mOhm Max | 337mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX50-4PINDUCT ARRAY 2 COIL 48.8UH SMD |
3,614 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 48.8 µH | 195.2 µH | ±20% | 1.2 A | 600 mA | - | - | 201mOhm Max | 805mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX1-4P-RINDUCT ARRAY 2 COIL 1.1UH SMD |
4,030 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.1 µH | 4.39 µH | ±20% | 5.9 A | 2.95 A | - | - | 8mOhm Max | 33mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX15-4P-RINDUCT ARRAY 2 COIL 14.76UH SMD |
4,312 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.76 µH | 59.05 µH | ±20% | 2.3 A | 1.15 A | - | - | 57mOhm Max | 228mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

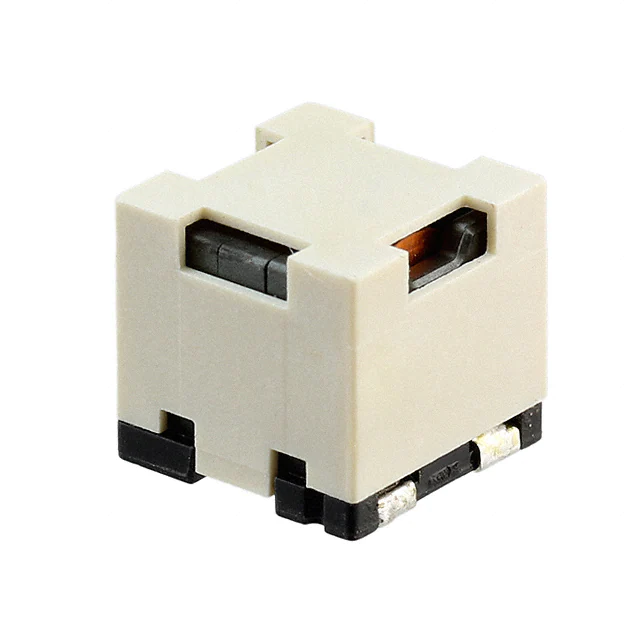

CDEPI106NP-220-SINDUCT ARRAY 2 COIL 11UH SMD |
4,468 | - |
|
Datasheet | CDEPI106 | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | - | 16 A | 2 A | 4.4 A | 2.2 A | 11.5mOhm | 46mOhm | Shielded | - | -40°C ~ 105°C | Surface Mount | 0.433" L x 0.433" W (11.00mm x 11.00mm) | 0.413" (10.50mm) |
|
P0180NLTINDUCT ARRAY 2 COIL 32.8UH SMD |
4,405 | - |
|
Datasheet | Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.8 µH | 131 µH | ±10% | 2.2 A | 1.07 A | - | - | 106mOhm Max | 404mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0174NLTINDUCT ARRAY 2 COIL 2.2UH SMD |
3,622 | - |
|
Datasheet | Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.75 µH | ±10% | 8.3 A | 4.16 A | - | - | 7.6mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0181NLTINDUCT ARRAY 2 COIL 47.6UH SMD |
3,896 | - |
|
Datasheet | Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 47.6 µH | 190.3 µH | ±10% | 1.8 A | 890 mA | - | - | 151mOhm Max | 604mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0182NLTINDUCT ARRAY 2 COIL 67.5UH SMD |
3,616 | - |
|
Datasheet | Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.5 µH | 270.2 µH | ±10% | 1.5 A | 740 mA | - | - | 224mOhm Max | 888mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
CTX25-4P-RINDUCT ARRAY 2 COIL 25.65UH SMD |
1,389 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.65 µH | 102.6 µH | ±20% | 1.6 A | 800 mA | - | - | 115mOhm Max | 461mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX33-4P-RINDUCT ARRAY 2 COIL 33.21UH SMD |
3,101 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.21 µH | 132.86 µH | ±20% | 1.3 A | 650 mA | - | - | 166mOhm Max | 662mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX0.47-1-RINDUCT ARRAY 2 COIL 400NH SMD |
2,336 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 400 nH | 1.6 µH | ±20% | 5.5 A | 2.75 A | - | - | 5mOhm Max | 20mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX0.68-1-RINDUCT ARRAY 2 COIL 630NH SMD |
1,377 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 630 nH | 2.5 µH | ±20% | 4.5 A | 2.25 A | - | - | 6mOhm Max | 24mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX1-1-RINDUCT ARRAY 2 COIL 900NH SMD |
2,879 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 900 nH | 3.6 µH | ±20% | 4.2 A | 2.1 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX2-1-RINDUCT ARRAY 2 COIL 2.03UH SMD |
0 |
1100+：$4.63540 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.03 µH | 8.1 µH | ±20% | 4.1 A | 2.05 A | - | - | 10mOhm Max | 40mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX8-1-RINDUCT ARRAY 2 COIL 8.1UH SMD |
4,676 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.1 µH | 32.4 µH | ±20% | 2 A | 1 A | - | - | 39mOhm Max | 157mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX200-1-RINDUCT ARRAY 2 COIL 202.5UH SMD |
2,593 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 202.5 µH | 810 µH | ±20% | 370 mA | 190 mA | - | - | 1.142Ohm Max | 4.567Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
