Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX2-4-RINDUCT ARRAY 2 COIL 1.76UH SMD |
2,226 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.76 µH | 7.06 µH | ±20% | 4.9 A | 2.45 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX8-4-RINDUCT ARRAY 2 COIL 8.28UH SMD |
1,869 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.28 µH | 33.12 µH | ±20% | 3.5 A | 1.75 A | - | - | 18mOhm Max | 72mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-4P-RINDUCT ARRAY 2 COIL 200.11UH SMD |
1,666 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.11 µH | 800.44 µH | ±20% | 600 mA | 300 mA | - | - | 810mOhm Max | 3.24Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
LCP5-2.04-47INDUCT ARRAY 2 COIL 47UH SMD |
1,724 | - |
|
Datasheet | LCP | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±15% | 2.04 A | 1.02 A | - | - | 72mOhm | 288mOhm | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.358" (9.10mm) |
|
|
CTX200-3P-RINDUCT ARRAY 2 COIL 200.1UH SMD |
0 |
800+：$5.71340 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.1 µH | 800.38 µH | ±20% | 600 mA | 300 mA | - | - | 731mOhm Max | 2.925Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX20-1INDUCT ARRAY 2 COIL 19.6UH SMD |
2,951 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

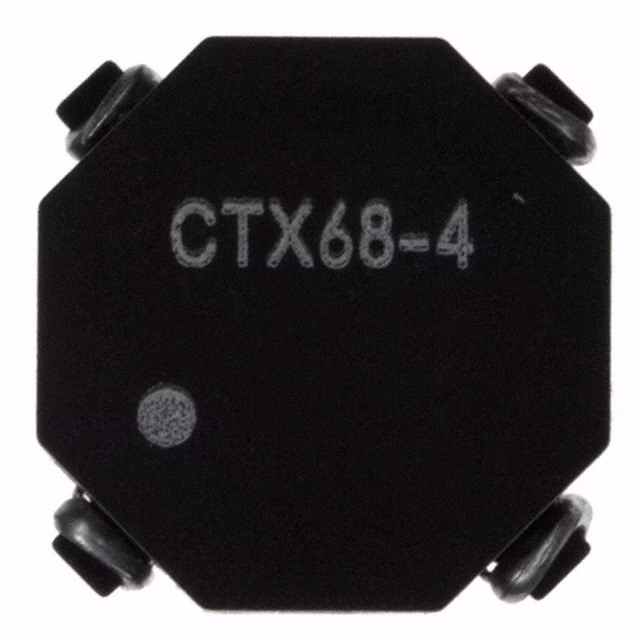

CTX68-4-RINDUCT ARRAY 2 COIL 67.08UH SMD |
1,882 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.08 µH | 268.32 µH | ±20% | 1.2 A | 600 mA | - | - | 157mOhm Max | 630mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX100-1INDUCT ARRAY 2 COIL 99.23UH SMD |
3,559 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
SDQ25-1R0-RINDUCT ARRAY 2 COIL 970NH SMD |
3,148 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 970 nH | 3.87 µH | ±20% | 3.15 A | 1.58 A | 4.09 A | 2.05 A | 25.2mOhm | 100.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
T60405A6166X0026166X002 |
4,065 | - |
|
Datasheet | - | Radial, Vertical, 8 Leads | Box | Active | 2 | 12 µH | 48 µH | - | 15 A | 7.5 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.496" L x 0.945" W (38.00mm x 24.00mm) | 1.626" (41.30mm) |
|
|
T60405A6166X0046166X004 |
1,881 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 41 µH | 165 µH | - | 8 A | 4 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.866" W (36.00mm x 22.00mm) | 1.587" (40.30mm) |
|
|
CTX5-2INDUCT ARRAY 2 COIL 4.7UH SMD |
4,210 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX300-3P-RINDUCT ARRAY 2 COIL 298.39UH SMD |
2,407 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.39 µH | 1.2 mH | ±20% | 500 mA | 250 mA | - | - | 926mOhm Max | 3.702Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX5-4INDUCT ARRAY 2 COIL 4.9UH SMD |
2,407 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.9 µH | 19.6 µH | ±20% | 4.4 A | 2.2 A | - | - | 14mOhm Max | 56mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
T60405A6166X0076166X007 |
3,814 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 180 µH | 720 µH | - | 4 A | 2 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
|
T60405A6166X0056166X005 |
2,849 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads | Box | Active | 2 | 75 µH | 300 µH | - | 6 A | 3 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
7448990010INDUCT ARRAY 2 COIL 1UH SMD |
1,802 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±20% | 17 A | - | 43.5 A | - | 5.6mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990015INDUCT ARRAY 2 COIL 1.5UH SMD |
3,466 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | - | ±20% | 12.5 A | - | 34 A | - | 9.4mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990022INDUCT ARRAY 2 COIL 2.2UH SMD |
2,924 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | - | ±20% | 11.5 A | - | 29.5 A | - | 12.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990033INDUCT ARRAY 2 COIL 3.3UH SMD |
3,224 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±20% | 7.5 A | - | 28.2 A | - | 26mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
