Audio Transformers
Browse available Audio Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MET-59-TAUDIO XFMR 600 / 150/150 TH |
137 |
1+：$11.73000 10+：$10.57800 25+：$10.14560 84+：$9.59738 168+：$9.29548 252+：$9.12274 504+：$8.83401 1008+：$8.55347 |
|
Datasheet | MET | Bulk | Active | 2:1:1 | 600 | 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-17AUDIO XFMR 10KCT / 500CT TH |
366 | - |
|
Datasheet | MET | Tube | Active | 4.47:1 | 10kCT | 500CT | 1kOhm | 80Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-4AUDIO XFMR 200KCT / 1KCT TH |
103 | - |
|
Datasheet | Red-Spec | Bulk | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 100Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 10mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-29AUDIO XFMR 10KCT / 500CT TH |
113 | - |
|
Datasheet | Red-Spec | Bulk | Active | 4.47:1 | 10kCT | 500CT | 1.05kOhm | 80Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
149TAUDIO XFMR 600CT / 600CT TH |
278 | - |
|
Datasheet | 149 | Bulk | Active | - | 600CT | 600CT | 53Ohm | 70Ohm | Economical Open Type | 200Hz ~ 15kHz | ±1dB | - | 0.5dB | - | 1000mW | - | - | Through Hole | 1.060" L x 0.820" W (26.92mm x 20.83mm) | 0.820" (20.83mm) | PC Pin |
|
MET-50AUDIO XFMR 10K / 125 TH |
0 |
1+：$29.88000 10+：$26.89100 25+：$25.77720 50+：$24.96180 100+：$24.16950 400+：$22.65325 |
|
Datasheet | MET | Tray | Active | 8.62:1 | 10k | 125 | 1.1kOhm | 28Ohm | Data/Voice Coupling | 300Hz ~ 20kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|

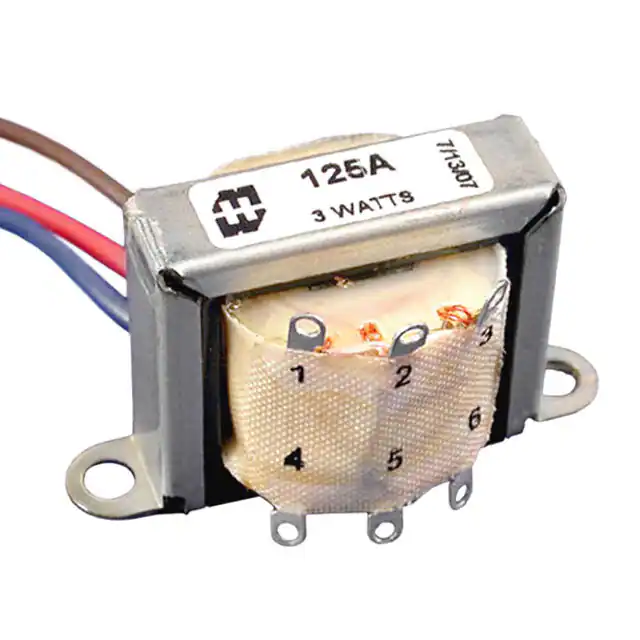

125AXFMR 1.2K-25K / 1.5-15 CHAS MNT |
412 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 3W | - | - | Chassis Mount | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) | Wire Leads |
|
#458PT-1566=P3AUDIO XFMR SMD |
997 |
1+：$1.63000 10+：$1.47800 25+：$1.41960 50+：$1.37700 100+：$1.33540 250+：$1.28188 500+：$1.24254 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.272" L x 0.150" W (6.90mm x 3.80mm) | 0.173" (4.40mm) | Gull Wing |
|

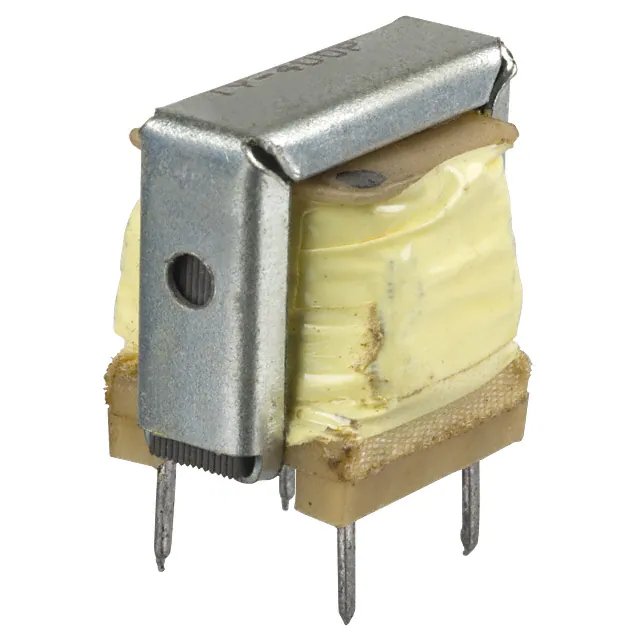

TY-400PAUDIO XFMR 600 / 600 TH |
6,393 | - |
|
Datasheet | TY | Bulk | Active | 1:1.07 | 600 | 600 | 76.5Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.820" L x 0.715" W (20.83mm x 18.16mm) | 0.750" (19.05mm) | PC Pin |
|

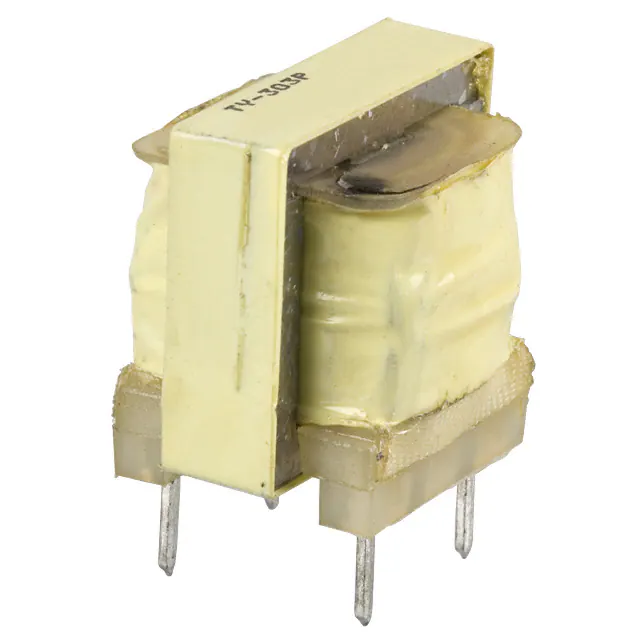

TY-303PAUDIO XFMR 4K / 600 TH |
68 |
1+：$8.19000 10+：$7.39000 25+：$7.09080 50+：$6.87100 100+：$6.65680 250+：$6.38248 500+：$6.18156 1000+：$5.98625 |
|
Datasheet | TY | Bulk | Active | 2.43:1 | 4k | 600 | 260Ohm | 52Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.715" W (20.62mm x 18.16mm) | 0.740" (18.80mm) | PC Pin |
|
TY-300PAUDIO XFMR 600 / 600/600 TH |
170 | - |
|
Datasheet | TY | Bulk | Active | 1:2.48 | 600 | 600/600 | 172Ohm | 66Ohm, 66Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | - | 1500VAC | 0.8dB Typ | 30dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
|
MET-28-TAUDIO XFMR 1K / 50 TH |
107 | - |
|
Datasheet | MET | Bulk | Active | 4.47:1 | 1k | 50 | 110Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-59AUDIO XFMR 600 / 600 150/150 TH |
817 | - |
|
Datasheet | MET | Tube | Active | 2:1:1 | 600 | 600, 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-28AUDIO XFMR 1K / 50 TH |
518 |
1+：$13.06000 10+：$11.77100 25+：$11.28880 50+：$10.93580 100+：$10.59230 250+：$10.15268 500+：$9.83096 1000+：$9.51850 |
|
Datasheet | MET | Tube | Active | 4.47:1 | 1k | 50 | 110Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-01-TAUDIO XFMR 200KCT / 1KCT TH |
51 |
1+：$13.07000 10+：$11.78200 25+：$11.30080 84+：$10.68940 168+：$10.35292 252+：$10.16040 504+：$9.83865 1008+：$9.52609 |
|
Datasheet | MET | Bulk | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 120Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Second | - | - | 10mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-01AUDIO XFMR 200KCT / 1KCT TH |
1,343 | - |
|
Datasheet | MET | Tube | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 120Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-52AUDIO XFMR 1.5KCT / 600 TH |
805 | - |
|
Datasheet | Red-Spec | Bulk | Active | 1.58:1 | 1.5kCT | 600 | 168Ohm | 92Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-49AUDIO XFMR 300CT / 600 TH |
233 |
1+：$20.84000 10+：$18.77200 25+：$17.99880 50+：$17.43260 100+：$16.88190 250+：$16.17788 500+：$15.66300 |
|
Datasheet | Red-Spec | Bulk | Active | 1:1.42 | 300CT | 600 | 41Ohm | 98Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-68XFMR 10K / 10K 2.5K/2.5K TH |
201 | - |
|
Datasheet | Red-Spec | Bulk | Active | 2.1:1 | 10k | 10k, 2.5k/2.5k | 1kOhm | 565/650Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-50-TAUDIO XFMR 10K / 125 TH |
121 | - |
|
Datasheet | MET | Bulk | Active | 8.62:1 | 10k | 125 | 1.1kOhm | 28Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 10mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
Audio Transformers FAQ
What Audio Transformers components can I source from EGOO?
You can browse available Audio Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Audio Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
