Audio Transformers
Compare the current Audio Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TTC-5036AUDIO XFMR 600 / 287 SMD |
1,598 | - |
|
Datasheet | TTC | Tape & Reel (TR) | Active | 1:1 | 600 | 287 | 175Ohm | 175Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.2dB | 1875VRMS @ 1 Second | 4dB Max @ 2kHz | 14dB Min @ 200Hz ~ 4kHz | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
TTC-105AUDIO XFMR 600 / 600 TH |
143 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600 | 71Ohm | 117Ohm | Data/Voice Coupling | 660Hz ~ 3.5kHz | -1dB ~ 0.7dB | 1500VRMS @ 1 Minute | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz | - | -45dB ~ 10dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.839" L x 0.630" W (21.30mm x 16.00mm) | 0.748" (19.00mm) | PC Pin |
|
MET-17AUDIO XFMR 10KCT / 500CT TH |
366 | - |
|
Datasheet | MET | Tube | Active | 4.47:1 | 10kCT | 500CT | 1kOhm | 80Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-50AUDIO XFMR 10K / 125 TH |
1,369 | - |
|
Datasheet | MET | Tray | Active | 8.62:1 | 10k | 125 | 1.1kOhm | 28Ohm | Data/Voice Coupling | 300Hz ~ 20kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-59AUDIO XFMR 600 / 600 150/150 TH |
817 | - |
|
Datasheet | MET | Tube | Active | 2:1:1 | 600 | 600, 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-28AUDIO XFMR 1K / 50 TH |
334 | - |
|
Datasheet | MET | Tube | Active | 4.47:1 | 1k | 50 | 110Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-01AUDIO XFMR 200KCT / 1KCT TH |
1,343 | - |
|
Datasheet | MET | Tube | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 120Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-11AUDIO XFMR 10KCT / 2KCT TH |
4,090 | - |
|
Datasheet | MET | Tube | Active | 2.23:1 | 10kCT | 2kCT | 1kOhm | 300Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-60AUDIO XFMR 135 / 135CT TH |
4,006 | - |
|
Datasheet | MET | Tube | Active | 1:1 | 135 | 135CT | 10.5Ohm | 10.8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1500VRMS @ 1 Minute | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|

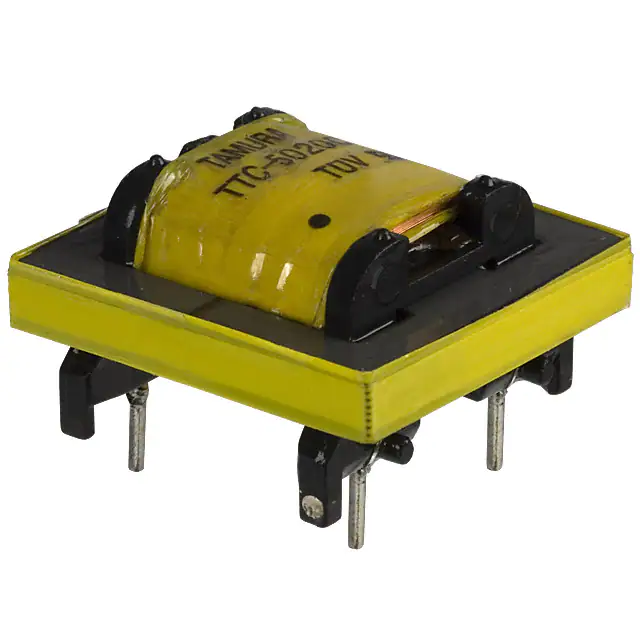

TTC-5020AUDIO XFMR 600 / 301 TH |
1,667 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 301 | 152Ohm | 152Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±1dB ~ ±4dB | 1875VRMS @ 1 Second | 3.75dB Max @ 1kHz | - | -20dB ~ 4dB | - | CSA-C22.2 No. 950-95, UL1950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
Audio Transformers FAQ
How can I narrow the current Audio Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Audio Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
