Audio Transformers
Compare the current Audio Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

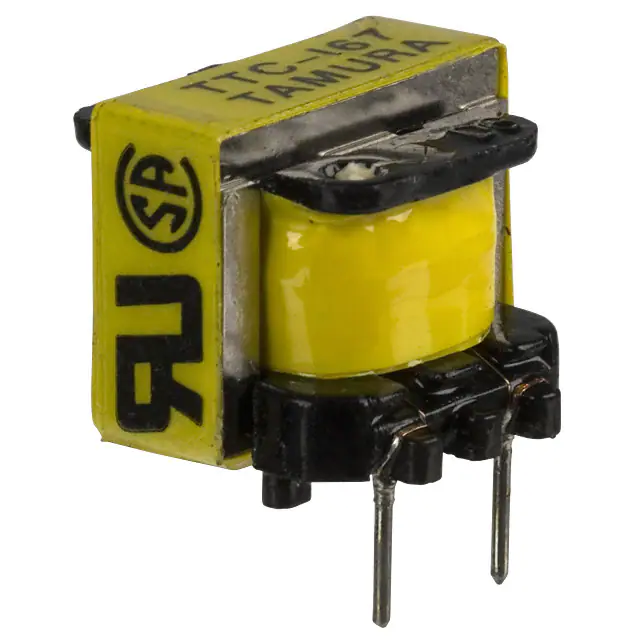

TTC-167AUDIO XFMR 10K / 10K TH |
3,988 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 10k | 10k | 330Ohm | 420Ohm | Data/Voice Coupling | 300Hz ~ 4kHz | ±1dB | 1000VRMS @ 1 Minute | 1.7dB Max @ 1kHz | - | - | - | CSA-C22.2 No. 66-M1988, UL1863 | Through Hole | 0.610" L x 0.689" W (15.50mm x 17.50mm) | 0.551" (14.00mm) | PC Pin |
|

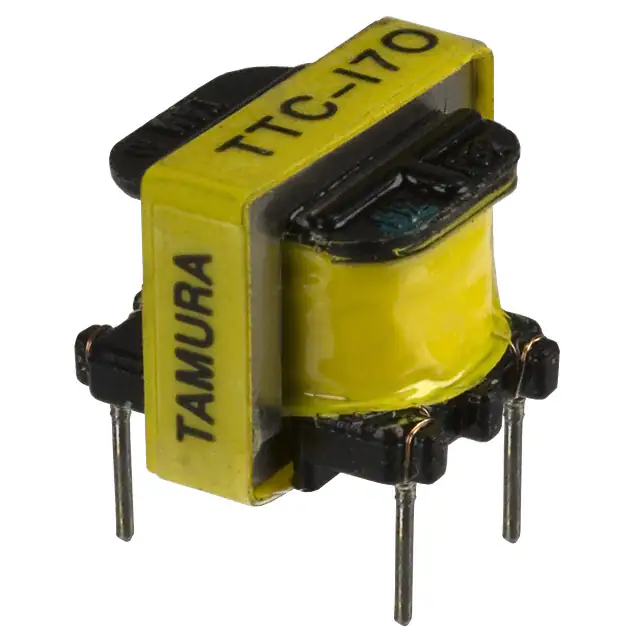

TTC-170AUDIO XFMR 600 / 600 TH |
1,537 | - |
|
Datasheet | TTC | Tube | Active | 1:1 | 600 | 600 | 47Ohm | 61Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.5dB Max @ 1kHz | - | - | 0°C ~ 70°C | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.528" L x 0.512" W (13.40mm x 13.00mm) | 0.421" (10.70mm) | PC Pin |
|

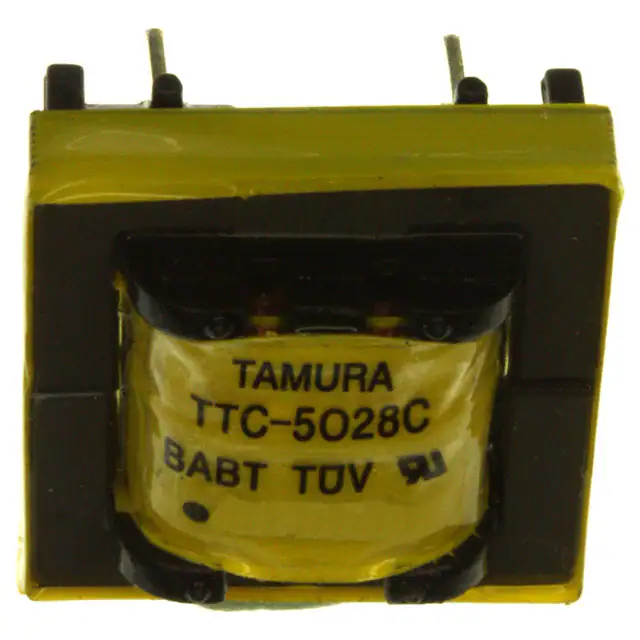

TTC-5028AUDIO XFMR 600 / 470 TH |
3,996 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 470 | 92Ohm | 120Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±1dB ~ ±4dB | 1875VRMS @ 1 Second | 2.5dB Max @ 1kHz | - | -40dB ~ 4dB | - | CSA-C22.2 No. 950-95, UL1950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.583" (14.80mm) | PC Pin |
|

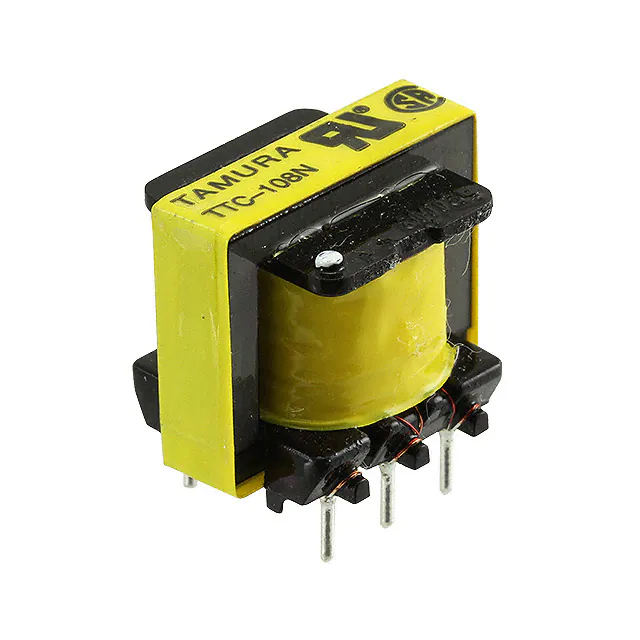

TTC-108NAUDIO XFMR 600CT / 600CT TH |
2,816 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600CT | 600CT | 44Ohm | 56Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.4dB Max @ 1kHz | - | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.815" L x 0.650" W (20.70mm x 16.50mm) | 0.736" (18.70mm) | PC Pin |
|
T1104AUDIO XFMR 600 / 600 TH |
1,094 | - |
|
Datasheet | - | Tray | Active | - | 600 | 600 | 46Ohm | 63Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1dB Typ @ 1kHz | 26dB Min | -45dB ~ 7dB | - | CSA-C22.2 No. 950-M89, UL1459, UL1950 | Through Hole | 0.780" L x 0.654" W (19.80mm x 16.60mm) | 0.469" (11.90mm) | PC Pin |
|

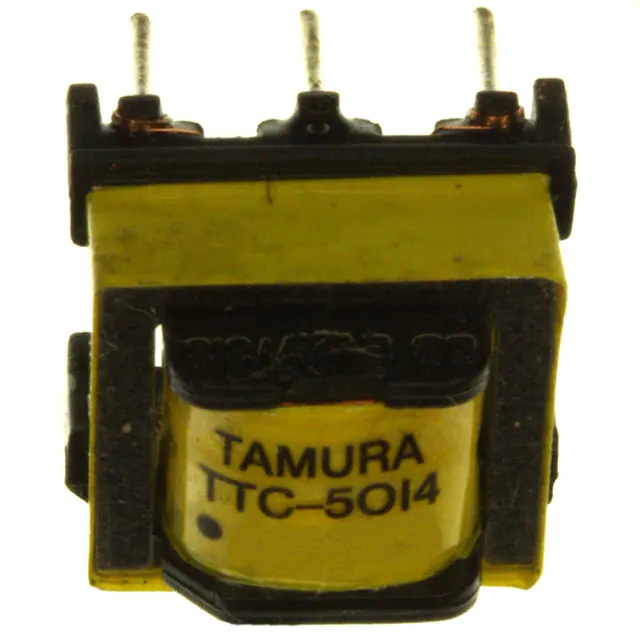

TTC-5014AUDIO XFMR 600 / 348 TH |
4,296 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 348 | 149Ohm | 139Ohm | - | 200Hz ~ 4kHz | ±0.25dB | 1875VRMS @ 1 Second | 3.25dB Max @ 1kHz | 14dB Min @ 200Hz ~ 4kHz | - | - | UL60950 | Through Hole | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.472" (12.00mm) | PC Pin |
|
TTC-02AUDIO XFMR 600 / 600 TH |
3,230 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600 | 72Ohm | 90Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.5dB Max @ 1kHz | - | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799" L x 0.650" W (20.30mm x 16.50mm) | 0.488" (12.40mm) | PC Pin |
|

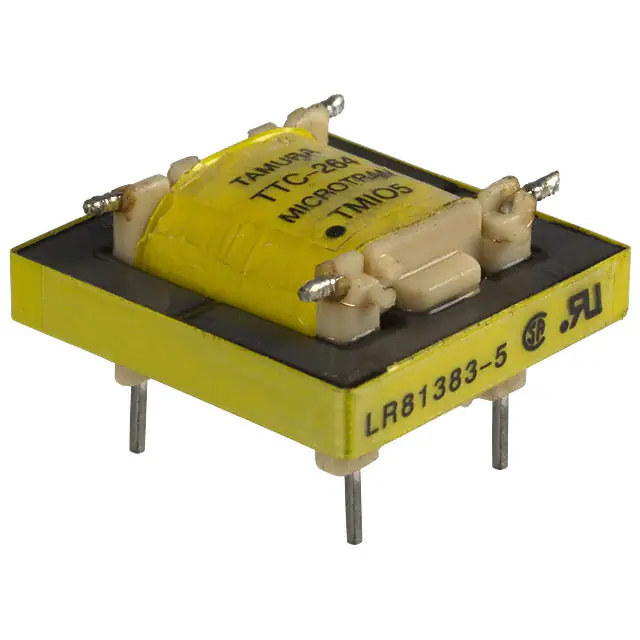

TTC-264AUDIO XFMR 600 / 470 TH |
2,263 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 470 | 108Ohm | 120Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±1dB ~ ±4dB | 1500VRMS @ 1 Minute | 2.5dB Max @ 1kHz | - | -20dB ~ 4dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.472" (12.00mm) | PC Pin |
|

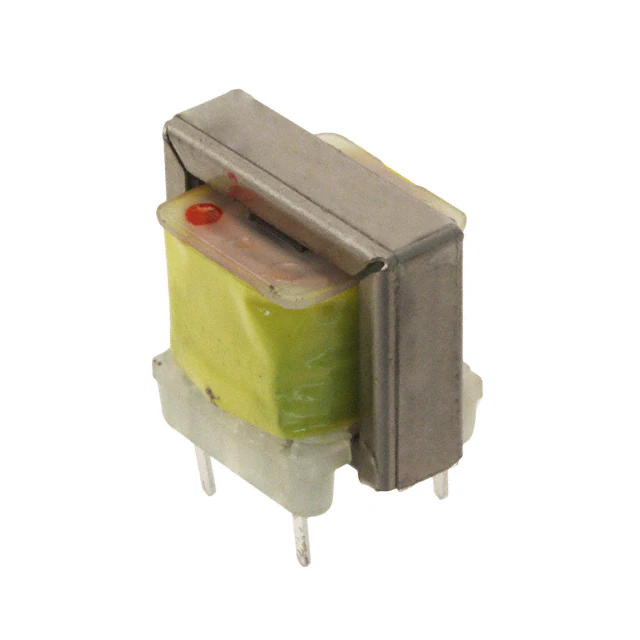

TTC-105-1AUDIO XFMR 600 / 600CT TH |
4,625 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600CT | 71Ohm | 117Ohm | Data/Voice Coupling | 660Hz ~ 3.5kHz | -1dB ~ 0.7dB | 1500VRMS @ 1 Minute | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz | - | -45dB ~ 10dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.839" L x 0.630" W (21.30mm x 16.00mm) | 0.748" (19.00mm) | PC Pin |
|

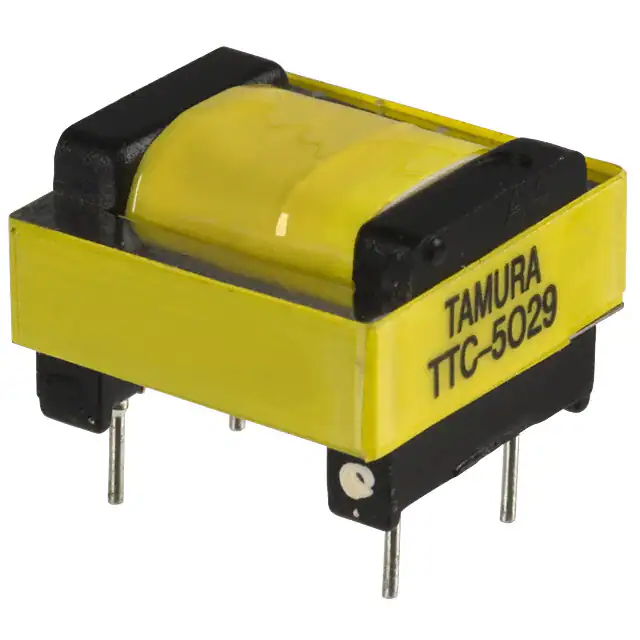

TTC-5029AUDIO XFMR 600 / 600 TH |
3,338 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.2dB | 1875VRMS @ 1 Second | 1dB Max @ 1kHz | 20dB Min @ 200Hz ~ 4kHz | - | 0°C ~ 70°C | - | Through Hole | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.472" (12.00mm) | PC Pin |
