Audio Transformers
Browse available Audio Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAM-OT-45-17RFender Tweed Bassman Output Tran |
4,344 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 4.7kCT | 2 | - | - | General Purpose | - | - | - | - | - | 45W | - | - | Chassis Mount | 4.030" L x 3.437" W (102.36mm x 87.30mm) | 3.500" (88.90mm) | Wire Leads |
|
|
PAM-OT-45-11RFender Bassman Output Transforme |
4,914 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 4.6kCT | 4 | - | - | General Purpose | - | - | - | - | - | 45W | - | - | Chassis Mount | 4.030" L x 3.200" W (102.36mm x 81.28mm) | 3.500" (88.90mm) | Wire Leads |
|
|
PAM-OT-70-25RFender Bassman 70W Output Transf |
2,538 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 5kCT | 2, 4 | - | - | General Purpose | - | - | - | - | - | - | - | - | Chassis Mount | 4.030" L x 3.500" W (102.36mm x 88.90mm) | 3.500" (88.90mm) | Wire Leads |
|
|
PAM-OT-45-30RMarshall JTM45 Output Transforme |
4,950 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 10.4kCT | 8, 10 | - | - | General Purpose | - | - | - | - | - | 45W | - | - | Chassis Mount | 3.810" L x 3.750" W (96.77mm x 95.25mm) | 3.750" (95.25mm) | Wire Leads |
|
|
PAM-OT-50-35RMarshall 50 Watt Plexi Output Tr |
4,138 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 3.6kCT | 4, 8, 16 | - | - | General Purpose | - | - | - | - | - | 50W | - | - | Chassis Mount | 3.870" L x 3.130" W (98.30mm x 79.50mm) | 3.570" (90.68mm) | Wire Leads |
|
|
PAM-OT-100-24RFender Dual Showman Reverb Outpu |
4,840 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 2.2kCT | 4 | - | - | General Purpose | - | - | - | - | - | 100W | - | - | Chassis Mount | 4.030" L x 3.440" W (102.36mm x 87.38mm) | 3.500" (88.90mm) | Wire Leads |
|
|
PAM-OT-30-51RVox Albion AC30 Output Transform |
2,785 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 4.8kCT | 8, 16 | - | - | General Purpose | - | - | - | - | - | 30W | - | - | Chassis Mount | 3.310" L x 3.130" W (84.07mm x 79.50mm) | 3.750" (95.25mm) | Wire Leads |
|
|
NTM1NTM1 Fiber Optic Connectors |
100 | - |
|
Datasheet | * | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PAM-OT-30-53RVox Wooden AC30 Output Transform |
2,406 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 4.8kCT | 8, 16 | - | - | General Purpose | - | - | - | - | - | 30W | - | - | Chassis Mount | 3.380" L x 3.130" W (85.85mm x 79.50mm) | 3.750" (95.25mm) | Wire Leads |
|
|
NTM4NTM4 Fiber Optic Connectors |
100 | - |
|
Datasheet | * | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PAM-OT-30-54RTrainwreck 30 Watt Output Transf |
2,677 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 7.5kCT | 4, 8, 16 | - | - | General Purpose | - | - | - | - | - | 30W | - | - | Chassis Mount | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.750" (95.25mm) | Wire Leads |
|
|
PAM-OT-135-20RFender 135 Watt Silverface Twin |
1,165 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 2.5kCT | 4CT | - | - | General Purpose | - | - | - | - | - | 135W | - | - | Chassis Mount | 4.060" L x 3.750" W (103.12mm x 95.25mm) | 3.500" (88.90mm) | Wire Leads |
|
|
PAM-OT-50-50RVox AC50 Output Transformer |
4,793 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 3.9kCT | 8, 16 | - | - | General Purpose | - | - | - | - | - | 50W | - | - | Chassis Mount | 4.500" L x 3.130" W (114.30mm x 79.50mm) | 3.750" (95.25mm) | Wire Leads |
|
|
NTL1NTL1 Fiber Optic Connectors |
200 | - |
|
Datasheet | * | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PAM-OT-100-32RMarshall 100 Watt Plexi Super Le |
3,474 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 2kCT | 4, 8, 16 | - | - | General Purpose | - | - | - | - | - | 100W | - | - | Chassis Mount | 4.060" L x 3.750" W (103.12mm x 95.25mm) | 4.530" (115.06mm) | Wire Leads |
|
|
PAM-OT-200-92RHiwatt DR201 Output Transformer |
1,992 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | 2.4kCT | 4, 8, 16 | - | - | General Purpose | - | - | - | - | - | 200W | - | - | Chassis Mount | 4.620" L x 4.380" W (117.35mm x 111.25mm) | 5.250" (133.35mm) | Wire Leads |
|
104SAUDIO XFMR 600CT / 150CT TH |
4,152 | - |
|
Datasheet | 104 | Bulk | Active | - | 600CT | 150CT | 47Ohm | 10.6Ohm | Miniature Epoxy Potted | 200Hz | -1dB | 200V | 1dB | - | 500mW | - | - | Through Hole | 0.860" L x 0.710" W (21.84mm x 18.03mm) | 0.750" (19.05mm) | PC Pin |
|

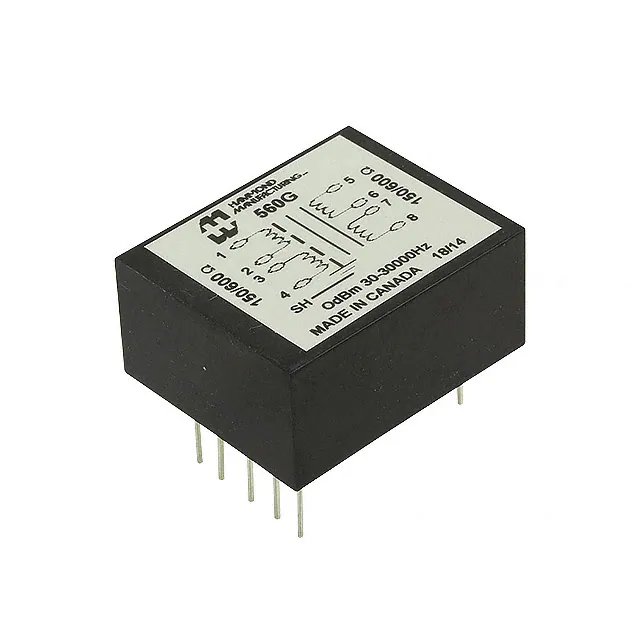

560GXFMR 600 150/150 / 600 150/150 |
2,639 | - |
|
Datasheet | 560 | Bulk | Active | - | 600, 150/150 | 600, 150/150 | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
SP-21AUDIO XFMR 10KCT / 2KCT TH |
3,838 | - |
|
Datasheet | Red-Spec | Bulk | Active | 2.24:1 | 10kCT | 2kCT | 1.05kOhm | 330Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-13XFMR 25KCT 20KCT / 1KCT 800CT TH |
1,177 | - |
|
Datasheet | Red-Spec | Bulk | Active | 5:1 | 25kCT, 20kCT | 1kCT, 800CT | 1.7kOhm | 115Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
Audio Transformers FAQ
What Audio Transformers components can I source from EGOO?
You can browse available Audio Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Audio Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
