Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-05-503CMC 5MH 4A 2LN TH |
135 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82724B2602N001CMC 1MH 6A 2LN TH |
206 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 23mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CMS3-11-RCMC 648UH 1.2A 2LN SMD |
1,203 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 648 µH @ 100 kHz | 1.2A | 107mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
SC-02-10JCMC 1MH 2A 2LN TH |
224 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724B2202N020CMC |
227 | - |
|
Datasheet | - | Power Line | 2 | 260 mOhms @ 100 MHz | 220 µH @ 100 MHz | 6A | 260mOhm | - | 250V | - | - | UR, VDE | - | - | - |
|

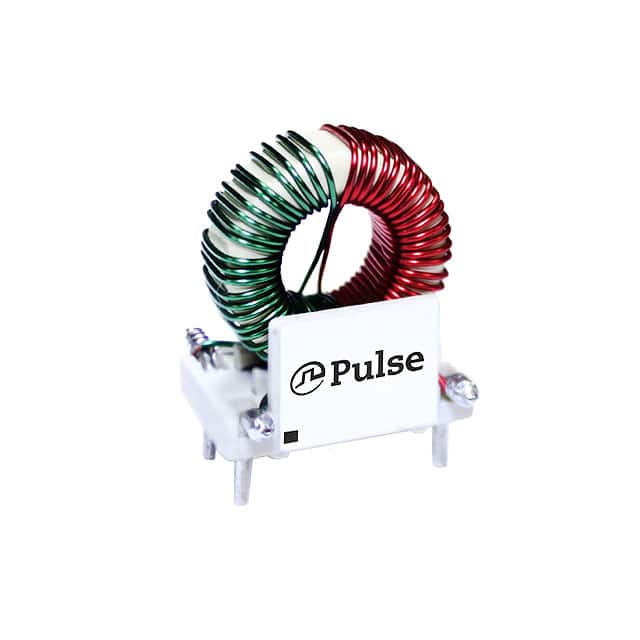

PA3747.105NLCMC 5A 2LN TH |
585 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 5A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DS1-175-0002CMC 630MA 2LN TH |
230 | - |
|
Datasheet | Radial | - | 2 | - | - | 630mA | 500mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-030-E150JH-PCMC 15MH 3A 2LN TH |
180 | - |
|
Datasheet | Horizontal, 2 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 3A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR22-050-0R9A090JCMC 9MH 5A 2LN TH |
192 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 5A | 55mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
|
SCR22-050-0R9A100JHCMC 10MH 5A 2LN TH |
150 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 60mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-04-200JCMC 20.3MH 4A 2LN TH |
169 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20.3 mH @ 1 kHz | 4A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-65JVCMC 6.5MH 3A 2LN TH |
343 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
DFKH-31-0006CMC 2.5A 2LN TH |
135 | - |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 2.5A | 110mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
PHBC12-1R0A0051VCMC 51UH 5A 2LN TH |
109 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 51 µH @ 100 kHz | 5A | 28mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-08-200BCMC 2MH 8A 2LN TH |
134 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PE-65857NLTCMC 4LN SMD |
3,451 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 220mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
SC-06-40JCMC 4MH 6A 2LN TH |
200 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 6A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-900CMC 9MH 6A 2LN TH |
187 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 6A | 60mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SPDL151306-500-2P-TCMC 10MA 2LN 500 OHM SMD |
265 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 10mA | 7Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7446424002CMC 2.2MH 4.3A 2LN TH |
112 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4.3A | 38mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
