Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF19XV-120-1R2A007JVCMC 600UH 12A 2LN TH AEC-Q200 |
178 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-07-650CMC 6.5MH 7A 2LN TH |
148 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 1 kHz | 7A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-50JCMC 5MH 4A 2LN TH |
188 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PE-62916NLCMC 4MH 5.2A 2LN TH |
265 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 5.2A | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-05-803CMC 8MH 4A 2LN TH |
151 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 90mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19-040-0R8A1100JCMC 11MH 4A 2LN TH |
246 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 50 kHz | 4A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN152-2-02-18MCMC 18MH 2A 2LN TH |
123 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 350mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-08-D060CMC 60UH 8A 2LN TH |
150 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR25-070-1R1A070JCMC 7MH 7A 2LN TH |
131 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 34mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

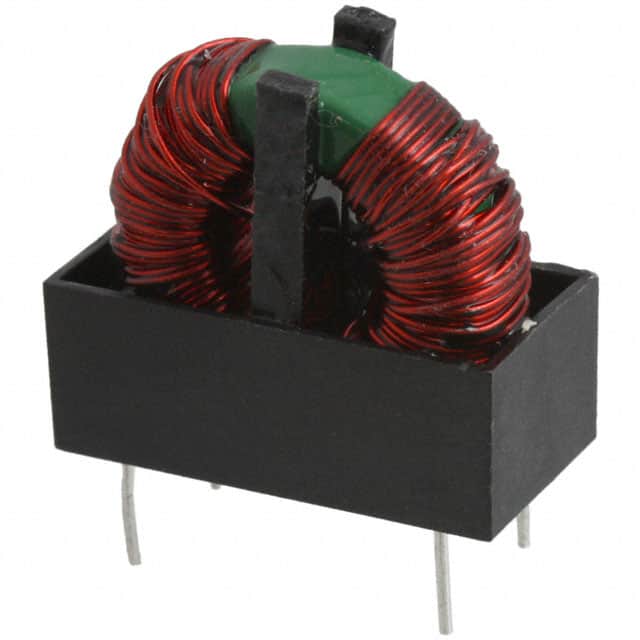

PE-62911NLCMC 10MH 1.8A 2LN TH |
195 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1.8A | 240mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-E200HCMC 2MH 10A 2LN TH |
146 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-300JVCMC 44MH 2A 2LN TH |
174 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 44 mH @ 16 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82116S1221L127CMC 2.9UH 25A 1LN TH AEC-Q200 |
142 | - |
|
Datasheet | Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 2.9 µH @ 10 kHz | 25A | 1.4mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|
SC-07-E042JHCMC 4.2MH 7A 2LN TH |
249 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
B82116S1221L026CMC 3.1UH 25A 1LN TH AEC-Q200 |
153 | - |
|
Datasheet | Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 3.1 µH @ 10 kHz | 25A | 1.8mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|
PE-69011NLTCMC 8LN SMD |
2,035 | - |
|
Datasheet | Vertical, 16 Gull Wing | Signal Line | 8 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
SN14P-300JNMC 80.0UH 15.0A 0.0150 OHM TH |
256 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCR19XV-150-1R3A006JVCMC 220UH 15A 2LN TH AEC-Q200 |
234 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-120-1R2A007JVCMC 300UH 12A 2LN TH AEC-Q200 |
206 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-080-1R0A011JVCMC 750UH 8A 2LN TH AEC-Q200 |
126 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
