Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR25XV-100-1R3A016JHCMC 3.1MH 10A 2LN TH AEC-Q200 |
240 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.1 mH @ 100 kHz | 10A | 12.27mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-350-2R4A003JHCMC 72UH 35A 2LN TH AEC-Q200 |
235 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-280-2R1A005JVCMC 200UH 28A 2LN TH AEC-Q200 |
187 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-080-1R2A018JVCMC 2.6MH 8A 2LN TH AEC-Q200 |
161 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 8A | 14.41mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-350-2R4A003JVCMC 72UH 35A 2LN TH AEC-Q200 |
157 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.69mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
EH35-1.0-02-90MCMC 90MH 1A 2LN TH |
224 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 90 mH @ 400 Hz | 1A | 628mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SCR29XV-190-1R9A012JVCMC 880UH 19A 2LN TH AEC-Q200 |
166 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 880 µH @ 100 kHz | 19A | 3.28mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR19XV-080-1R0A011JHCMC 750UH 8A 2LN TH AEC-Q200 |
221 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-220-1R6A004JHCMC 60UH 22A 2LN TH AEC-Q200 |
152 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-080-1R0A011JVCMC 450UH 8A 2LN TH AEC-Q200 |
150 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-130-1R5A012JVCMC 3.5MH 13A 2LN TH AEC-Q200 |
252 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-180-1R8A013JVCMC 560UH 18A 2LN TH AEC-Q200 |
180 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-210-2R1A010JVCMC 330UH 21A 2LN TH AEC-Q200 |
152 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 21A | 2.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-120-1R6A017JVCMC 960UH 12A 2LN TH AEC-Q200 |
150 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 960 µH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

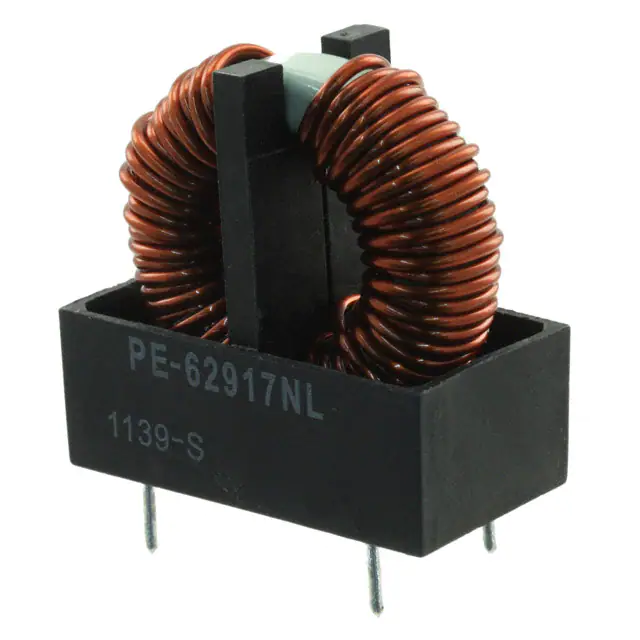

PE-62917NLCMC 2MH 7.5A 2LN TH |
387 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 7.5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT19XV-150-1R3A006JVCMC 134UH 15A 2LN TH AEC-Q200 |
320 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 134 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-080-1R0A011JHCMC 450UH 8A 2LN TH AEC-Q200 |
184 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-190-1R5A005JHCMC 300UH 19A 2LN TH AEC-Q200 |
121 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.95mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
8109-RCCMC 30MH 2.3A 2LN TH |
467 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SC-18-05JCMC 500UH 18A 2LN TH |
132 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 18A | 7mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
