Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR25XV-130-1R5A012JVCMC 1.77MH 13A 2LN TH AEC-Q200 |
4,880 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.77 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

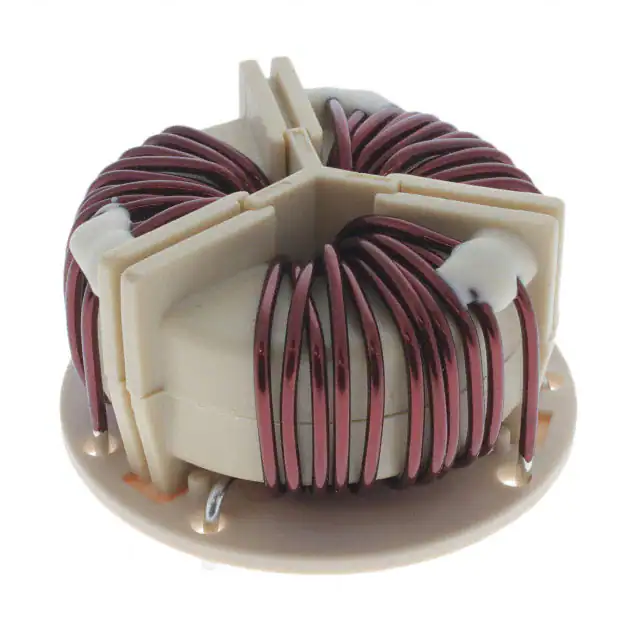

SCR38C-130-S1R4A015JHCMC 1.5MH 13A 3LN TH |
1,060 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1.5 mH @ 10 kHz | 13A | - | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

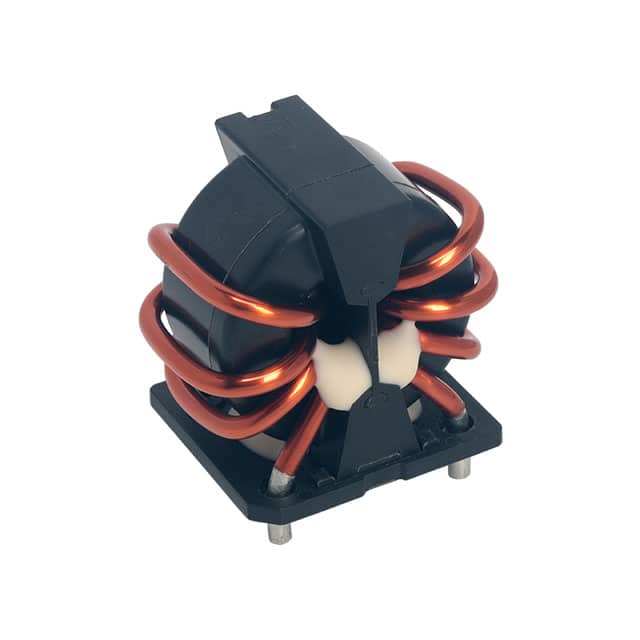

SCT25XV-050-1R0A027JVCMC 5.86MH 5A 2LN TH AEC-Q200 |
1,291 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.86 mH @ 100 kHz | 5A | 30.59mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-220-1R9A007JVCMC 390UH 22A 2LN TH AEC-Q200 |
2,486 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 390 µH @ 100 kHz | 22A | 2.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-170-1R7A009JVCMC 650UH 17A 2LN TH AEC-Q200 |
2,194 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-220-1R9A007JHCMC 390UH 22A 2LN TH AEC-Q200 |
1,615 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 390 µH @ 100 kHz | 22A | 2.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-190-1R8A008JVCMC 510UH 19A 2LN TH AEC-Q200 |
4,799 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 510 µH @ 100 kHz | 19A | 2.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-240-2R0A006JHCMC 290UH 24A 2LN TH AEC-Q200 |
2,561 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 290 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-060-1R1A036JVCMC 14.2MH 6A 2LN TH AEC-Q200 |
1,714 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14.2 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-20-100CMC 1MH 20A 2LN TH |
1,028 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | 8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
