Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

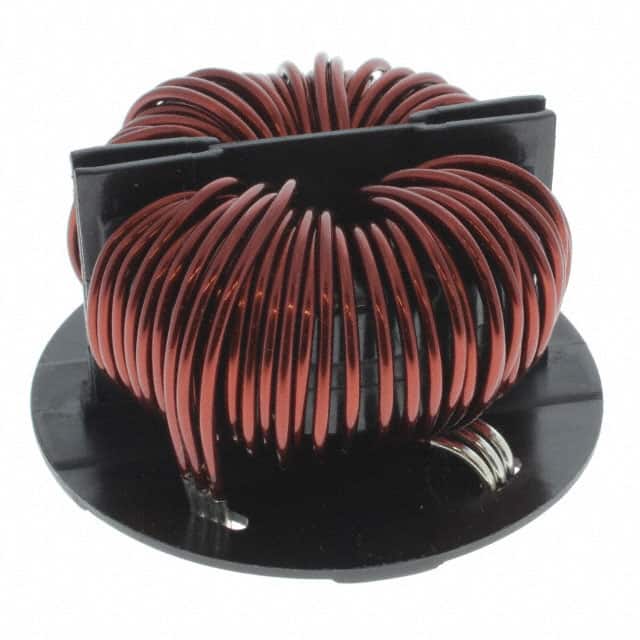

SCR47B-400-1R8C010JHCMC 1MH 40A 2LN TH |
4,751 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 40A | 2.1mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR47-400-1R9C008JHCMC 800UH 40A 2LN TH |
4,947 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 40A | 1.8mOhm | - | - | -25°C ~ 120°C | - | - | - | - | - |
|
HHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
3,388 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
3,930 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

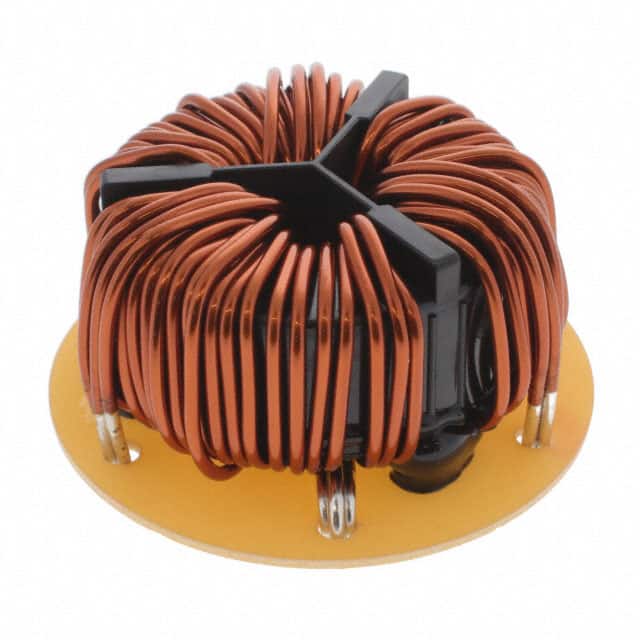

SCF47-400-S1R7C028JHCMC 2.8MH 40A 3LN TH |
3,846 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.8 mH @ 10 kHz | 40A | 1.85mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

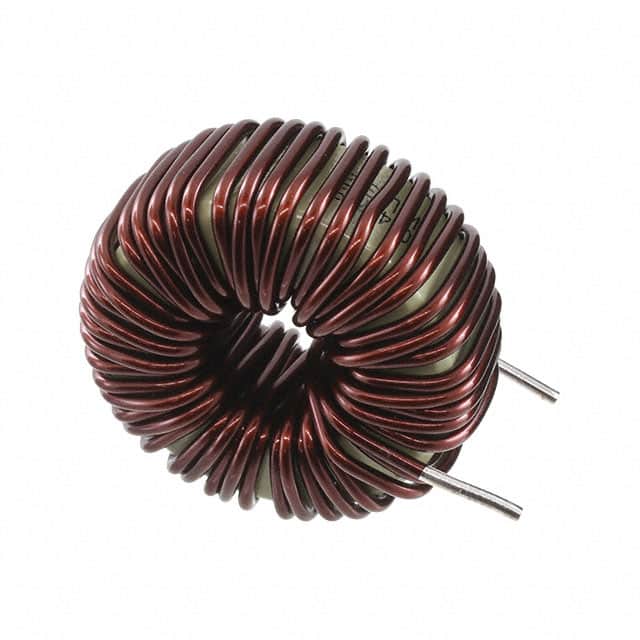

PHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
4,008 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 311 µH @ 100 kHz | 15A | 20.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS21V-220017CMC 1.7MH 2.2A 2LN TH |
4,372 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 2.2A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN10P-800NMC 297.0UH 2.5A 0.1900 OHM TH |
3,422 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 297 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCR-060-0R9A040JCMC 4MH 6A 2LN TH |
4,577 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN16P-400JNMC 108.0UH 8.0A 0.0270 OHM TH |
100 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
