Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR29XV-050-1R0A044JHCMC 11.8MH 5A 2LN TH AEC-Q200 |
100 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-090-1R4A022JVCMC 2.95MH 9A 2LN TH AEC-Q200 |
2,068 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.95 mH @ 100 kHz | 9A | 10.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-270-2R3A006JVCMC 220UH 27A 2LN TH AEC-Q200 |
2,486 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-300-2R4A005JVCMC 153UH 30A 2LN TH AEC-Q200 |
1,960 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 153 µH @ 100 kHz | 30A | 0.93mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-180-1R8A013JVCMC 1.04MH 18A 2LN TH AEC-Q200 |
2,016 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.04 mH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-090-1R4A022JHCMC 2.95MH 9A 2LN TH AEC-Q200 |
3,334 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.95 mH @ 100 kHz | 9A | 10.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

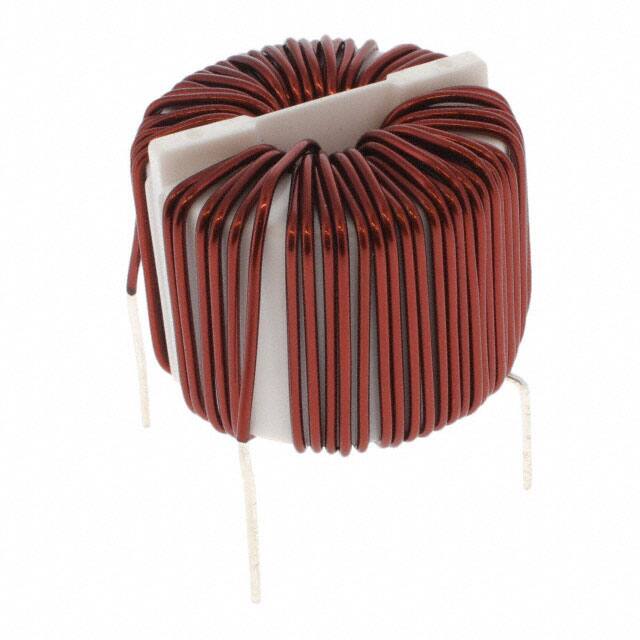

SC-09-1400CMC 14MH 9A 2LN TH |
4,888 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 9A | 53mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCR29XV-110-1R5A019JHCMC 2.2MH 11A 2LN TH AEC-Q200 |
2,531 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

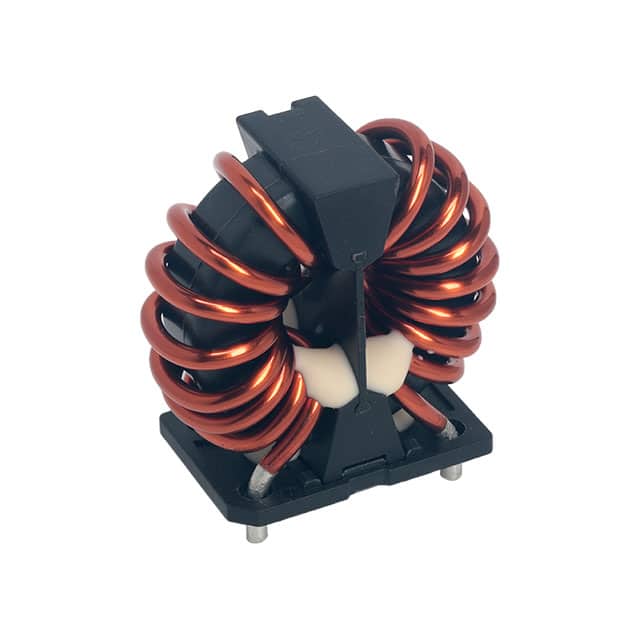

SCT29XV-050-1R0A044JVCMC 6.47MH 5A 2LN TH AEC-Q200 |
4,496 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.47 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-270-2R3A006JVCMC 120UH 27A 2LN TH AEC-Q200 |
4,453 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
