Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCT39XV-200-2R2A013JHCOMMON MODE 1.26MH 20A 4.280 MOH |
4,215 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.26 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-310-1R9B007JHCOMMON MODE 0.364MH 31A 1.480MOH |
4,600 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 364 µH @ 100 kHz | 31A | 1.48mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

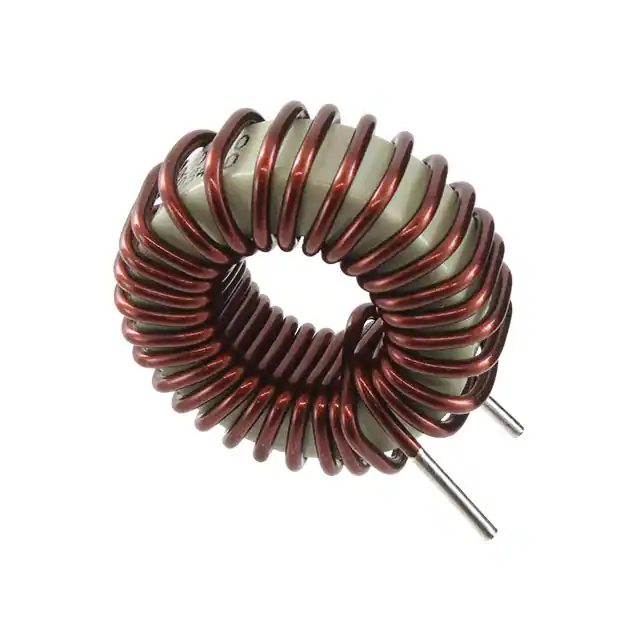

PHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
1,777 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT39XV-230-S2R2A007JHCOMMON MODE 0.364MH 23A 2.230M |
3,820 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 364 µH @ 100 kHz | 23A | 2.23mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-400-S2R2B003JHCOMMON MODE 0.067MH 40A 0.400M |
1,457 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 67 µH @ 100 kHz | 40A | 0.4mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-210-S2R0A008JHCOMMON MODE 0.476MH 21A 3.000M |
2,825 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 476 µH @ 100 kHz | 21A | 3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-220-2R3A012JHCOMMON MODE 1.07MH 22A 3.580 MOH |
1,693 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.07 mH @ 100 kHz | 22A | 3.58mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-130-1R7A022JHCOMMON MODE 3.6MH 13A 11.100MOHM |
4,654 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 13A | 11.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-170-Y1R8A006JHINDUCTOR CMC 0.47MH 17A |
4,990 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 470 µH @ 100 kHz | 17A | 2.83mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
PHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
3,738 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
