Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN13-500CMC 143UH 6A 2LN TH |
2,767 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 143 µH @ 100 kHz | 6A | 36mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN20P-240NMC 40.0UH 20.0A 0.0100 OHM TH |
2,744 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SN16-400CMC 108UH 8A 2LN TH |
100 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
2,508 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
2,789 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 152 µH @ 100 kHz | 12A | 20.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
4,514 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

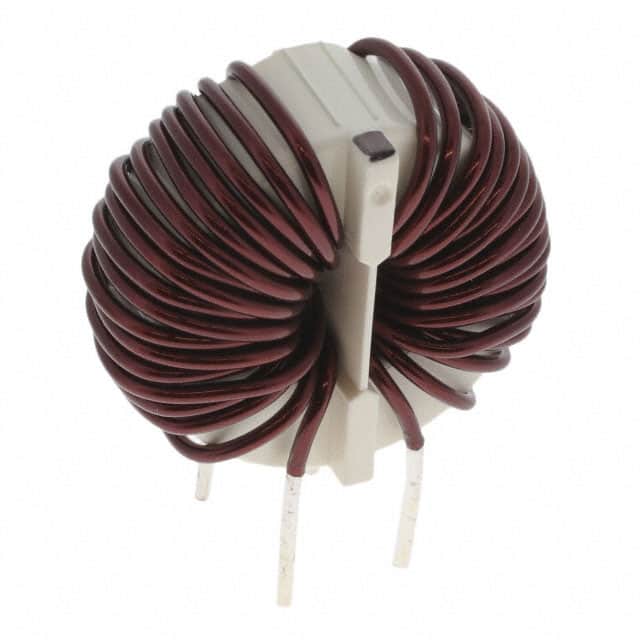

SC-08-E1000CMC 10MH 8A 2LN TH |
1,445 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SCR39XV-150-S1R7A011JHINDUCTOR CMC 1.6MH 15A |
4,497 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 15A | 5.45mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-140-S1R6A014JHINDUCTOR CMC 2.6MH 14A |
3,984 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 14A | 7.87mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-130-1R7A022JHINDUCTOR CMC 6.4MH 13A |
2,815 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.4 mH @ 100 kHz | 13A | 11.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
