Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF19XV-190-1R5A005JVCMC 300UH 19A 2LN TH AEC-Q200 |
4,058 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JVCMC 200UH 22A 2LN TH AEC-Q200 |
4,415 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-120-1R2A007JHCMC 600UH 12A 2LN TH AEC-Q200 |
4,903 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-20-SE10JCMC 940UH 20A 3LN TH |
2,268 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 10 kHz | 20A | 7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-E50JHCMC 5.2MH 15A 2LN TH |
3,630 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

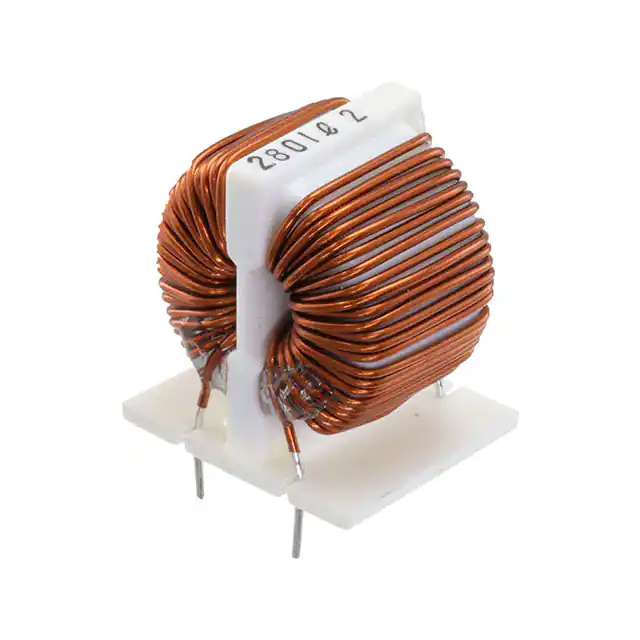

SCR31H-225-2R0A014JCMC 1.4MH 22.5A 2LN TH |
2,350 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 22.5A | 5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SC-10-500CMC 5MH 10A 2LN TH |
3,859 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR38-350-1R8B008JCMC 850UH 35A 2LN TH |
1,550 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

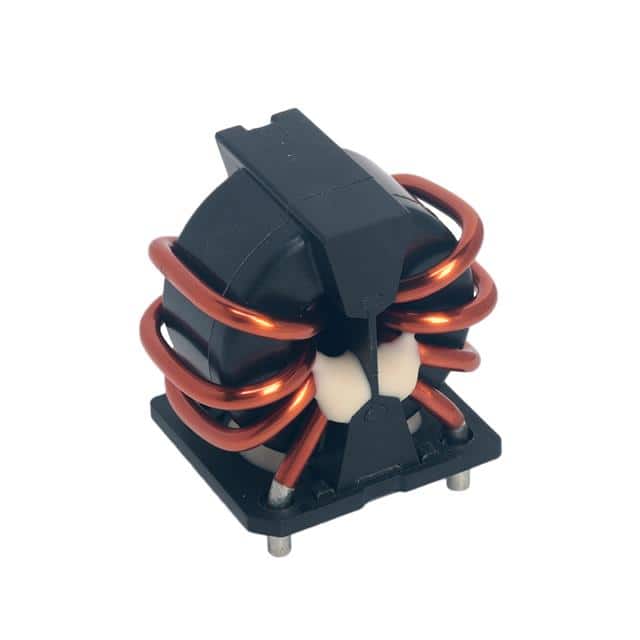

SCF25XV-280-2R1A005JVCMC 600UH 28A 2LN TH AEC-Q200 |
4,257 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-170-1R7A009JVCMC 2MH 17A 2LN TH AEC-Q200 |
3,635 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
