Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-07-10JCMC 1MH 7A 2LN TH |
4,324 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 7A | 24mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

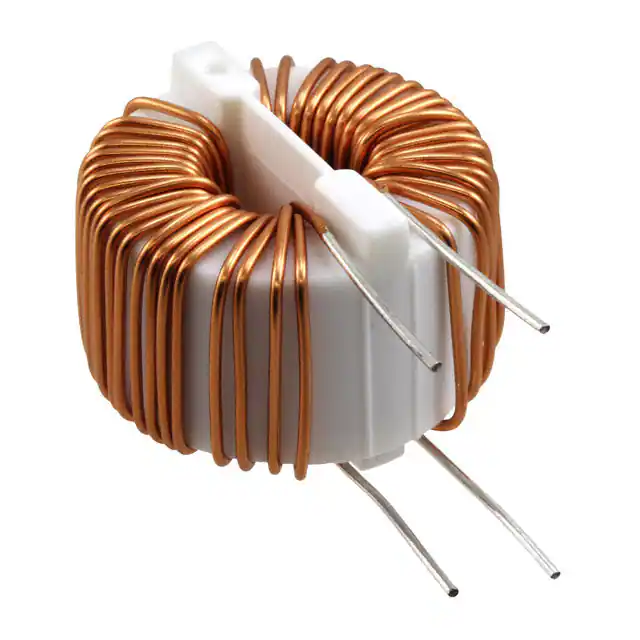

SC-05-300CMC 3MH 5A 2LN TH |
2,696 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-1503CMC 10.5MH 5A 2LN TH |
2,948 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-15-07JCMC 702UH 15A 2LN TH |
1,151 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 702 µH @ 100 kHz | 15A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-09-209JHCMC 2.09MH 9A 2LN TH |
3,911 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.09 mH @ 10 kHz | 9A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-15-12J-MICMC 1.2MH 15A 2LN TH |
3,100 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 15A | 6.2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-800NMC 250.0UH 5.0A 0.0600 OHM TH |
2,770 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 250 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-09JCMC 900UH 15A 2LN TH |
3,549 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-06-462JHCMC 4.6MH 6A 2LN TH |
4,435 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.6 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

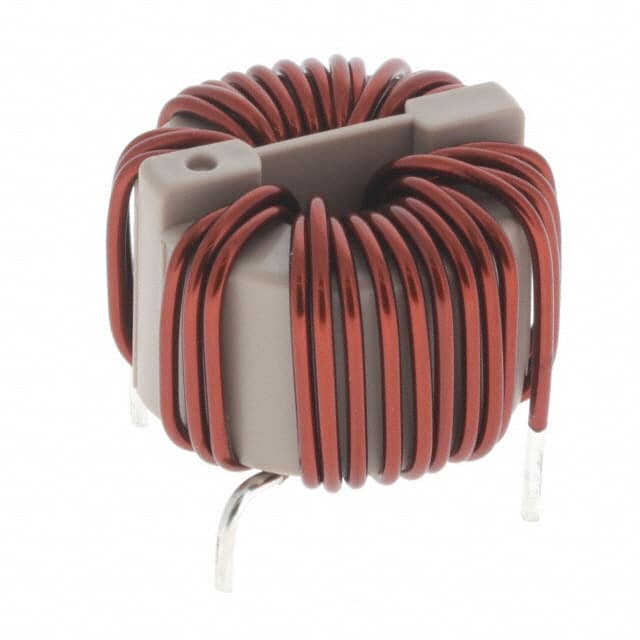

SC-15-E110HCMC 1.1MH 15A 2LN TH |
1,049 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 15A | 16.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
