Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

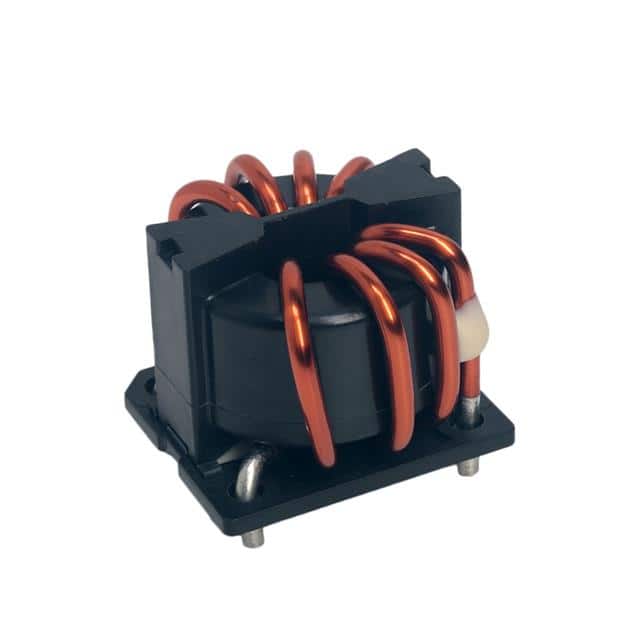

SCF25XV-350-2R4A003JHCMC 220UH 35A 2LN TH AEC-Q200 |
4,405 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-120-1R6A017JHCMC 3.2MH 12A 2LN TH AEC-Q200 |
4,389 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 100 kHz | 12A | 6.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-12-100JHCMC 10MH 12A 2LN TH |
3,723 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 12A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF47B-400-1R8C040JCMC 4MH 40A 2LN TH |
2,633 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
PHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
1,011 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS20H-R10100CMC 10MH 1A 2LN TH |
1,302 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11VL-R08125CMC 12.5MH 800MA 2LN TH |
2,120 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10H-08082CMC 8.2MH 800MA 2LN TH |
4,883 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 800mA | 640mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS17HB-R05140CMC 14MH 500MA 2LN TH |
4,707 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 500mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

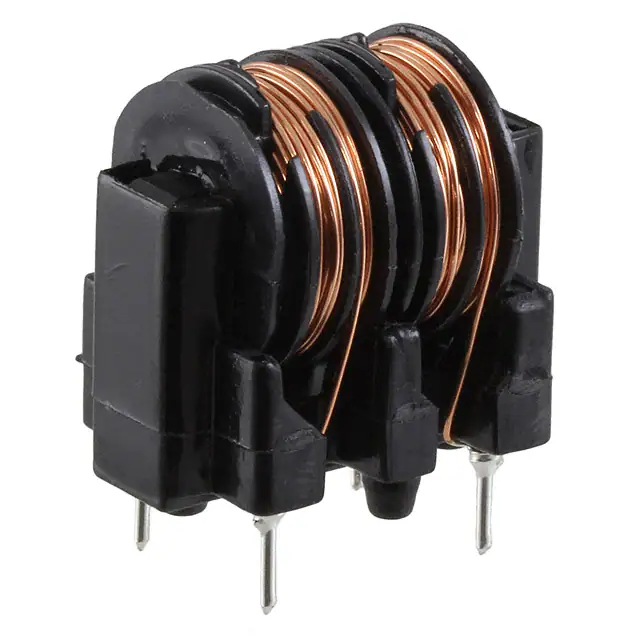

SS11V-11050-CHCMC 5MH 1.1A 2LN TH |
3,123 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
